How do you wire a garage door opener sensor?

Strip 7/16-inch of insulation from each solid-white and white-with-black-stripe wire on both sensors. Twist together the two white-with-black-stripe wires from both sensors. Twist together the two solid-white wires from both sensors. Connect the two white-with-black-stripe wires to screw terminal 3 on the motor unit.

.

People also ask, how do you wire a garage door without a sensor?

How to Bypass Garage Door Sensors

1. Step 1: Stop the Power Supply. The first rule of bypassing garage door sensors is not related to sensors.
2. Step 2: Find the Sensors and Remove them. If you check the garage door, you will find that both sides of the garage door have sensors.
3. Step 3: Cut the wires and Install the New Sensors.

Similarly, can you bypass garage door sensor? If your sensors or garage door motor is blinking or your door doesn't close, it's a sign you could have faulty sensors. Luckily, you can set most automatic garage doors to a manual mode to bypass the sensors. You can also disconnect the sensors altogether, but doing this will prevent most garage doors from working.

Subsequently, question is, can you splice garage door sensor wire?

Garage Door Safety Wire Repair: Butt Splice Connection The wire splice repair is made as follows: Trim off the damaged wire leads at the garage door safety sensor. You may need to make a small knife cut lengthwise between the two wires to get a grip and pull the wires apart. Do not strip the wire insulation.

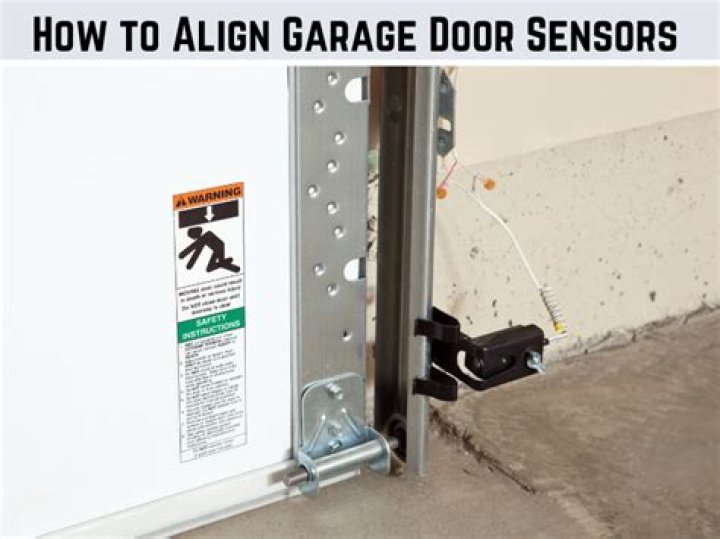

Should both sensors on garage door be green?

Look at the sensors, there should be a light on each sensor. If not one of them has probably been bumped or kicked. They should both be green. Just eye them up to look at each other until the lights both come on strong and steady.

Related Question Answers

Are garage door safety sensors universal?

All garage door sensors work the same way and serve the same purpose. There are several different brands of sensors. Some models are advertised to be universal, which means a specified unit will be compatible with garage door openers associated with names such as LiftMaster, Chamberlain, Craftsman, and others.

How do you test a garage door sensor?

1. Measure the height of your garage door sensors.
2. Place the box in the garage doorway, making sure the box is in front of the garage door sensors.
3. Look at both the garage door sensors.
4. Open the garage door and remove the crushed box.
5. Clean the lenses with a soft cloth.
6. Test the door with another cardboard box.

Are all garage door sensors the same?

Are all the garage door openers using the same sensors? There is no brand of garage door opener that uses the same sensors as another. If they do then they are both made by the same company even if they have different brand names on them.

How do you wire a liftmaster garage door sensor?

Strip 7/16-inch of insulation from each solid-white and white-with-black-stripe wire on both sensors. Twist together the two white-with-black-stripe wires from both sensors. Twist together the two solid-white wires from both sensors. Connect the two white-with-black-stripe wires to screw terminal 3 on the motor unit.

How do I know if my garage door sensor is bad?

If the door goes up but goes down only when you hold down the wall switch, check to see that the safety sensors are in alignment. The small light on each sensor should be lit up when nothing is between them. Door sensors do go bad, so if no light is showing at all, you may need to replace them.

How many wires do you need for a garage door opener?

How to wire the door control for a garage door opener. Determine if you have a Security + 2.0 opener and if you have the plug-in terminals or the screw terminals on your unit. Use a 2 conductor 22 gauge bell wire for this task.

Are garage door wall buttons Universal?

Open and close your garage door with ease from inside the garage, thanks to the Genie Universal Wall Button. This non-lit door wall button is universally compatible with most major garage door opener brands and can be used in addition to any existing wall button or wall console.

Can I use a doorbell as a garage door opener?

Similar to a doorbell switch, a push-button garage door switch sends a signal to the door opener to raise or lower the door. If the switch isn't operating the door properly, you can diagnose the problem and replace a wall switch to a garage door opener in a few minutes with some common hand tools.

What gauge wire do I use?

Why Wire Gauge Is Important

Wire Use	Rated Ampacity	Wire Gauge
Low-voltage lighting and lamp cords	10 amps	18-gauge
Extension cords (light-duty)	13 amps	16-gauge
Light fixtures, lamps, lighting circuits	15 amps	14-gauge
Kitchen, bathroom, and outdoor receptacles (outlets); 120-volt air conditioners	20 amps	12-gauge

How much does it cost to replace garage door sensors?

According to the national average, new sensor replacement can start at anywhere from $150 - $200. With Puls, garage door cable replacement or repair starts at just $90.
