How do you wire a fuse box in a boat?

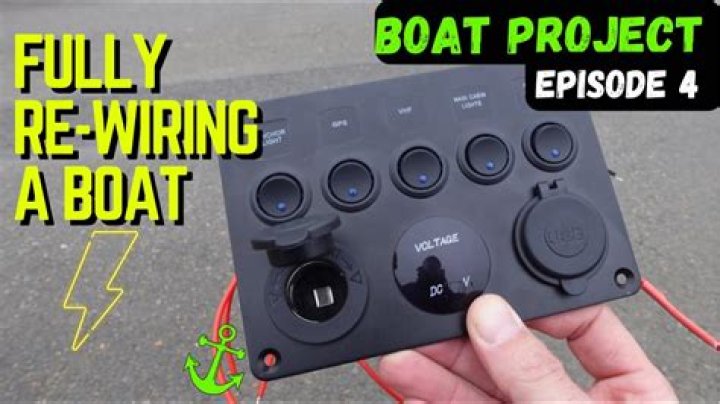

VIDEO

.

Keeping this in consideration, how do you wire a boat console?

1. The Electrical Source: a Battery. In a boat, electricity is stored in one or more batteries.
2. Main Battery Switch.
3. Battery Switch Bypass Loads (Bilge Pump, etc)
4. Get the Source to the Boat's Helm.
5. Install Terminal Block as Breakout Point.
6. Run Load Wiring to the Terminal Block and Buss Bar.

Additionally, how do you ground an electrical boat? The ground connection is usually made by clamping to a metal water pipe or by driving a long copper stake into the ground. On a boat, things are considerably more complicated. In addition to the AC ground, we need a DC ground or return line, a lightning ground, and a RF ground plane for the radio systems.

In this way, what size wire should I use to wire my boat?

The ABYC recommends wire conductors of at least 16-AWG (gauge) for lights and other similar equipment. That's minimum, and heavier gauge isn't much more expensive — and generally no more trouble to install. We suggest you use 12- or 14-AWG to minimize your voltage drops, or more if the manufacturer suggests it.

Can 10 gauge wire handle 40 amps?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

Related Question Answers

Why is white wire hot?

Hot: The black wire is the hot wire, which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire. Like the neutral wire, the ground wire is also connected to an earth ground.

What is the difference between marine wire and regular wire?

Most importantly, marine wire is larger for a given gauge size, up to 12% larger in some sizes. The fine stranding makes the wire very flexible, allowing it to better survive in a moving, vibrating boat, while the tinned strands provide additional corrosion protection.

How do you pull cable through conduit?

Pulling Wire With a Fish Tape

1. Feed the end of the tape, which has a hook on it, into the same end of the conduit that you will pull from.
2. Push the tape through the conduit, unwinding from the spool as you go.
3. Strip insulation from the end of each wire, using wire strippers.

How much does it cost to rewire a boat?

Most shops charge $90-$110 an hour. If you figure only one day wiring that would be about $800 labor, and to rewire a boat I'd say two weeks unless you find a genius not counting materials.

How does a terminal block work?

Terminal blocks are connectors that terminate a single wire and connect it to a circuit or other system. Another terminal type are terminal blocks with screws for holding an inserted cable on one end and a plug on the other end so that the block can be inserted into a female connector (this allows for hot-swapping).

How many wires can be in a junction box?

Counting Wires in Electrical Boxes Each switch, outlet, or other device counts as two wires.

Why do boats have two batteries?

The primary reason to use two batterys is to have to ability to hold one in reserve in case of difficulties on the water. Many boats are set up with two battery systems that use a "starting" battery and another battery sometimes called a "house" battery, or the "electronics" battery; it may go by other name.

How does a battery switch work on a boat?

What is a Marine Battery Switch? These switches transfer batteries without reconnecting your wires each time you drain one battery. This is very useful in keeping the battery that you run your boat with, fully charged while out on the water, especially if you have a lot of battery powered items on board your boat.

What is a Perko switch?

Battery disconnect switches help manage the overall use of electrical power on-board. They are used to connect or disconnect electrical devices from the electrical system. They help to prevent battery drain during periods of inactivity. Perko battery switches are designed for surface mounting.

What does a marine battery isolator do?

Battery Isolators are commonly used to maintain the starting battery charge while using a second battery to power accessory items (sound systems, refrigeration, emergency lights, computer equipment, etc.) eliminating the fear of having a dead battery when trying to start the engine.

How do you wire multiple lights to one switch?

You run another 12/2 or 14/2 cable from the top of the switch box to the first light. You connect the black wire to the switch. You connect the 2 white wires together, and then connect the other terminal on the switch to the black wire of the cable leaving this junction box towards the first light.

Should I turn my boat battery off?

Turning off the boats motor will not prevent the battery from draining. Instead, you could look at using a charger that will help keep the battery fully charged. If you plan on storing your boat for a few weeks, disconnect the battery and make sure it has a full charge.

How do I know if my boat fuse is blown?

In some cases you may need a small screwdriver to unscrew the fuse holder cap. Look at the fuse wire. If there is a visible gap in the wire or a dark or metallic smear inside the glass then the fuse is blown and needs to be replaced. If you cannot see whether the fuse is blown, follow steps 4 and 5.

How do you test 12 volt wires?

How to Use a 12-Volt Circuit Tester

1. Turn on the vehicle's electrical power. The accessory position on the ignition switch powers up everything except the engine ignition circuit.
2. Connect the ground clip of the 12-volt tester to a well-grounded source.
3. Place the pointed end of the tester on or in the circuit terminal or wire to be tested.
