How do you test for earth continuity?

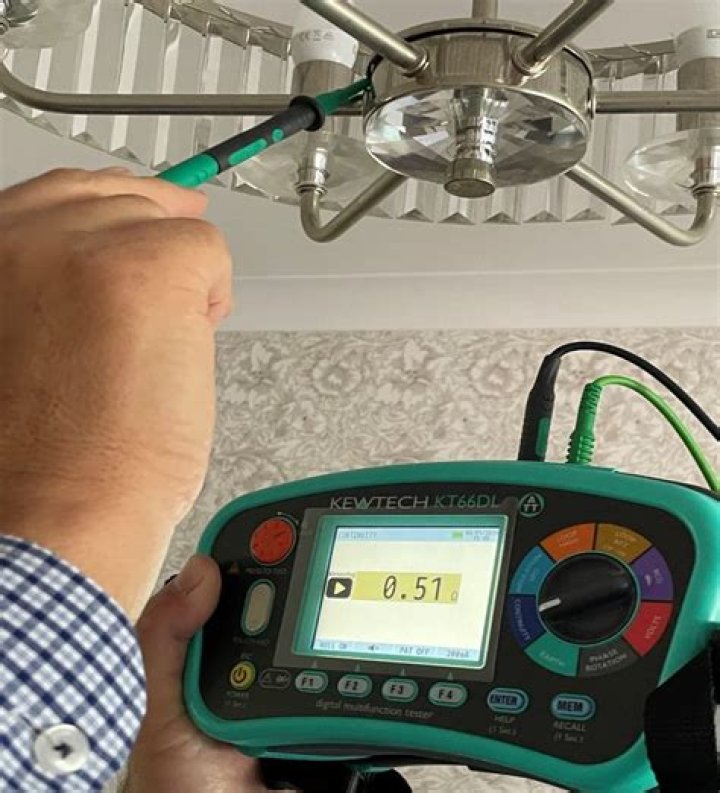

The earth continuity test passes a test current along the earth cable from the pin of the plug to the contact point on the appliance. The appliance tester then measures the resistance of that connection. If the earth connection is damaged, non-existent or corroded then the earth resistance reading will increase.

.

In respect to this, how do you test a cable continuity?

How to test for continuity

1. Turn the dial to Continuity Test mode (
2. If required, press the continuity button.
3. First insert the black test lead into the COM jack.
4. Then insert the red lead into the VΩ jack.
5. With the circuit de-energized, connect the test leads across the component being tested.

what is the purpose of bonding? The NEC defines bonding as, "The permanent joining of metallic parts to form an electrically conductive path that ensures electrical continuity and the capacity to conduct safely any current likely to be imposed." As it relates to a communications system, the primary purpose of bonding is to equalize ground potential

Likewise, people ask, how do you test for earth faults?

Step 1: Locate the furthest point on the circuit to be tested (such as the furthest socket) Step 2: With the appropriate Earth Fault Loop Tester, connect the test leads to the Line, Neutral and Earth terminals. Step 3: Measure and write down the test results on the Schedule Of Test Results.

Why do we test continuity?

A continuity test is an important test in determining the damaged components or broken conductors in a circuit. It can also help in determining if the soldering is good, if the resistance is too high for flow of current or if the electrical wire is broken between two points.

Related Question Answers

How many ohms are required for proper earthing?

5.0 ohms

What is the acceptable earth resistance value?

Unfortunately, there is not one standard ground resistance threshold recognized by all certifying agencies. The NFPA and IEEE recommend a ground resistance value of 5 ohms or less while the NEC has stated to “Make sure that system impedance to ground is less than 5 ohms specified in NEC 50.56.

How do you test a ring main?

The Ring Circuit Test sequence:

1. Within the distribution board, remove the Line, the Neutral and the Earth conductors from its terminals.
2. Select the low reading ohm meter function and null the tester.
3. Measure between Line to Line to get the reading for “r1”
4. Measure between Neutral to Neutral to get the reading for “rn”

What is CPC earth?

The circuit protective conductor (increasingly called the 'c.p.c.') is a system of conductors joining together all exposed conductive parts and connecting them to the main earthing terminal. Strictly speaking, the term includes the earthing conductor as well as the equipotential bonding conductors.

What is the symbol for continuity?

Continuity: Usually denoted by a wave or diode symbol. This simply tests whether or not a circuit is complete by sending a very small amount of current through the circuit and seeing if it makes it out the other end.

Can you test continuity on a live circuit?

Now, we'll tackle the second-most common use of a multimeter in a car—measuring resistance and verifying continuity. You can measure the voltage and the current of a live circuit and use those figures to calculate the resistance (Ohm's Law), but you can't actually measure the resistance of a live circuit.

What does OL mean on a multimeter?

open loop

What are the symbols on a multimeter?

If you need to measure alternating current in a circuit, different multimeters have different symbols to measure it (and the corresponding voltage), usually "ACA" and "ACV," or "A" and "V" with a squiggly line (~) next to or above them.

Why Megger test is done?

The Megger test is a method of testing making use of an insulation tester resistance meter that will help to verify the condition of electrical insulation. The IR gives a measure of the enduring power of an insulator to bear the service voltage without any current leakage path.

How do you test for a short circuit?

How to Find a Short With a Multimeter

1. Turn the multimeter settings knob to "continuity." The continuity setting is indicated by a small microphone symbol.
2. Place the negative multimeter probe, the black one, on one end of the wire you want to test for continuity.
3. Look at the monitor on the multimeter.

What causes an earth fault?

Earth faults may occur for a number of reasons. For example, a fault to earth in PV cabling systems may arise due to insulation damaged during installation, subsequent impact or abrasion damage to the cable sheath, or vermin damage.

What causes a neutral fault?

So a Neutral to Earth Leakage fault is when a fault develops and the neutral and earth are connected together sufficiently to cause a current flow out of the neutral conductor and into the earth (or visa versa).

What is Zs and Ze?

Ze = is the external loop impeadance (from the suppler side of the consumer unit back to the transformer) Zs = is the system loop impeacence (ie the circuirt from the cunsumer unit out to the sockets / lighting etc) R1 = resistance of phase conductor ie Live. R2 = resistance of cpc ie earth.

What is a Ze test?

`Ze` is a measurement of the external earth fault impedance of the installation. It is the measured resistance of the supply transformer winding, the supply phase conductor, and the erath return path of the supply. `Ze` can be obtained by enquiry to the electricity supplier or by direct measurement at the supply.

How do you perform a loop test?

Nested Loop

1. Set all the other loops to minimum value and start at the innermost loop.
2. For the innermost loop, perform a simple loop test and hold the outer loops at their minimum iteration parameter value.
3. Perform test for the next loop and work outward.
4. Continue until the outermost loop has been tested.

What is insulation resistance?

The insulation resistance is the resistance in ohms of wires, cables and electrical equipment. It is important to guard against electric shocks and avoid equipment damage from accidental discharges. The method of measuring the insulation resistance is to test and assess the state of the isolation (head and body.)

How does an RCD work?

An RCD protects by constantly monitoring the current flowing in the live and neutral wires supplying a circuit or an individual item of equipment. Under normal circumstances, the current flowing in the two wires is equal. To be effective, the RCD must operate very quickly at a low earth leakage current.
