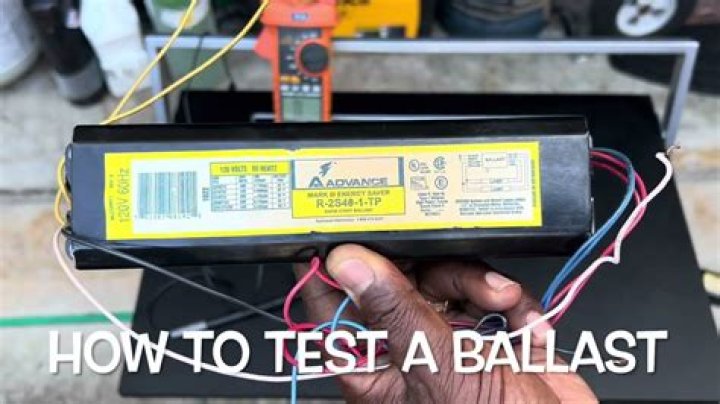

How do you test an electronic fluorescent ballast?

Set the multimeter to the ohm setting. Choose "X1K" if there are multiple ohm settings on your multimeter. Insert one probe of the multimeter in to the wire connector holding the white wires together. Touch the remaining probe to the ends of the blue, red and yellow wires leading from the ballast.

.

Also to know is, is there a way to test a fluorescent ballast?

To determine the problem, you'll need to first test the ballast. Using your Multimeter, test the high voltage side for continuity between the wires that go to the tombstones. Typically, there is either one or two wires that go to each fixture.

what causes a ballast to go bad? Causes of Ballast Failure When it's too hot or too cold, the ballast can burn or fail to start your lamps at all. Heat combined with prolonged condensation inside an electronic ballast can cause corrosion. Some people may suggest removing the parts of the ballast casing and cleaning the electrical board.

Secondly, what should you use to check voltage in a ballast?

Test the ballast's voltage with a multimeter. Attach the multimeter's leads to the sockets at the ends of the ballast. If the reading is not between five and nine volts, replace the ballast. Adjust the multimeter to measure frequency and replace the ballast if the reading is not between 20 and 50 kilohertz.

What are the signs of a bad ballast?

If your fluorescent lighting is displaying any of the signs below, it could be a symptom of a bad ballast:

• Flickering.
• Buzzing.
• Delayed start.
• Low output.
• Inconsistent lighting levels.
• Switch to an electronic ballast, keep lamp.
• Switch to an electronic ballast, switch to a T8 fluorescent.

Related Question Answers

How much does a ballast cost?

A replacement ballast costs about $10-25 depending on capacity and brand. The bite is that an electrician trip charge (which includes 30 or 60 minutes work) is going to be $75-150 probably - for about 5 minutes work on each light fixture.

How do I know if my ballast is t8 or t12?

This will reveal a lot about your current fluorescent tube and usually indicate if the bulb is T8 or T12. If no markings are available, the size in diameter of the tube is the easiest way to determine the type you have installed. T8 tubes are 1-inch in diameter and T12 tubes are 1 1/2 -inch.

Can a bad ballast cause a breaker to trip?

It's possible that the ballast has gone bad!! If the primary winding in the ballast goes bad they almost always trip the breaker, unless there is a fuse installed just ahead of the ballast. After checking all of the wiring, as you have been directed to do, the last chip is a bad ballast.

Do I need to remove the ballast to use an LED bulb?

LED technology does not require a ballast to regulate the amount of energy flowing to the lights. Additionally, removing the ballast will reduce energy usage and result in even great cost-savings as ballasts continue to draw more power than necessary.

How long does a ballast last?

about 20 years

Why do electronic ballasts fail?

A ballast, like any electrical device, generates heat. To ensure maximum ballast life, it is imperative that operating temperatures be kept as low as possible. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, resulting in premature failure.

What is the output voltage of a fluorescent ballast?

The label on the ballast shows two important labels. Fluorescent lamps use a ballast which transforms line voltage to a voltage to start up and operate the lamp(s). Newer fluorescent ballasts are usually rated for both 120 volts and 277 volts.

Why won't my fluorescent light come on?

A dead fluorescent can be caused by lack of electrical power (tripped breaker or blown fuse), a dead or dying ballast, a dead starter or a dead bulb(s). Check for power first then the starter (if applicable) and then the bulbs. When all else fails, the ballast should be replaced.

Can a bad ballast burn out bulbs?

Every ballast has an ambient operating temperature range and UL location rating. When it's too hot or too cold, the ballast can burn or fail to start your lamps at all. Heat combined with prolonged condensation inside an electronic ballast can cause corrosion and ballast failure.

How does a ballast work?

In a fluorescent lighting system, the ballast regulates the current to the lamps and provides sufficient voltage to start the lamps. Without a ballast to limit its current, a fluorescent lamp connected directly to a high voltage power source would rapidly and uncontrollably increase its current draw.

How can you tell if a fluorescent bulb is blown?

How to Tell If Fluorescent Bulbs Are Blown?

1. Flip the switch and wait a few seconds.
2. Turn the fluorescent bulb clockwise to see if it's firmly seated in the socket.
3. Check your circuit breaker box and confirm that the corresponding breaker is firmly in the "on" position.
4. Change out the fluorescent bulb with a new one.

How do you test a fluorescent starter?

How to Test Fluorescent Starters

1. Turn the power off.
2. Starters correspond to the wattage of the fluorescent bulbs they run.
3. Remove the old starter by pressing in and turning it counterclockwise.
4. Replace the new starter in the socket by pressing inward and turning clockwise.

Are fluorescent lights AC or DC?

Fluorescent lamps are (almost) never operated directly from DC for those reasons. Instead, an inverter converts the DC into AC and provides the current-limiting function as described below for electronic ballasts.

What causes a fluorescent light to flicker?

When you turn on the light switch, the starter sends a jolt of electricity to the gas inside the fluorescent bulb. (Flickering can also indicate the bulb needs replacing, but try the less expensive starter first.) Replacing the starters is quick and easy—they simply twist in and out.

How do you check the voltage on a fluorescent light fixture?

How to Do a Voltage Test for Fluorescent Fixtures

1. Turn off the power to the circuit that powers the fluorescent fixture.
2. Remove the fluorescent light bulb from the fixture.
3. Detach the cover that protects the ballast.
4. Turn the setting on the multimeter to "Ohms." Touch one probe to the white wire and the other to a colored wire.
