How do you test a tilt trim motor?

To test the motor itself, bypassing the relays and relay wiring, find the two heavy gauge wires that lead to the trim/tilt pump motor. One should be green and the other blue. You will probably be able to find a quick disconnect plug near where the wires exit the outboard engine cover that you can disconnect.

.

In this regard, why is my tilt and trim not working?

If the motor operates, then the problem is a lack of power to the motor (faulty solenoid or relay, bad connections, etc.). Failed solenoids, relays and corrosion (at connections, relay sockets, quick-disconnect plugs, etc.) are some of the most common problems associated with tilt and trim system failure.

Likewise, how do you manually trim an inboard motor? How to Manually Raise an Inboard Outboard Motor

1. Turn the engine off.
2. Reach to the back of the engine housing to the back transom -- the very back edge of the boat.
3. Stand at the back of the boat and have an assistant stand to the other side.
4. Push the lock pins you unscrewed from the motor through the trim settings in the cowling area.

Consequently, what is tilt and trim on outboard?

Most boats handle best when running parallel with their at-rest waterline. Accordingly, outboards and sterndrives feature a power trim adjustment that allows you to change the engine's angle of thrust by tilting it "out" or "in" in relation to the transom in order to maintain the proper running angle.

How do you get air out of tilt and trim?

Then trim the motor up and down, try to add a little more fluid and trim it up and down again. Do this several times to bleed all the air out of the system, and then put the hydraulic fluid fill screw back in, wipe off the excess fluid and your power tilt and trim should work.

Related Question Answers

How do you troubleshoot a trim gauge on a boat?

The Trim Gauge can be tested by: Disconnect the 4-wire harness connection. Power the gauge by connecting 12 vdc positive to the gray wire and a good ground to the black wire with gray stripe. Have no other wires connected to the gauge. The pointer will slowly move towards the "Up" end of the scale.

How do you bleed a tilt trim on a Yamaha?

Bleeding: OB tilt/trim units are "self-bleeding" and you should always perform these "purge cycles" to follow even if you don't need to add any more fluid. To purge/check, remove the tilt lock (if engaged) and cycle the OB down by "jogging" it down, in 2-3 seconds runs.

Should I leave my outboard motor up or down?

Should I leave my engine up or down? Simply put, if you are leaving the boat in the water, leave it in the up position to avoid growth. If you are leaving it out of the water, trim it down to drain the water and protect the Power Tilt and Trim seals from the sun.

How do you bleed trim and tilt?

Bleeding: OB tilt/trim units are "self-bleeding" and you should always perform these "purge cycles" to follow even if you don't need to add any more fluid. To purge/check, remove the tilt lock (if engaged) and cycle the OB down by "jogging" it down, in 2-3 seconds runs.

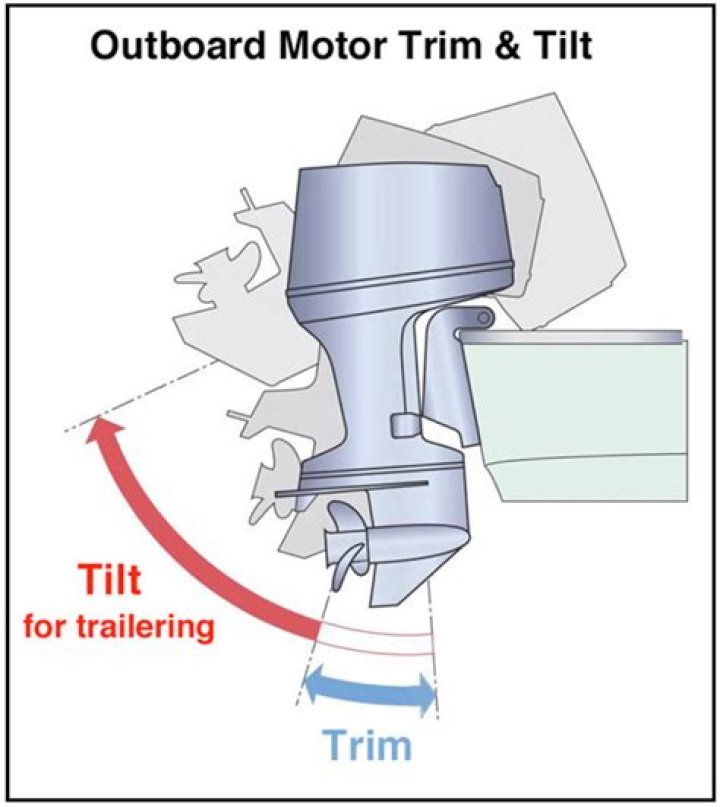

What is the difference between tilt and trim?

The difference between tilt and trim on a boat is referencing the location of the outboard or the drive of the inboard. Trimming is used when underway and goes about 20 degrees of the way up and tilting is coming all the way up for storage.

How Trim works on a boat?

Trim refers to the angle of the propeller shaft relative to the boat. When the boat is stationary and the shaft is parallel with the surface of the water, that's known as neutral trim. The prop shaft's angle is important because it directs the power from the engine.

What causes a boat motor to lose power?

You most likely have a filter problem or fouled plugs. That could be why your boat motor is losing power. Prevention: It's possible to buy a bad load of fuel, but it's more likely that the fuel went bad while in your boat. Leaving a tank near empty for long periods of time can cause condensation and water in the gas.

What does a trim limit switch do?

The Trim Limit Switch is a safety device which keeps the driver from over-trimming while under way. Trimming the drive too high while under way can cause damage, injury or death. The Trim Sender Switch is used to send a signal to the Trim Gauge so you can see the level of the drive.

How do I bypass trim limit switch?

connect the trailer wire to the limit switch wire. You should be able to disconnect the wires coming from the trim limit sender. Then jumper the two loose ends together to bypass the sender. As long as the trim indicator is working you will be able to see how far it is trimmed without worrying if it's over trimmed.

What kind of oil do you put in a tilt trim motor?

SAE 10W30 Automotive Oil A substitute for outboard tilt-trim oil is automotive oil with SAE 10W30 specification. For example, it is recommended that you use SAE 10W30 oil in older Mercruiser brand trim pumps.

How long can you run a boat motor out of water?

Run the engine for 10 minutes, or according to the manual's instructions. If you're flushing the motor, most manufacturers recommend running it for 5 to 10 minutes. If you're running the engine for another purpose, such as to test its function, run it for as long as your maintenance task requires.

What do you use for tilt and trim fluid?

For the power tilt and trim the recommended fluid is Quicksilver power trim and steering fluid #92-90100A12. If unavailable use 10W-30 or 10W-40 motor oil. I'm not aware of any white fluid, you need to make sure that you don't have any leaks letting water in and turning the oil a milky white.

What is the purpose of trim tabs on a boat?

Trim tabs do much the same thing for a boat. They provide lift in order to compensate for changes in speed, weight distribution, and water conditions. When they are deflected downward, the water force on the trim tab creates upward pressure, raising the stern and reducing hull resistance.

Why won't my trim work on my boat?

If the tilt and trim motor works fine but the engine won't raise or lower, slips down when in the raised position or won't stay trimmed, chances are that the problem is with the hydraulic pump or valve body assembly. If the level is adequate, the problem is most likely with the hydraulic pump.

What is tilt and trim on a boat motor?

Most boats handle best when running parallel with their at-rest waterline. Accordingly, outboards and sterndrives feature a power trim adjustment that allows you to change the engine's angle of thrust by tilting it "out" or "in" in relation to the transom in order to maintain the proper running angle.

How do you manually trim a boat motor?

How to Manually Raise an Inboard Outboard Motor

1. Turn the engine off.
2. Reach to the back of the engine housing to the back transom -- the very back edge of the boat.
3. Stand at the back of the boat and have an assistant stand to the other side.
4. Push the lock pins you unscrewed from the motor through the trim settings in the cowling area.
5. Close the cowling.

How do you check the trim gauge on a boat?

The Trim Gauge can be tested by: Power the gauge by connecting a 12 vdc positive wire to the "I" terminal and a ground wire to the "G" terminal. Have no other wires connected to the gauge. The pointer will slowly move towards the "Up" end of the scale.

How do you test a boat starter?

How to Tell if a Starter is Bad on your Marine Engine

1. Step 1: Turn the dial of a digital multimeter to the DC voltage setting.
2. Step 2: Set the multimeter to the DC voltage setting.
3. Step 3: Turn the ignition switch to the “Start” position.
4. Step 4: If the reading on the digital multimeter is greater than 9.5 volts, attempt to start the motor.
