Screw the Wire Nuts on the Wires With your pliers, twist together wires of the same color. Red wires attach to red wires; white wires attach to white wires; black wires attach to black wires. Twist the wires together, clockwise, with your pliers before twisting the wire nut onto them..
Thereof, is it safe to splice a power cord?
Technically, you're not supposed to splice extension cords. Even if you solder the wires, wrap each wire with electrical tape and encase the whole splice in heat shrinkable tubing, it still won't have the abrasion resistance of a new cord. Plus, it's not permissible under the National Electrical Code.
Similarly, what is a stress cone? Stress Cones. Description: Stress cones are a means of preventing insulation failure at the termination of a shielded cable caused by the high concentration of flux and the high potential gradient that would otherwise exist between the shield termination and the cable conductor.
Moreover, what is an in line splice?
Inline splices is where you take two pieces of wire, and join them in a nearly seamless extension of wire.
Why is cable termination required?
Transmission lines Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.
Related Question Answers
Can you splice 3 wires together?
Splicing three or more wires together The pigtail type of splice is best when joining three or more wires. The thing to guard against when more than two wires are involved in the twist is the tendency for one or more of the wires to remain fairly straight while the others are wrapped around it.How do you splice high voltage cables?
How to Splice High Voltage Cable - Turn off any electrical power to the cables to be spliced together.
- Strip away three inches of the outer insulation on the end of each of the electrical cables to be spliced together.
- Strip away one inch of the insulation on each wire inside the cables.
Can you extend plug socket wiring?
The easiest way of connecting into a ring circuit is to run a spur cable from the terminals of an existing socket – but you can't connect it to any socket. An alternative to running a spur from an existing socket is to run it from a 3-terminal, 30-amp junction box wired into the main circuit cable.Can electrical tape catch fire?
Even though most of the reputable brands produce electrical tapes with good thermal properties that can handle temperatures around 80 degrees Celsius, electrical tapes are likely to catch fire if they get very hot. The chances of combustion are reasonably low when the tape is used properly and in the right environment.Can you splice a lamp cord?
The pigtail splice is most often used when wires are joined inside an electrical outlet box, or inside a junction bo where wires come together in an electrical appliance. It is aiso ine correct splice to be used when lengthening extension cords, lamp cords and other appliance cords by adding a piece to one end.Can electrical tape melt?
Electrical tape may not have a clear melting point but a glass transition temperature or smoke point instead. Tape is usually made of a mixture of polymers and the cheap stuff is mostly vinyl. In general I would use the service temperature supplied by the manufacturer rather then try to melt the tape.Can you splice a vacuum cord?
For any areas along the cord where the wires were cut by the roller of the vacuum cleaner, you can either choose to splice the wires together, or you can cut the cord off and replace the plug on the end. To splice the wires together use these steps: cut the damaged area out of the cord using sharp scissors.Can you splice a laptop power cord?

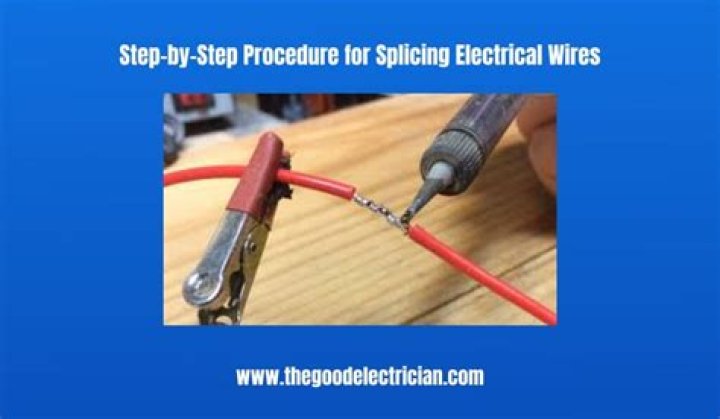

4 Answers. You can repair the cable by cutting out the chewed section. Solder and shrink wrap the middle cable first then solder and shrink wrap the outer cable next. It wont fail you if done right.Can you put a junction box underground?
You can't bury a junction box - it has to remain accessible. The usual thing to use is a handhole - like a box where the lid is flush with the ground. You could get a handhole as small as 12" x 12".Can you splice an Internet cable?
How to Splice Ethernet Cables. The splicing should only take a few minutes, after which the new cable should carry data across the network just as easily as either of the cables it was made from did previously. Two or more sections of Ethernet cable can be spliced to create a longer cable.How do you fix a broken electrical wire in the ground?
Use two special underground splice kits (sold at home centers) to connect the new cable section. Slide the heat shrink tube over one end of the cable, then connect the wires to the brass connector (Photo 1).Can you solder phone lines?
Twist each wire with the wires you are connecting it to. If you have access to a soldering iron you should solder them together. Individually tape each connection . If you have electrical tape (black plastic tape) on hand use this, otherwise any tape can be used for a TEMPORARY fix.Can you splice wires inside a wall?
Spliced wires are not to be held together with electrician's tape. Electrical wires are never left on their own in the wall cavity or ceiling. Instead, all splices must be contained within a junction box and the individual wires attached with wire nuts.How many wires can be in a junction box?
Metal and other material boxs fill is based on the box size in cubic inches and the required space for each conductor size. #14 wire require 2 cubic inches each. All the grounds together count as 1 wire. In your case, 6 cables with 2 wires each plus a ground requires a box that is big enough for 13 #14 wires.
