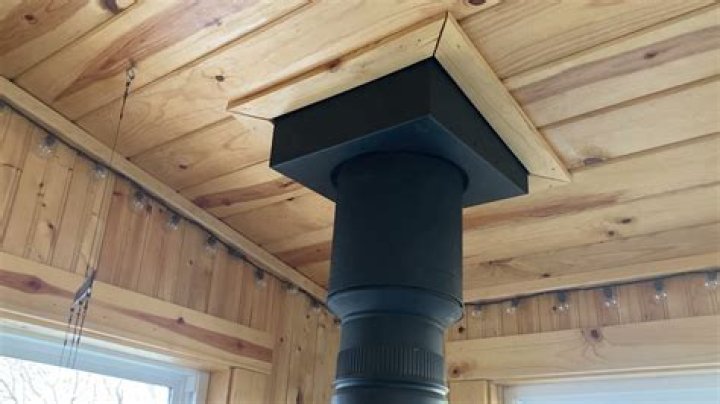

How do you run stove pipe through ceiling?

Chimney Pipe Installation for Wood Stove Through a Flat Ceiling

Step 1: Locating the Center Point for the Chimney Pipe.
Step 2: Locating Where to Cut the Hole Through the Roof.
Step 3: Marking and Cutting the Hole on the Roof.
Step 4: Installing the Adjustable Roof Flashing for Chimney Pipe.
Step 5: Installing the Insulated Double Wall Chimney Pipe.

Regarding this, which way does stove pipe go?

A fairly common point of confusion for many stove owners is understanding which direction the crimped end of the stove pipe is supposed to go - toward the stove (down) or toward the chimney (up).

Likewise, how high does my stove pipe need to be? The top of a chimney pipe must extend at least 2 feet above the peak of the roof, if the pipe is within 10 feet of the peak. If the pipe is farther than 10 feet from the roof peak, it must be 2 feet above the highest point of the roof within 10 feet.

Also Know, how do you seal a stove pipe joint?

Sealing. Use stove pipe cement or caulking material rated for use with a wood stove. The cement must be able to withstand high temperatures. Clean the area with a wire brush prior to sealing to remove any rust or debris.

What kind of pipe do you use for a wood stove?

Single-wall stove pipe is used on standard wood stove installations. It should be at least 24-gauge sheet metal or thicker -- the lower the gauge, the thicker the metal. Typical code requires that single-wall stove pipe maintain at least an 18-inch clearance from any combustible material.

Can I vent a wood stove through the wall?

The first is “through the wall.” A through-the-wall installation is where you route the stovepipe coming from the stove to the wall, where there may be an existing chimney. Many houses have a masonry (brick or block) chimney in place that you can “tap into” to vent a woodstove.

How far should a wood stove be from the wall?

Wood frame walls covered with dry wall are considered combustible. If no wall protection is used, the common radiant-type stove or heater must be spaced out at least 36 inches from the wall. This distance may be reduced considerably if asbestos millboard and/or 28 gage sheet metal is used for wall protection.

How high does a chimney need to be for a wood stove?

The chimney should extend at least 3 feet above the roof surface it penetrates and 2 feet higher than any roofline or other obstacle within a horizontal distance of 10 feet. Taller chimneys make more draft, but chimneys exposed to outside cold don't.

Can I use single wall stove pipe outside?

It's more than just a question of "touching", and single-walled pipe may have clearance requirements of 18 inches. Having said that, single-walled pipe is probably not a good choice for the outside chimney.

Do I need a damper in my stove pipe?

Modern stoves usually do not need a damper. the air flow through the stove.It will also slow down the heat loss out of the flue. If closed down too much it will build creosote in the stack.

How do you cut a stove pipe straight?

If single wall, the pipe can usually be opened up and laid flat for a clean cut with straight shears (yellow handle or big straight shears). If the pipe is round you need to use both the red and green shears to cut a strip out of the pipe.

How do you crimp a stove pipe?

Crimping reduces the diameter of the pipe by creating triangular-shaped ridges that pull metal toward the center of the pipe.

Lay a length of stovepipe flat on the floor, with the open longitudinal seam facing up.
Release the lock from a 5-blade crimper to open its jaws.

Can you connect single wall to double wall stove pipe?

Yes , there is a stove pipe adapter that fits single to double and can be done. This adapter should be in the double wall class of pipes as to be found.

Can you cut stove pipe?

Although you can cut the stovepipe to length before it is assembled, it is often easier to cut the stovepipe after it has been put together. One tool will cut the stovepipe quickly in one step, eliminating the need to use multiple tools to drill a starting hole and then make the cut.

Does a chimney have to be straight?

If it is a manufactured flue it must be installed according to the manufacturer's instructions. An ideal fireplace flue would be straight, but NFPA 211 allows a flue to offset no more than 30°. In Canada a flue may offset by 45°.

Why does my stove pipe leak smoke?

If your stove has adequate draft from the front and the flue vent is open but the stove still leaks smoke, it might be because the stovepipe is dirty. Dirty pipes can cause the flue vent to stick or clog.

Can you use foil tape on stove pipe?

Sheetmetal flue pipes, on the other hand, carry combustion gases from the furnace or the boiler to the chimney. Fiberglass ducts require an aluminum foil tape, while sheetmetal ducts are sealed with metal-foil tape, professional-grade duct tape or mesh-reinforced mastic.

How do you seal a flue?

Vacuum around the seal to remove any residue dust and fire cement pieces etc. Ensure that the stove lid and collar, as well as the flue pipe, is protected before you apply the new fire cement. Use masking tape around the top and bottom of the seal so that the fire cement can be applied with a neat straight edge.

How hot does a wood stove pipe get?

110 to 250 degrees Fahrenheit

How do you seal a wood stove seam?

Using a high temp silicone to seal seams on a wood stove is smart.

Applying it requires a few steps, but is easy to accomplish.

Step 1 - Clean the Stove.
Step 2 - Apply the Silicone.
Step 3 - Allow Time to Cure.

How do you install a wood stove pipe through a wall?

Cutting the Holes

Position the stove so the back is at least 16 inches from an outside wall.
Attach the 90-degree elbow temporarily onto one end of the long section of chimney pipe.
Locate and mark a stud in the wall at each side of the mark, using a stud finder.
Cut the outline in wood paneling, using a jigsaw.

Can I line my chimney with stove pipe?

Most masonry chimneys are made with clay tiles that line the inside of the chimney. However, in some cases you may opt for a rigid chimney liner such as stainless steel rigid, black stove pipe, or insulated chimney pipe.

Does the crimped end of stove pipe go up or down?

Yes, crimped end goes down. If you have an old stove the joint at the stove used to be made such that that one hunk of pipe could not be inserted that way.

What kind of pipe do I need for a wood stove?

Standard Single. Single-wall stove pipe is used on standard wood stove installations. It should be at least 24-gauge sheet metal or thicker -- the lower the gauge, the thicker the metal. Typical code requires that single-wall stove pipe maintain at least an 18-inch clearance from any combustible material.
