A node is a junction in the circuit. Two resistor are in parallel if the nodes at both ends of the resistors are the same. If only one node is the same, they are in series. So, R1 and R2 are in parallel and R3 is in series with R1||R2..
Simply so, what is the difference between series and parallel circuits?
A series circuit has all the components connected in series. With a series circuit, the same current flows through all the components. In a parallel circuit each leg has its own current. This is the difference between the if a light goes out the rest sat lit in a parallel circuit.
Subsequently, question is, what are the advantages of parallel circuits? Most appliances require at least 110 volts of electricity. One of the advantages of parallel circuits is that they ensure all components in the circuit have the same voltage as the source. For instance, all bulbs in a string of lights have the same brightness.
Beside above, how do you know if resistors are in series or parallel?
If the two resistors of interest have equal voltage drop across them, they are connected in parallel. If the two resistors have equal current flowing trough them, they are connected in series. Then you can also measure resistance on individual resistors and then the total resistance.
What are the advantages of a series circuit?
The biggest advantage of a series circuit is that you can add additional power devices, usually using batteries. This will greatly increase the overall force of your output by giving you more power. Your bulbs may not shine as brightly once you have done this, but you probably won't notice the difference.
Related Question Answers
What is a series circuit?
A series circuit is one that has more than one resistor, but only one path through which the electricity (electrons) flows. All the components in a series circuit are connected end-to-end. A resistor in a circuit is anything that uses some of the power from the cell. In the example below, the resistors are the bulbs.What are the three main parts of a circuit?
Simple Circuits. A circuit is the path that an electric current travels on, and a simple circuit contains three components necessary to have a functioning electric circuit, namely, a source of voltage, a conductive path, and a resistor. Circuits are driven by flows.What are the characteristics of a series circuit?
Important characteristics of a series circuit are as follows: Any break in the circuit (such as a burned-out light bulb) will render' the entire circuit inoperative. Current (amperage) will be constant throughout the circuit. Total resistance of the circuit is equal to the sum of each individual resistance.What happens to current in a parallel circuit?
A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.Where are parallel circuits used?
Possibly, the most familiar use of parallel circuits is found in lighting fixtures: if one bulb burns out, the other bulbs in the fixture continue to operate. Other uses include an electronic OR gate, where two switches are in a parallel circuit: one of the switches must be closed for the circuit to function.What is an example of a series circuit?
An example of a series circuit is a string of Christmas lights. If any one of the bulbs is missing or burned out, no current will flow and none of the lights will go on. Parallel circuits are like the smaller blood vessels that branch off from an artery and then connect to a vein to return blood to the heart.Is it better to wire speakers in series or parallel?
Series - When you wire (hook-up) speakers in Series, the speakers resistance (as measured in ohms) is additive - i.e. putting two 8 ohm speakers in Series results in a 16-ohm load. Parallel - When wiring in parallel, the resistance of the speakers decreases.What are series circuits used for?
Fuses are connected in series with the device they protect, Automatic house-heating equipment has a thermostat, electromagnetic coils, and safety cut-outs connected in series with a voltage source etc. Other appliances which uses series circuit include water heaters, well water pump, lamps, freezers and refrigerators.What happens if one bulb burns out in a series circuit?
One bulb burning out in a series circuit breaks the circuit. In parallel circuits, each light has its own circuit, so all but one light could be burned out, and the last one will still function.What does a series parallel circuit look like?

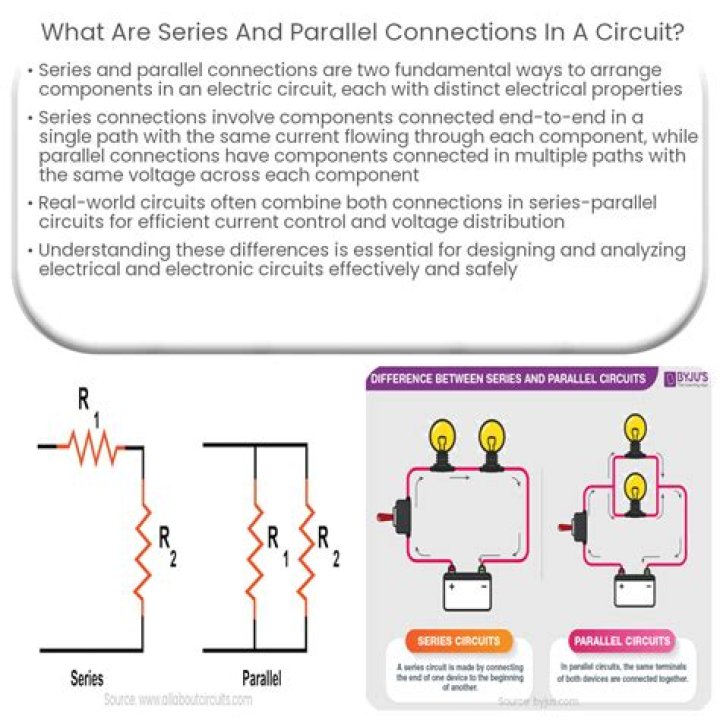

In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.How does a series circuit work?
In a series circuit, the sum of the voltages consumed by each individual resistance is equal to the source voltage. In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.Why current in series is same?
In a series circuit, the current flowing through the circuit elements is same. But the voltage drop across each element depends upon the value of resistance or reactance. The resistance opposes the flow of current through it.Do resistors in parallel have the same voltage?
Resistors in Parallel Summary The voltage across each resistor within a parallel combination is exactly the same but the currents flowing through them are not the same as this is determined by their resistance value and Ohms Law. Then parallel circuits are current dividers.What happens when resistors are connected in parallel?
Resistors in parallel - When resistors are connected in parallel, the supply current is equal to the sum of the currents through each resistor. In other words the currents in the branches of a parallel circuit add up to the supply current.What is parallel combination of resistance?
If there are more than one path for the flow of current in a circuit then the combination of resistances is called Parallel Combination. 2. In parallel combination current through each resistor is different. 3. Potential difference across each resistor is constant.How can you tell the difference between a series circuit and a parallel circuit?
While in a parallel circuit, a different amount of current flows through each parallel branch of the circuit. In the series circuit, different voltage exists across each component in the circuit. Whereas in the parallel circuit, the same voltage exists across the multiple components in the circuit.
