How do you plot model space in AutoCAD?

Plot to a scale from model space

1. From the Model tab, click the Plot button on the Quick Access toolbar or choose Output tab, Plot.
2. If necessary, choose your printer/plotter from the Name drop-down list.
3. Look in the Plot Scale section at the lower-right corner of the dialog box.
4. Uncheck the Fit to Paper checkbox.

.

Consequently, how do you use model space in AutoCAD?

On the Views tab, select the view drawing in which you want to create a model space view, right-click, and click Open. Select the view drawing again, right-click, and click New Model Space View. In the Add Model Space View dialog box, enter a name for the new model space view.

Additionally, how do I get to model space in AutoCAD 2018? To Access Model Space

1. Click the Model tab in the lower-left corner of the application window.
2. If the Model and layout tabs are hidden, set the LAYOUTTAB system variable to 1.
3. If you want to access model space from within a layout viewport on a layout tab, double-click inside the layout viewport.

Keeping this in view, how do you plot a paper space in AutoCAD?

About Printing From Paper Space

1. Create a drawing or model in model space.
2. Click a layout tab to access paper space.
3. Specify layout page settings such as output device, paper size, drawing area, output scale, and drawing orientation.
4. Insert a title block into the layout (unless you have started with a drawing template that already has a title block).

How do you plot to scale in AutoCAD?

Scale a Drawing to Fit the Page

1. Click Output tab Plot panel Plot. Find.
2. In the Plot dialog box, under Plot Scale, select the Fit to Paper option. The resulting scale is automatically calculated. The ratio of plotted units to drawing units in the custom scale boxes is displayed.
3. Click OK to plot the drawing.

Related Question Answers

What is AutoCAD model space?

There are two distinct working environments, called "model space" and "paper space," in which you can work with objects in a drawing. By default, you start working in a limitless 3D drawing area called model space. In the layout viewports, you scale the model space views relative to paper space.

What is layout space in AutoCAD?

Layout viewports are objects that display views of model space. You create, scale, and place them in paper space on a layout. On each layout, you can create one or more layout viewports. Each layout viewport is like a closed circuit TV monitor of a view of the model at a scale and orientation that you specify.

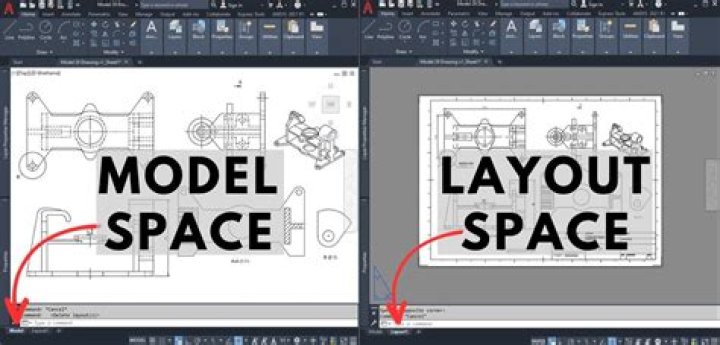

What is the difference between model and paper space?

Paper space represents a paper layout of your drawing. Each drawing has at least one Layout in which you can have one or more Layout Viewports . Such layout viewports are to be considered as a view window on your drawing in model space. Layout viewports can be placed anywere in a paperspace layout.

How do I change the scale space in AutoCAD?

To Set the Dimension Scale for Model Space Dimensions in Layouts

1. Click Drafting tab > Dimension panel > Dimension Style.
2. In the Dimension Style Manager, select the style you want to change.
3. In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features, select Scale Dimension to Layout (Paper space).
4. Click OK.
5. Click Close to exit the Dimension Style Manager.

What is the difference between layout and model in AutoCAD?

In the layout there is a difference between 'model space' and 'paper space', in model space we can move and scale the viewports. In model space, the scale of the model can be adjusted. We can now zoom and pan in the view port, but we still want to set a correct scale.

How do I plot in AutoCAD 2014?

How to Plot a Drawing in AutoCAD 2014

1. Click the Plot button on the Quick Access toolbar.
2. Click the More Options button.
3. In the Printer/Plotter section, select a printer from the Name drop-down list.
4. In the Paper Size section, use the drop-down list to select a paper size that's loaded in the printer or plotter.

How do I move a layout to a model in AutoCAD?

Move objects between model and paper space

1. Go to Home tab > Modify panel (expanded)> Change Space to start the CHSPACE command.
2. At the prompt, select one or more objects to move.
3. Press Enter to end selection and the command. AutoCAD moves the selected objects to the other space.

How do I convert AutoCAD layout to model?

To Export a Layout View to Model Space

1. At the bottom of the drawing area, click the Layout tab of the layout you want to export.
2. Right-click the tab, and select Export Layout To Model from the context menu. The Export Layout To Model Space Drawing dialog box appears.
3. Select a folder location, enter a name for your exported layout, and then click Save.

How do I create a new layout in AutoCAD 2016?

To Create a New Layout Viewport

1. Click View tab Viewports panel New.
2. In the Viewports dialog box, New Viewports tab, under Standard Viewports, select Single.
3. Click to specify one corner of the new layout viewport.
4. Click to specify the opposite corner. A new layout viewport object is available and displays a default view.

How do you use Chspace commands?

Open layout view and double click inside your viewport to activate model view. Now type CHSPACE on the command line and press enter, select object(s) that you want to move to paper space and press enter again. Your selected objects are now in paper space.

How do I print to scale?

Automatically scale to fit paper

1. Choose File > Print.
2. From the Page Scaling pop-up menu, select one of the following options: Fit To Printable Area Scales small pages up and large pages down to fit the paper.
3. Click OK or Print.

How do you print to scale a drawing?

Printing to scale allows you to measure the printed drawing to obtain the distance between points.

To print a plan view to scale

1. Select File> Print> Drawing Sheet Setup from the menu to display the Drawing Sheet Setup dialog.
2. Under the Drawing Scale option, type in the scale at which you want to print.

Why is my Autocad drawing so small?

Lines or anything drawn in autocad are seen so small. For the very first thing you should do is set your limits in autocad by typing command LIMITS after this use command Z + enter A + enter. Now you are goo to go. If it is still small for you , you can zoom right into it.

How do you plot in CAD?

To Plot a Drawing

1. Click Output tab Plot panel Plot. Find.
2. Select a plotter.
3. Select paper size, plot area, plot scale, orientation and other options.
4. For additional options, click the More Options button.

What is AutoCAD annotation scale?

Annotation scale is used to determine text height or the overall scale of an annotation object. The approach used to calculate an annotation scale depends on whether the object is placed in model space or on a layout.

How do you plot a0 in AutoCAD?

Help

1. Click the layout tab for which you want to set the plot scale to Fit to Paper.
2. Click Output tab Plot panel Page Setup Manager.
3. In the Page Setup Manager, Page Setups area, select the page setup that you want to modify.
4. Click Modify.
5. In the Page Setup dialog box, Under Plot Scale, select Fit to Paper.
6. Click OK.

How do I change the scale in AutoCAD 2007?

Select the scale tool from Modify panel of the home tab or use its command SC. Now select the window drawing and press enter. Now you need to select the base point. The base point will remain fixed when the object is scaled, in this case, I am using the lower left corner of the window as the base point.

What is AutoCAD scale?

AutoCAD 2D drawings are commonly drawn in model space at a 1:1 scale (full-size). In other words, a 12-foot wall is drawn at that size. The drawings are then plotted or printed at a plot "scale" that accurately resizes the model objects to fit on paper at a given scale such as 1/8" = 1'.
