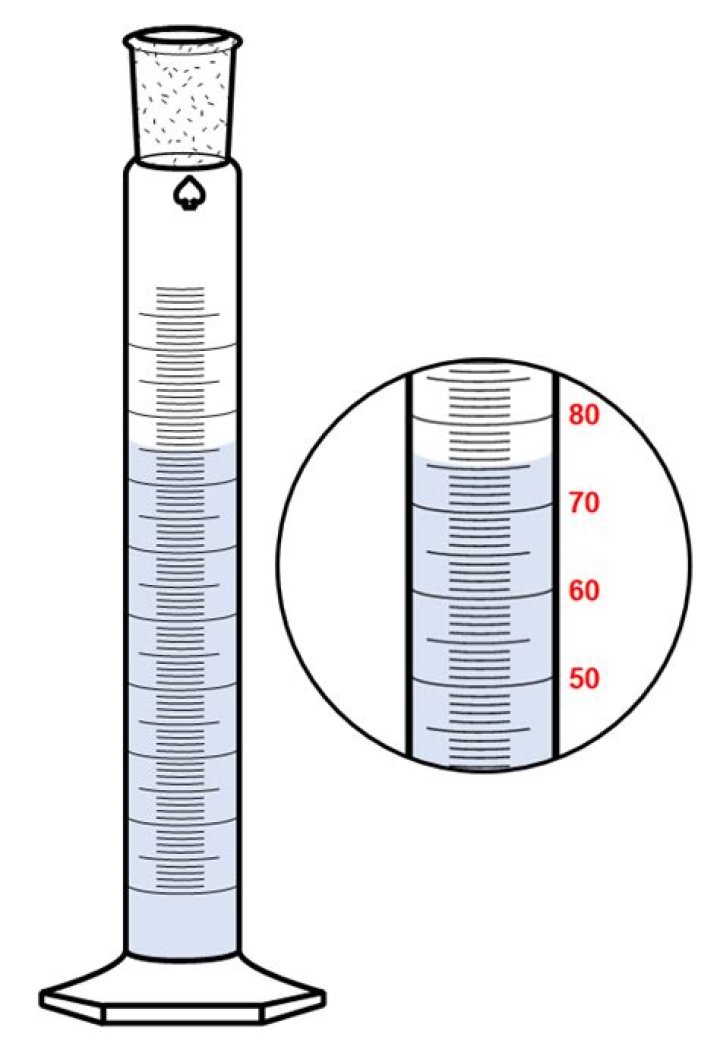

To see how much liquid is in the cylinder, hold it up to eye level. Hold it at the top so it hangs straight down. In order to use the full accuracy of the measurement possible on the cylinder, you will have to observe the bottom of the meniscus of the liquid level..
Correspondingly, what does a graduated cylinder measure in unit?
They will use a container called a graduated cylinder to measure liquids. Graduated cylinders have numbers on the side that help you determine the volume. Volume is measured in units called liters or fractions of liters called milliliters (ml).
Also Know, which has greater precision the 10 mL graduated cylinder or the 50 ml graduated cylinder? Answer and Explanation: The graduated cylinder with the most subdivisions between the mL marks is the most precise. Typically this would be the 50 mL graduated cylinder.
Simply so, is the volume of a liquid fixed?
Liquids, because they flow, can occupy whatever shape their container has, so they do not have a fixed shape. Because the particles in liquids are very close together (barely further apart than in solids) liquids do not easily compress, so their volume is fixed. They do not have a fixed volume.
When would you use a graduated cylinder?
The graduated cylinder is used for measuring volumes (amounts) of liquids. This piece of equipment is used routinely, although it is only moderately accurate compared to other tools, such as volumetric flasks. Volumetric flasks are used when absolute precision (accuracy) is needed.
Related Question Answers
What is the smallest volume of liquid a graduated cylinder can measure?
Therefore, the smallest marked division (or scale increment) is 10 mL/10 graduations. This is 1 mL per graduation. So the smallest marked scale division is 1 mL, and the certain digits will be recorded to the "ones" place.How do you read a 50 mL graduated cylinder?
With a 50-mL graduated cylinder, read and record the volume to the nearest 0.1 mL. The 10-mL graduated cylinder scale is read to the nearest 0.01 mL and the 500-mL graduated cylinder scale is read to the nearest milliliter (1 mL). A buret is a scaled cylindrical tube attached to a stopcock, or valve.What is the volume of a liquid?
Measuring the Volume of Liquids Liquids are fairly simple to measure, remembering that 1000 cubic centimetres equals 1 litre and 1000 litres equals 1 cubic metre.Why graduated cylinder is accurate?
Graduated cylinders are designed to determine the volume of a sample by noting the difference in liquid volume before and after the sample is added to the cylinder. Although their measurements are made for accuracy, more advanced volumetric analysis should be performed with volumetric flasks or pipettes.How do you read a 25 mL graduated cylinder?
Reading the Volume from a 25-mL Graduated Cylinder - Step 1: Determine the scale increment: To find the scale increment, subtract the values of any two adjacent labeled graduations and divide by the number of intervals between them.
- Step 2: Use the graduations to find all certain digits:
- Step 3: Estimate the uncertain digit and obtain a reading:
How do you accurately measure liquids?
To measure liquids, place an appropriately sized liquid measuring cup on a flat, stable surface (don't just hold it in your hand!). Pour in your liquid until it is just under the line. Squat or bend down so that your eye is exactly level with the graduation.How do you measure a small amount of liquid?
To measure small amounts of liquid, use standard measuring spoons. Hold the spoon level in the air straight across from your eyes. Carefully trickle the liquid into the measuring spoon until it reaches the rim. Stop when the meniscus is at the bottom of the line.What are the sizes of graduated cylinders?
Glass graduated cylinders are available in three sizes, 500ml 1000ml, and 2000ml, in 5ml, 10ml and 20ml increments. Glass cylinders have white scales and are made from Borosilicate glass. They also have a solid base, and pour spout.What are the lines called on a graduated cylinder?
The liquid will tend to curve downward. This curve is called the meniscus. Always read the measurement at the bottom of the meniscus.What is the formula for finding volume of a solid object?
Use multiplication (V = l x w x h) to find the volume of a solid figure.What is a graduated cylinder used to measure?
A graduated cylinder, measuring cylinder or mixing cylinder is a common piece of laboratory equipment used to measure the volume of a liquid. It has a narrow cylindrical shape. Each marked line on the graduated cylinder represents the amount of liquid that has been measured.Which is the most accurate way to read a graduated cylinder?
Read the Meniscus To correctly read a graduated cylinder, the surface at the center of the meniscus must be read, not the top of the ring of liquid clinging to the wall of the graduated cylinder. For most liquids, this "center" will be the lowest point of the meniscus.How accurate is a graduated cylinder?
The accuracy specification of graduated cylinders is taken as a percentage of the full scale, that is, the volume at the top fill line. For class B graduated cylinders, the stated accuracy of 1% means that a 100ml cylinder when filled correctly will be accurate to 100 ± 1ml.What is the uncertainty of a 10ml graduated cylinder?
In the graduated cylinder shown in Figure 1, the mL graduations are marked and can be read with certainty. All graduated glassware is read with one estimated digit, so this measurement is recorded correctly to the nearest 0.1 mL, with an understood uncertainty of ± 0.1 mL.Is a Buret or graduated cylinder more accurate?
In Part A the buret is more precise in measuring the volume of a liquid than using a graduated cylinder or beaker. In part B, the buret is accurate in being able to read measurements forvolume. Using a pipet is accurate in being able to give precise volume.Why is it called a graduated cylinder?
Graduated Cylinder. As its name indicates, it is a glass cylinder with marks along the side similar to those on a measuring cup. The volume is read by looking at the top of the fluid from the side and reading the mark on the glass from the lowest portion of the lens-like meniscus of the liquid.How do you read a 100 mL graduated cylinder?
The 10-mL graduated cylinders are always read to 2 decimal places (e.g. 5.50 mL) and the 100-mL graduated cylinders are always read to 1 decimal place (e.g. 50.5 mL). so that the line at the bottom of the meniscus gives the most accurate reading.Why is a burette better than a measuring cylinder?
The burette is used to measure the volume of a dispensed substance, but is different from a measuring cylinder as its graduations measure from top to bottom. The precision and control of the burette over other means of adding solution is beneficial for use in titration.At what level should your eye be located when reading a volume correctly?
Your eye must be on the same level as the bottom of the meniscus to read the volume correctly. The meniscus formed by a non-wetting liquid, such as mercury (Hg), is convex with the highest point in the center. In the case of a convex meniscus, the highest point is used to make the reading.
