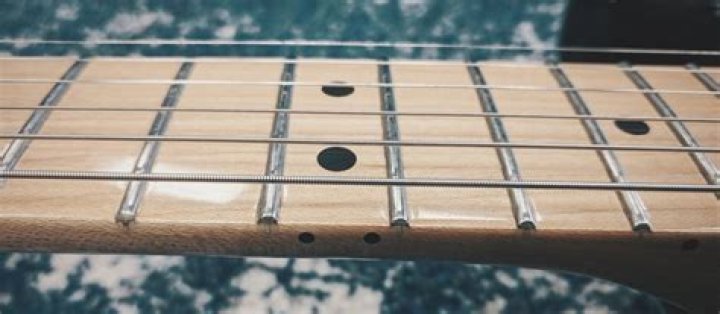

How do you measure action at 12th fret?

Hold the ruler flat on the top of the 12th fretbetween the E (6th) and A (5th) strings. Carefully slide the rulerup to the low E (6th) string so that it touches the string butdoesn't move it. 3. Measure the space between the top of thefret and the bottom of the string.

.

In respect to this, how do you measure action?

Most factories set action at 3/32" to 7/64" onthe bass E string at the 12th fret and 2/32" to 5/64" on the trebleE. Place a ruler on top of the 12th fret and measure thedistance between the top of the fret and the bottom of the outer Estrings.

Subsequently, question is, is my guitar action too high? Very often, the strings are too high at the nut.As with the action when it is too high, chords willbe very difficult to play, particularly near the nut. Normally, thestrings at the nut should barely be higher than the height of afret. If the strings buzz when open, they might be toolow.

Subsequently, question is, how is string action height measured?

We only measure string height under the two outer Estrings (thickest and thinnest strings). There's noneed to measure the middle 4 strings.

Here's what you do:

1. Hold the guitar in the playing position.
2. Measure the distance from the top of the 12th fret to theunderside of the lowest (fattest) string.

What is the perfect action for a guitar?

Action on a guitar is usually measured atthe 12th fret. Typically preferred action on an electricguitar is around 1/16" (1.6mm) on the high E string and3/32" (2.4mm) on the low E string when in standard tuning usingstandard gauge strings.

Related Question Answers

How much space should be between strings and frets?

The distance between the strings and theneck at the 12th fret should be about 1.6 millimetres (0.063in), or the width of a dime. Hold the flat end of a ruler againstthe neck and measure how high the strings are. If thestrings are further than 1.6 millimetres (0.063 in), (highaction) you need to lower the bridge.

What is ideal action height electric guitar?

Experts differ in their opinions about which fret isbest to measure string height from, with most saying thatmeasuring from between the 8th and the 12th fret, is the best. AtStringjoy, we tend to look at the action at the 12th fret,but if you're more comfortable using a different reference point,that's fine too.

What causes guitar strings to buzz?

Fret buzz is the annoying sound caused bya guitar string rattling/buzzing against a fret wirewhen the guitar string is being plucked or played. There arethree common causes of fret buzz: Frets are not levelwith each other (some are taller, some are shorter) StringAction is too low.

How is guitar relief measured?

Relief is measured by placing a capo atthe first fret, pressing down on the string at the last fret withyour left hand (or right hand if you're left-handed) and thenmeasuring the gap between the bottom of the high E stringand the top of the fret (not the fingerboard).

How do you adjust the string height on a Stratocaster?

Beginning with the 1st string, turn the heightadjustment screws located on either side of the saddle to raiseor lower the string to your preferred height (Photo14). For a modern Strat fretboard with a radius of9.5"–12", such as on this guitar, official Fenderspecs are 4/64" for both the 1st and 6th strings.

How high should the action be at the 12th fret?

The average string action of the guitars I set upis 3/32 inches on the bass side and 1/16 inches on the treble side.It is important to note that to change your action height atthe 12th fret a certain distance, you must multiplythat number by two to find the height to raise it at thesaddle.

Which way do you turn truss rod to lower action?

If the neck is too concave (action too high),turn the truss rod nut clockwise to remove excessrelief. If the neck is too convex (strings too close to thefingerboard), turn the truss rod nutcounter-clockwise to allow the string tension to pull more reliefinto the neck.

What does lowering the action on a guitar do?

The saddle serves the same purpose as the nut,controlling the height of the guitar strings. If youlowered the action at the nut, you must also lower theaction at the bridge or your tone will be off. Thestrings are strung through the bridge, and their tensionholds the saddle in place.

How do I get rid of fret buzz?

Here are five reasons why your strings arebuzzing:

1. Fret in the Right Place. Make sure you're fretting notes at theproper spot just behind the fret.
2. Apply the Right Amount of Pressure.
3. Avoid Strumming Too Hard.
4. Consider the Strings.
5. Check the Setup.

How do I know if my guitar needs setup?

Warning Signs that Your Guitar Needs a Setup

1. Intonation is off.
2. Action is too high.
3. Guitar buzzes when you fret a note.
4. Strings “fret out” — stop vibrating and buzzas you bend them.
5. Frets feel sharp along the edges.
6. Neck appears warped.
