How do you make a stub zone?

How to Create a Stub Zone on a Windows DNS Server

1. Open the DNS Management console.
2. Right-click Forward Lookup Zones in the left pane and select New Zone.

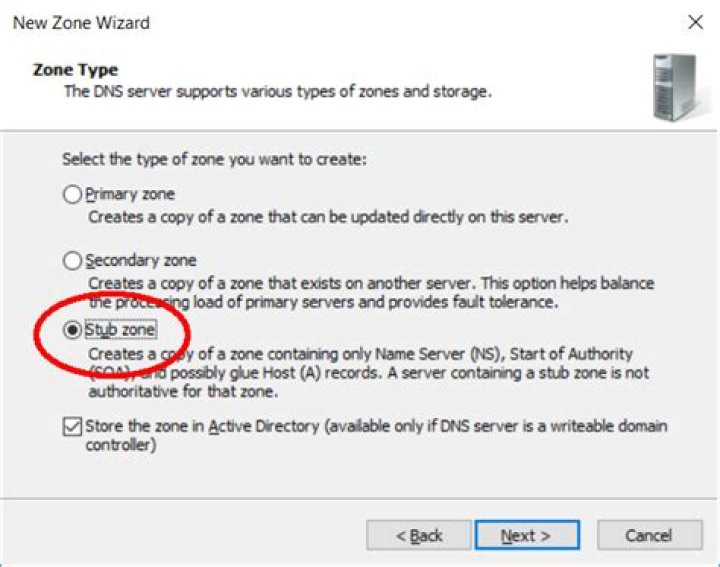

3. On the Zone Type screen of the New Zone Wizard, select Stub zone.
4. When prompted for the name of the zone, supply its full DNS name.
5. Supply the IP addresses of the master servers for the zone.

.

Considering this, what is stub zone and how it works?

A stub zone is a copy of a zone that contains only those resource records necessary to identify the authoritative Domain Name System (DNS) servers for that zone. A stub zone is used to resolve names between separate DNS namespaces. The IP address of one or more master servers that can be used to update the stub zone.

Also Know, what is the difference between stub zone and conditional forwarder? 1 Answer. A conditional forwarder setting configures the DNS server to forward a query it receives to a DNS server depending on the DNS name contained in the query. A stub zone keeps the DNS server hosting a parent zone aware of all the DNS servers authoritative for a child zone.

Just so, what is primary secondary and stub zone in DNS?

In the original implementation of DNS found in RFCs 1034 and 1035, two different types of zones were defined: Primary zones, which store their zone information in a writable text file on the name server. Secondary zones, which store their zone information in a read-only text file on the name server.

What is forward lookup zone?

A forward lookup zone is a DNS zone in which hostname to IP address relations are stored. When a computer asks the IP address of a specific hostname, the forward lookup zone is checked and the desired result is returned. In order to create a new forward lookup zone: You have to start the DNS snap-in.

Related Question Answers

What is a stub domain?

A stub zone is a copy of a zone that contains only those resource records necessary to identify the authoritative Domain Name System (DNS) servers for that zone. Astub zone is used to resolve names between separate DNS namespaces.

What is DNS AAAA record?

An AAAA record is used to find the IP address of a computer connected to the internet from a name. The AAAA record is conceptually similar to the A record, but it allows you to specify the IPv6 address of the server, rather than the IPv4. The DNS A record is specified by RFC 3596.

What are the DNS zone types?

Let's take a look at the different zone types.

• Active Directory Integrated Zones. Active Directory Integrated Zones stores its zone data in Active Directory.
• Primary Zone. This is the main zone and has a read/write copy of the zone data.
• Secondary Zone.
• Stub Zone.
• Forward Lookup Zone.
• Reverse Lookup Zone.
• Zone Transfers.

What is DNS delegation?

Configure delegation. DNS delegation is when a DNS server delegates authority over a part of its namespace to one or more other DNS servers. For example, Adatum.com and sales.adatum.com could be hosted in the same zone, Adatum.com, with the sales.adatum.com merely being a subdomain record.

What is DNS server zone?

A DNS zone is any distinct, contiguous portion of the domain name space in the Domain Name System (DNS) for which administrative responsibility has been delegated to a single manager. A DNS zone is implemented in the configuration system of a domain name server.

What are root hints?

Root hints are DNS data stored in a DNS server. Root hints are used to prepare servers authoritative for non-root zones so that they can learn and discover authoritative servers that manage domains located at a higher level or in other subtrees of the DNS domain namespace.

What is caching only server?

A caching-only server saves data in a cache file until the data expires. Expiration occurs based on a ``time-to-live'' field attached to data received from another server. A caching-only server answers data from its cache if it has the information, or requests it from authoritative servers if it does not.

What is reverse lookup zone and forward lookup zone?

There are two main categories of lookup zones: forward lookup zones and reverse lookup zones. Forward lookup zones are used to map a host name to an IP address. Reverse lookup zones are used to map IP addresses to host names.

What is primary secondary and sub zone?

Primary Zone:- DNS server hosts is a primary zone and it stores the master copy of zone data in a local file or in AD DS. Secondary Zone:- secondary zone is merely a copy of a primary zone that is hosted on another server, it cannot be stored in AD DS.

What is a secondary zone?

Secondary Zones are a DNS feature that allows the entire DNS database from a Master DNS server to be transferred to the Secondary. A Secondary Zones allows an organization to provide fault tolerance and load balancing to internal names.

What is nslookup?

nslookup is a network administration command-line tool available in many computer operating systems for querying the Domain Name System (DNS) to obtain domain name or IP address mapping, or other DNS records.

What do nameservers do?

Nameservers are part of a large database called the Domain Name System (DNS), which acts like a directory for devices and the IP addresses attached to them. What nameservers do is use this information to translate domain names into numerical IP addresses – the language our computers understand.

How do I create a secondary zone in DNS?

How to create a secondary domain / zone.

1. Go to CLOUD DNS.
2. Click on DOMAINS.
3. Click ADD.
4. Enter the name of the domain (e.g. example.com)
5. Change the DOMAIN TYPE to secondary.
6. Enter the IP address your ISP gave you for pulling zone transfers.
7. Update the email address and adjust any TTL values as you see fit.
8. Click SAVE.

What is DNS zone example?

A DNS zone is a portion of the DNS namespace that is managed by a specific organization or administrator. A DNS zone is an administrative space which allows for more granular control of DNS components, such as authoritative nameservers. The domain name space is a hierarchical tree, with the DNS root domain at the top.

Where are DNS files stored?

By default Windows DNS Servers storing File Based Zones look for database at the WindowsSystem32DNS Directory. This folder stores the data for the file-based DNS Zones.

What is the main purpose of SRV records?

The SRV record is a Domain Name System (DNS) resource record that is used to identify computers that host specific services. SRV resource records are used to locate domain controllers for Active Directory.

What is the difference between a zone and a domain in DNS?

A "domain" represents the entire set of names / machines that are contained under an organizational domain name. For example, all domain names ending with ".com" are part of the "com" domain. A "zone" is a domain less any sub-domains delegated to other DNS servers (see NS-records).

What is a stub zones and scenarios to use it?

What are the benefits and scenarios of using Stub zones? A stub zone is a copy of a zone that contains only those resource records necessary to identify the authoritative Domain Name System (DNS) servers for that zone. A stub zone is used to resolve names between separate DNS namespaces.

What is the benefit of name caching?

What is the primary purpose of name caching? Name caching enables the second name resolution request for the same name to bypass the referral process. What client applications utilize DNS to resolve host names into IP addresses?
