How do you lubricate a cylinder wall?

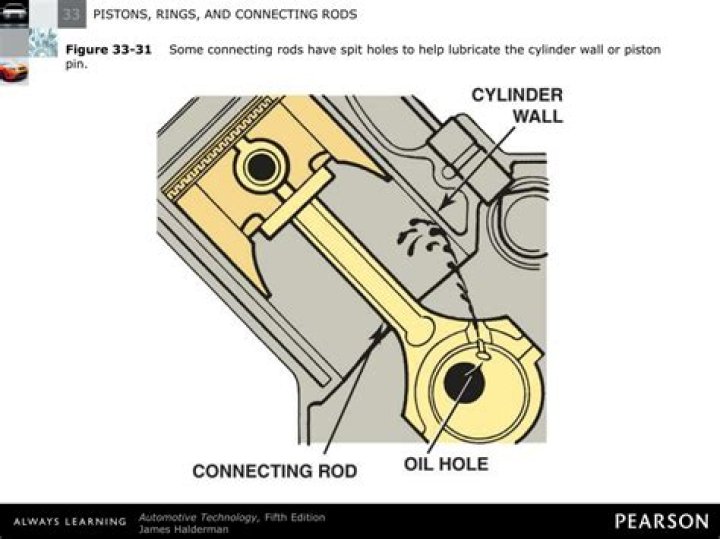

The cylinder walls and piston-pin bearings are lubricated by oil fling dispersed by the rotating crankshaft. The excess being scraped off by the lower ring in the piston. A bleed or tributary from the main supply passage feeds each camshaft bearing.

.

Keeping this in view, what provides the film of lubrication between piston and cylinder wall?

A barrel faced compression ring is a piston ring that has a curved running surface to provide consistent lubrication of the piston ring and cylinder wall. This also provides a wedge effect to optimize oil distribution throughout the full stroke of the piston.

Also, how long does it take for oil to circulate in an engine? It is the first 30 seconds to 2 minutes of engine operation that is the hardest for wear on the piston bore ,and valve guides.

Also asked, does oil go into cylinder?

The crankshaft has dedicated holes (like our veins ) , the engine oil flows through crankshaft internal bore and reaches the piston big end bearing. From big end bearing it reaches connecting rod . From connecting rod it reaches piston from piston wall it reaches cylinders.

Where does oil go in an engine?

First, the oil you pour in the top of the engine goes through many paths eventually arriving in the bottom oil pan, often called the sump, where the drain plug is located. The oil goes through several different paths returning to the bottom - but only one path, under pressure, to do its job.

Related Question Answers

What are the types of lubricants of an engine?

There are three different types of lubrication: boundary, mixed and full film. Each type is different, but they all rely on a lubricant and the additives within the oils to protect against wear. Full-film lubrication can be broken down into two forms: hydrodynamic and elastohydrodynamic.

Why lubricant is used in an engine?

The engine lubrication system is to distribute oil to the moving parts to reduce friction between surfaces. Lubrication plays a key role in the life expectancy of an automotive engine . The oil then forced through an oil filter under pressure to the main bearings and the oil pressure gauge.

How does engine oil get dirty?

when your engine is first started, the oil is too cold to go through the filter, so the bypass valve allows it to circulate into the engine. When it's doing that, contaminants in the crankcase can slip into the oil. As the oil thickens, it actually makes it harder for the engine to do its job, like swimming in treacle.

How does a lubricant work?

A lubricant is a substance, usually organic, introduced to reduce friction between surfaces in mutual contact, which ultimately reduces the heat generated when the surfaces move. It may also have the function of transmitting forces, transporting foreign particles, or heating or cooling the surfaces.

How does oil get into combustion chamber?

Engine lubrication oil can enter through clearance between piston and barrel, and through clearance between valve guide and valve ( inlet and exhaust). If piston ring worn out, sealing between piston and cylinder is not proper. And the oil which is carried by piston crown remains on cylinder wall.

Does WD 40 remove carbon?

WD-40 removes carbon residue and keeps moisture away from spark plugs and spark plug wires.

What do you soak a cylinder head in?

Soak the cylinder head in warm water to soften up any remaining dirt and particles. This is done to clean the various oil and coolant passages and galleries that cannot be reached by hand. The warm water will help remove any remaining oil and dirt left behind from the first round of cleaning.

How do you clean a cylinder head at home?

Method 2 Cleaning Cylinder Heads

1. Use a plastic scraper to remove head gasket material.
2. Place the cylinder head in the tub.
3. Use parts cleaner and a rag to begin scrubbing the head.
4. Fill the second tub with warm water.
5. Submerge the cylinder head in the water.
6. Remove the head and use a rag to wipe it down.

How do you clean carbon off a cylinder head?

Clean away the remaining carbon with solvent, using fine steel wool to smooth rough spots. You can also soak metal parts for up to 15 minutes to remove stubborn deposits. Scrape again, if necessary, to loosen stubborn grit. Then, clean the area thoroughly with the solvent and set the head aside.

How do you clean an engine block at home?

Pour the liquid parts cleaner on the engine block in the tub. Using a rag, scrub the engine block thoroughly but do not use a steel brush or any scrubbing tool. Carbon deposits and burnt oil will break down due to the cleaning agent, but you still need to remove most of them.

What will dissolve carbon?

However, if the clog is caused by soot and resinous residue from the incompletely burnt fuel, then most likely hot toluene or xylene can dissolve the residue and liberate the carbon particles.

How much clearance does a piston and cylinder wall need?

Arule of thumb is that the gap clearance should be 0.03 mm for each 10 mm of cylinder diameter, measured in the unworn part of the bore. The ring must not be measured at the top of the bore because its gap will close as it is moved towards the bottom of the cylinder.

What causes a piston to seize?

The lack of lubrication on the piston has caused it to seize to the cylinder wall. The damage you see was caused in the moments before the piston "stuck," which seized the engine. This kind of piston damage can also be found on a saw that was run with the carburetor set too lean or one that was run with an air leak.

What is piston ring side clearance?

The vertical clearance remaining in the piston ring groove after the ring is installed. Depending on the application, the side clearance is typically . 001-. 003-inch. With today's thin rings, some racers run side axial clearance as tight as 0.0004 - 0.0005-inch, using gas ports to supplement ring pressure.

Do piston rings rotate in cylinder?

Piston rings are free agents and can rotate or not rotate as they see fit. The piston ring was manufactured with a tangential load – the force with which the ring presses against the cylinder wall – but apart from that it is completely uncontrolled.

What are cylinder walls made of?

There are two primary metals used for internal combustion engines (ICE.) When the engine block is made from cast iron, the cylinder walls are also cast iron.

What is the function of piston pin?

A piston pin transfers the entire power out of the combustion process from the piston, via the conrod, to the crankshaft and is the most stressed part of an engine. Therefore, the pin have to be checked against wear and tear carefully and on a regular basis.

What is piston slap?

Piston slap is the rocking of the piston in the cylinder (as opposed the desired movement of the piston up and down the cylinder). It happens when there is "too much" room for the piston in the cylinder and the skirt of the piston hits the cylinder wall.

What does piston mean?

A piston is a component of reciprocating engines, reciprocating pumps, gas compressors and pneumatic cylinders, among other similar mechanisms. In an engine, its purpose is to transfer force from expanding gas in the cylinder to the crankshaft via a piston rod and/or connecting rod.
