How do you layout stair spindles?

Tim Healey The baluster closest to the front of the stair sits directly over the miter between the face skirt and the riser. Divide the run of the tread by the number of balusters to find the exact on-center spacing. The location of the shortest baluster on each tread determines the location of the others.

.

Then, how do you layout spindles?

Luckily, there is a simple solution to this puzzle.

1. Measure the width of the gap between the inner surfaces of the two support posts.
2. Measure the width of a single spindle.
3. Add the two figures together.
4. Count the number of spindles to be used and add one.
5. Divide the sum of the width by the sum of the number of spindles.

Subsequently, question is, how do you attach stair spindles? Measure each tread and cut it to size then install it using 2-1/4" trim screws.

1. installing the treads. Install the Treads.
2. fill in screw holes with wood putty. Fill Screw Holes.
3. mark stair railing for angled cut. Cut Railing to Length.
4. pre drill landing and treads for balusters.
5. attach rail fasteners into newel posts.

In this manner, how far apart do you put stair spindles?

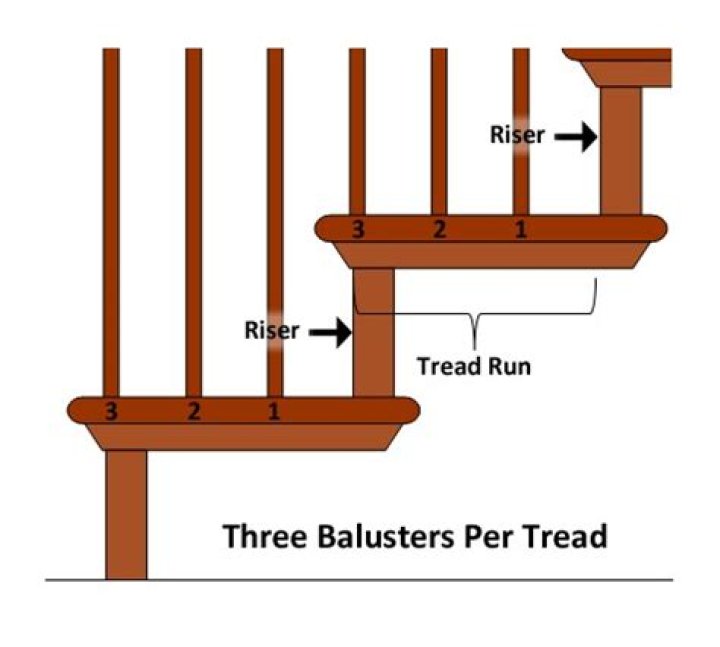

Baluster Spacing – The general rule of thumb is to have 3 baluster per foot so you do not have any gaps greater than four inches. If you put one baluster every 4 inches on center, then you will typically always be fine. See diagram below. Now a few things could happen when trying to space your baluster.

How are spindles calculated?

The three most common sizes of balusters and the calculations for each, are;

1. If you are fitting 32mm spindles - divide the measurement by 112.
2. When installing 35mm spindles - divide the measurement by 115.
3. Or if you are installing 41mm spindles - divide the measurement by 121.

Related Question Answers

How do you remove stair spindles?

Lay a thin hand saw blade on the tread of the stair so that its teeth are where the bottom of the spindle and the top of the tread meet. A little wooden dowel pin connects the two together. Move the saw back and forth to slide under the spindle and cut the dowel pin. Repeat this process for each spindle.

How many spindles are needed for railing?

In order to comply with building regulations and codes, balusters must be spaced no more than 4 inches apart on center. The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you'd like.

What is the maximum space between railings?

Balusters, the vertical guards that support the handrail, must be installed close enough that the space between them is no greater than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 lbs. of pressure exerted over a 1-square-foot area.

What is the height of a stair railing?

Handrail Height: 34 to 38 Inches Handrail height on the stairs should be no less than 34 inches and no greater than 38 inches. The way this is measured is to begin at the leading edge of the stair nosing and run an imaginary vertical line upward until it reaches the top of the railing.

What is the spacing between balusters?

Balusters are the vertical guards that support the handrail. They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing.

How do you measure a stair railing?

Handrails must run the entire length of the stair (bottom nose to top). The top of the rail should be between 34-inches and 38-inches, measured directly up from the stair nosing. There needs to be at least 1-1/2-inches between the wall and the rail.

How do you fix loose spindles on stairs?

To tighten loose spindles, drive thin, glue-coated wooden wedges into the seam where the spindle meets the underside of the handrail. They will not be noticed there. After the glue dries, trim the wedges carefully with a sharp utility knife to hide them further.

How much does it cost to replace stair spindles?

A complete makeover for a standard staircase falls on the mid or high end of that price range. New treads and risers usually cost about $1,800 to $2,500. New balusters usually cost about $1,200 to $1,600. A complete makeover including treads, risers, balusters, a handrail and newel posts usually costs $4,000 to $8,000.

Which side should handrail be on stairs?

Both sides are better and safer too for installing stair railings. There are no standard rules. But mostly It is suggested on the right hand side as you go down the stairs. Very few stairwells are full walled on both sides, so the wall-mount rail is usually same side as the banister rail.
