How do you hook up a thermostat to a furnace blower?

Locate the "G" terminal, which controls the blower operation from the thermostat, on the board. Connect the green low voltage wire to the "G" terminal and put the access panel back on the front of the furnace. If no green wire exists you may need to pull a new thermostat wire from the furnace to the thermostat.

.

Similarly, you may ask, where do thermostat wires go on furnace?

The two 24 volt wires go to the R terminal and C terminal inside the thermostat. R is the hot side while C is the common side of the transformer.

Secondly, can I run my furnace fan in the summer? If you own a single-story home you can still benefit from running your furnace fan continuously in summer months since it will even the temperature in your home and prevent you from having noticeable hot and spots or cold spots, preventing it from running continuously in the winter.

Accordingly, how do you wire a fan to a thermostat?

Use the wire nuts to connect the wires from the thermostat to those of the fan. Connect the black wire from the fan to the red wire from the thermostat. Also, connect the white wire from the fan to the black wire from thermostat. In addition, the ground wire should attach to the terminal screw in the electrical box.

Which wire is for the fan on a thermostat?

green

Related Question Answers

How do you run a furnace fan?

To circulate air and clear dust from ductwork, keep the blower in the "on" position.

1. Move furniture or obstacles away from the warm-air supply register and the cold-air return.
2. Locate the household thermostat.
3. Switch the fan setting to "on." Listen for the sound of the blower turning on.

How does a furnace fan limit switch work?

While the primary function of the limit switch is to turn the blower fan on and off, it also has a safety role. When the temperature in the air supply plenum gets too hot, the limit switch turns off the furnace boiler to keep there from being any damage from overheating.

How do I turn on my furnace fan without heat?

If you want a switch to allow running the blower at the cooling speed without heat then you can install a simple switch at the furnace and connect it to the R and G terminals where the thermostat wiring connects. yes. And that light switch would even work.

What color is AC wire?

Y wire (yellow, for air conditioning). W wire (white, for heat). C wire (blue or black, common for 24-volt power to the thermostat). Note that colors may vary and the labeling on systems may be inconsistent.

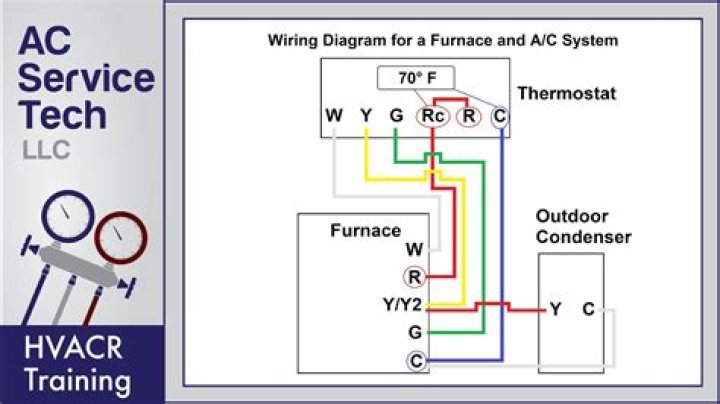

What color wires go where on a furnace?

Red – R – 24VAC power from the furnace's transformer. Red – Rc – 24VAC (dedicated to heat call) Red – Rc – 24VAC (dedicated to cooling call) Green – G – Fan.

How many wires can be connected to the C terminal at the furnace?

Technically, there should only be one wire connected to the screw terminal. However, it's common practice in the HVAC industry to connect more. If you want to do it the proper way, you should use a twist-on wire connector (or other connector), and a length of scrap wire to make a pigtail.

How many wires does a thermostat need?

In the most basic system, this functionality is provided by use of a fan center relay, and the low voltage wiring to the thermostat now will require a minimum of three wires (for heat only units) and four wires (for heat / cool / fan) for control.

What is G wire on furnace?

The usual terminals are: G – Fan, usually a green wire. R – 24 VAC usually a red wire (Rc and Rh are discussed later) C – 24 VAC Common. Y – Compressor, usually a yellow wire.

Why does my thermostat only have 2 wires?

If your heating system has only two wires, the job of the thermostat is simple. All it has to do is turn the heat or the cooling on and off. There is also no thermostat blue wire, or common wire, to power the thermostat, so it has to operate on its own, either using batteries or mechanical temperature detection.

Do thermostat wires go bad?

While a thermostat doesn't have a set lifespan, on average, you can expect them to last at least 10 years. After a decade, thermostats may start malfunctioning due to aging wiring or dust accumulation. In this article, we'll share signs your thermostat is bad and how to troubleshoot a malfunctioning thermostat.

What causes a furnace transformer to go bad?

This is likely caused by a damaged component within the control circuit, which is drawing far too much current for the transformer. Rather than burning up more transformers, and/or blowing through a crate of fuses, why not try troubleshooting the circuit with the power off.

How long does it take to replace a furnace blower motor?

DIY or Pro Installation: It's going to take a furnace repair technician between 45 minutes and 90 minutes to replace the motor, clean the fan, adjust the motor, test it and put the furnace back together.

How do you test a blower motor?

If the blower motor isn't running you should:

1. Use voltmeter or ohmmeter to check for a blown fuse. If you find one, replace it.
2. Start car and see if blower motor works.
3. If the circuits are in good repair but the blower motor keeps blowing fuses, replace the blower motor [source: You Fix Cars].

What is park on a furnace board?

The park terminal is just a terminal to connect unused blower motor wires. If you have a 3 speed blower motor and use 2 it gives you a safe place to put the other wire. Park your unused wires there.

How does a blower motor work?

The blower motor is the fan that pushes heated or cooled air through dashboard vents based on the climate system settings and the fan speed selected. Adjusting the fan speed sends a signal through a resistor to the blower motor to either pick up the pace or slow it down.

Where do the thermostat wires go on the furnace?

The two 24 volt wires go to the R terminal and C terminal inside the thermostat. R is the hot side while C is the common side of the transformer.

Why is there a jumper between RH and RC?

Effectively there isn't a second RH wire, although there is an RH terminal. However, the heating still needs to be controlled, so a wire known as a jumper is connected between the RC and the RH terminals so that power gets to the heating control part of the thermostat.

Where does the red wire go on a thermostat?

The RED wire or 24 Vac power lead is connected straight to the RC & 4 terminals. Some thermostat units have a dedicated R terminal and it jumpers to the RC, RH or 4 terminals internally. The W, Y and G terminals should be pretty straight forward on most all types of thermostat's.

How do you twin a furnace?

On our furnaces, twinning is made easy without any additional controls. On each board is a terminal marked “twin”. By running a single wire between the twin terminal on each board and running a wire between the “C” or common terminal on each board, the furnaces are now twinned and will operate in unison.
