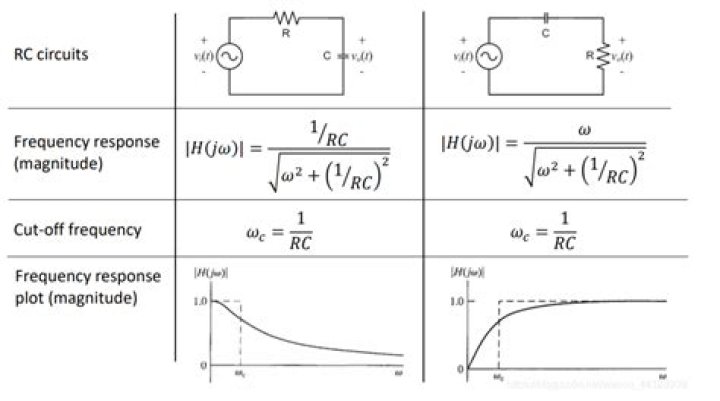

How do you find the cutoff frequency of an RC circuit?
.
Keeping this in consideration, how do you find the cutoff frequency of a Bode plot?
To find the actual cutoff frequency, use the cursor to locate the–3 dB point. In this second plot, we used TINA's annotation tools to draw the straight-line segments also. Once again, the y-axis is linear and displays the voltage ratio in dB or the phase in degrees. The x- or w-axis represents frequency in Hz.
Beside above, how do you calculate the cutoff frequency of a low pass filter? The cut-off frequency or -3dB point, can be found using the standard formula, ƒc = 1/(2πRC). The phase angle of the output signal at ƒc and is -45o for a Low Pass Filter.
Then, what is the gain at the cut off frequency?
The frequency range “below” this cut-off point ƒc is generally known as the Stop Band while the frequency range “above” this cut-off point is generally known as the Pass Band. The cut-off frequency, corner frequency or -3dB point of a high pass filter can be found using the standard formula of: ƒc = 1/(2πRC).
How do you find the cutoff frequency of a transfer function?
Substitute z^-1 = Cos(w)+jSin(w). When you crunch through the complex arithmetic, you find the 3 db cutoff period is where a = (Cos(360/Period)+Sin(360/Period)-1) / (Cos(360/Period)+Sin(360/Period)) where the angle is in degrees and "Period" is the number of samples per second at the 3 dB point.
Related Question AnswersWhy is 3dB the cutoff frequency?
The -3dB point is very commonly used with filters of all types (low pass, band pass, high pass). It is just saying the filter cuts off half of the power at that frequency. The rate at which it drops off depends on the order of the system you are using. Higher order can get closer and closer to a "brick wall" filter.What is low cutoff frequency?
Low-pass filters always transition smoothly from the passband to the stopband. Furthermore, there is nothing magical about the “cutoff” frequency, which is more accurately referred to as the –3dB frequency, i.e., the frequency at which the magnitude response is 3 dB lower than the value at 0 Hz.How do you solve a Bode plot?
Bode Plot: Example 1- Step 1: Rewrite the transfer function in proper form.
- Step 2: Separate the transfer function into its constituent parts.
- Step 3: Draw the Bode diagram for each part.
- Step 4: Draw the overall Bode diagram by adding up the results from step 3.
What do Bode plots tell us?
A Bode Plot is a useful tool that shows the gain and phase response of a given LTI system for different frequencies. Bode Plots are generally used with the Fourier Transform of a given system. Every tickmark on the frequency axis represents a power of 10 times the previous value.What is 3dB loss?
Every 1dB of loss in the system represent a full 20% -loss- of power. Just as in gain, 3dB of loss represents a loss of 50% of your power. LMR400 has 6.6dB per 100ft, so keep your runs as short as possible. All losses are cumulative, so every element of your system has to be accounted forWhat is cutoff frequency of a filter?
In electronics, cutoff frequency or corner frequency is the frequency either above or below which the power output of a circuit, such as a line, amplifier, or electronic filter has fallen to a given proportion of the power in the passband.What does 3dB mean?
3db is the power level, its the frequency at which the power is at 3db below the maximum value and 3db means in normal unit its half the maximum power so 3db frequency means the frequency at which the power is half the maximum value so its decided the cuttoff frequency.What is cutoff frequency of a high pass and a low pass filter?
A high-pass filter (HPF) attenuates content below a cutoff frequency, allowing higher frequencies to pass through the filter. A low-pass filter (LPF) attenuates content above a cutoff frequency, allowing lower frequencies to pass through the filter.What is 3dB frequency?
The 3dB point, or 3dB frequency, is the point at which the signal has been attenuated by 3dB (in a bandpass filter). This is generally considered the point for determining the filter's bandwidth. The bandwidth is defined as the difference between the upper and lower 3dB points.How do you determine the cutoff frequency of a high pass filter?
The cut-off frequency, corner frequency or -3dB point of a high pass filter can be found using the standard formula of: ƒc = 1/(2πRC). The phase angle of the resulting output signal at ƒc is +45o.Is an RC circuit a low pass filter?
Low Pass RC Circuit: Low pass filter is a circuit which passes only low frequency signals and attenuates high frequency signals when passed through a network over certain cutoff frequency and it is determined by the RC time constant.What is the cutoff frequency of a low pass filter?
The cutoff frequency for a low-pass filter is that frequency at which the output (load) voltage equals 70.7% of the input (source) voltage. Above the cutoff frequency, the output voltage is lower than 70.7% of the input, and vice versa.How do you make a low pass filter?
TL;DR- The low pass filter can be made as follows:
- Low pass filters filter out signal with frequencies above the cutoff frequency (1/2πRC).
- Since the cutoff is strictly determined by R and C, choose the appropriate resistor and capacitor to cutoff frequencies where you want to.
When would you use a low pass filter?
Try using a low-pass filter on the output of a delay. As the cutoff frequency of the delay component is reduced, you should expect to hear a more 'realistic' spatial separation between the direct signal and the delay. LPF cutoff frequencies in the 2kHz-5kHz range are typical.How do you calculate the gain of a low pass filter?
Active Low Pass Filter Voltage Gain- Amax = Gain of the pass band = {1 + (R2/R3)}?
- f = operational frequency.
- fc = Cut-off frequency?
- Vout = ?Output voltage.
- Vin = Input Voltage?
