How do you find the coefficient of lift?

The lift coefficient Cl is equal to the lift L divided by the quantity: density r times half the velocity V squared times the wing area A. The lift coefficient then expresses the ratio of the lift force to the force produced by the dynamic pressure times the area.

Besides, how do you find the lift coefficient without a lift?

Lift per unit span you can compute if you know the Circulation[1] as Circulation is the strength of the flow around the body and hence helps in determining lift without actually computing lift coefficient (Lift per unit span= ¶*v*Circulation; where ¶= density of the flow field).

Also Know, what is the unit of lift? The units of lift in the lift equation can be confusing because the English unit of pound represents force when representing weight, while kilogram is the metric unit of mass (newton is the unit of force). After unit analysis, lift is in units of kg·m/s² = newtons, or slug·ft/s² = pounds-force.

Correspondingly, what does the coefficient of lift mean?

The lift coefficient (C_L) is a dimensionless coefficient that relates the lift generated by a lifting body to the fluid density around the body, the fluid velocity and an associated reference area. A lifting body is a foil or a complete foil-bearing body such as a fixed-wing aircraft.

How do you measure airfoil lift?

The lift equation states that lift L is equal to the lift coefficient Cl times the density r times half of the velocity V squared times the wing area A. For given air conditions, shape, and inclination of the object, we have to determine a value for Cl to determine the lift.

What does lift coefficient depend on?

To summarize: Lift = Cl x dynamic pressure x area. Cl depends on geometry, angle of attack, and some constant. Dynamic pressure = 0.5 x density x velocity squared.

What is a good coefficient of lift?

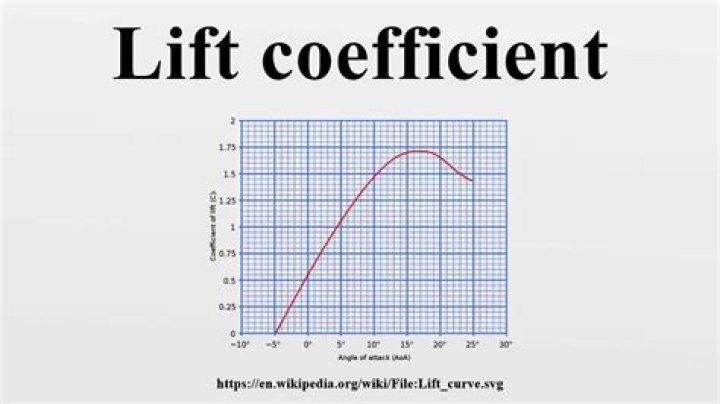

Lift Coefficient: Incidence A typical value for the type of airfoil section mentioned is about 1.5. The corresponding value of is around 18 degrees. Figure 1.23. Typical lift curves for sections of moderate thickness and various cambers.

What does a negative lift coefficient mean?

So for the Lift coefficient to be negative the lift should be negative, and that would mean that the foil is falling downwards instead of lifting upwards.

What are coefficients?

In mathematics, a coefficient is a multiplicative factor in some term of a polynomial, a series, or any expression; it is usually a number, but may be any expression. For example, if y is considered as a parameter in the above expression, the coefficient of x is −3y, and the constant coefficient is 1.5 + y.

How do you increase the coefficient of lift?

A leading edge flap increases the curvature of the top of the airfoil. This considerably increases the lift coefficient. A movable slat (slotted leading edge flap) increases the lift through a combination of increased wing area and increased camber and through the influence of the flow with the aid of the slat.

How is lift generated?

An airfoil generates lift by exerting a downward force on the air as it flows past. According to Newton's third law, the air must exert an equal and opposite (upward) force on the airfoil, which is lift. The airflow changes direction as it passes the airfoil and follows a path that is curved downward.

What is coefficient of lift and drag?

The lift to drag ratio (L/D) is the amount of lift generated by a wing or airfoil compared to its drag. The lift/drag ratio is used to express the relation between lift and drag and is determined by dividing the lift coefficient by the drag coefficient, CL/CD. A ratio of L/D indicates airfoil efficiency.

Which flap gives the best lift coefficient?

This allows the slotted flap to be used for takeoff. The most popular flap on aircraft today is the slotted flap. Variations of this design are used for small aircraft, as well as for large ones. Slotted flaps increase the lift coefficient significantly more than plain or split flaps.

What is an lift?

An elevator or lift is a vertical transport vehicle that efficiently moves people or goods between floors of a building. They are generally powered by electric motors that either drive traction cables and counterweight systems, or pump hydraulic fluid to raise a cylindrical piston.

What is force coefficient?

Force coefficients are defined for wind forces acting normally towards the wind frames, irrespective of the actual wind direction.

What is Dynamic Lift?

Dynamic lift is the force that acts on a body by virtue of its motion through a fluid. For example, during the game of cricket, tennis, baseball or golf, we have noticed that a spinning ball deviates from its parabolic trajectory during its motion in the air.

How do you find the velocity?

Divide the total displacement by the total time. In order to find the velocity of the moving object, you will need to divide the change in position by the change in time. Specify the direction moved, and you have the average velocity.

What are the different types of airfoils?

Airfoils – Airfoil Types

Symmetrical Airfoil. The symmetrical airfoil is distinguished by having identical upper and lower surfaces.
Nonsymmetrical Airfoil (Cambered)
Blade Twist.
Rotor Blade and Hub Definitions.
