How do you dig holes for chain link fence?
Dig post holes three times wider than the post diameter: 6 to 8 inches for end and corner posts, 4 to 6 inches for line posts and 1/3 of the length of the pole plus 4 inches for gravel. Fill all the holes with 4 inches of gravel and tamp. Add 6 inches of concrete to the corner, gate and end post holes only.
.
In this regard, how deep do chain link fence posts need to be?
If you decide to install your chain link fence without concrete, use a post-hole digger to make a hole deep enough to bury the posts at least two feet, or about 1/3rd of the height. Never pound the posts into the ground, especially if you have hard clay or rocky soil, because you'll bend the tops.
Similarly, how is chain link fence made? Manufacturing. The manufacturing of chain-link fencing is called weaving. A metal wire, often galvanized to reduce corrosion, is pulled along a rotating long and flat blade, thus creating a somewhat flattened spiral.
Also, do you have to cement chain link fence posts?
Traditionally, chain link fences are held in place by buried posts surrounded in concrete. However, it is possible to install a chain link fence without concrete. With a hole that is the proper size, either gravel or a polymer backfill can keep fence posts in place for many years.
Is 2 feet deep enough for fence posts?
The minimum depth that you should dig your fence post holes for panel sections is 2 feet. A general formula is to dig the holes one-third to one-half of the post's aboveground height. The deeper you dig the holes, the more stability your fence has, but you must also purchase longer posts.
Related Question AnswersHow do you anchor the bottom of a chain link fence?
Install tension wire on the bottom of the fence line. This wire reinforces the bottom of a chain link fence and helps prevent the bottom from 'pulling' up if an animal tries to push the fabric out and away from the fence line.How long does it take to install a chain link fence?
How Long Does Chain-Link Installation Take? It will take approximately one day to set posts in concrete. It takes one more day to install 150 feet of fence. Some companies can install the posts in concrete and the fencing all in one day.What is the average cost to install a chain link fence?
On average, it costs between $8 and $18 per linear foot to install a chain link fence nationwide. The length and height of the fence are the primary factors that affect the total cost of the fence installation project.What is a terminal fence post?

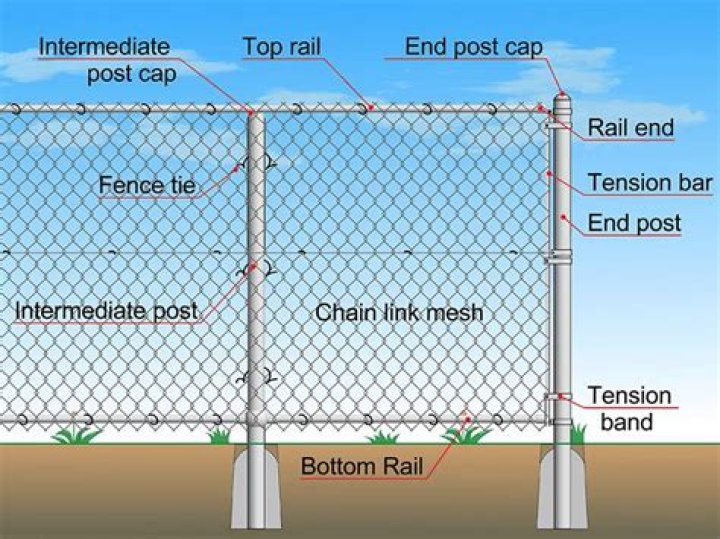

Terminal post - The load-bearing post for a line of fencing. The terminal post can be a corner, end or gate post. Tie - Wire, clip, or band used to attach the fabric to the top rail and line posts.How many tension bars do I need for chain link fence?
Order one per hook-up, same length as height of fence being installed. Ordering one extra tension bar per fence job as it is convenient to use one to stretch with using either a pull chain, or chain link stretch bar. Use 5/8" wide bars for residential applications and 3/4" wide bars for commercial applications.How much concrete do I need for a chain link fence post?
Each hole for the terminal posts must be 8 inches in diameter and 30 inches deep, requiring 0.85 cubic feet of concrete to fill.How much concrete do I need for fence posts?
Also 1-1/2 bags per hole is about right for a 4x4 fence post. Also remember, the depth of the post hole should be one-half of the above-ground post height. (Example: For a 6' above ground post, use a post with an overall height of 9 feet and place 3 feet in the ground).How far apart are fence posts?
Typically, fence posts are spaced between six and eight feet apart. The corner posts are set first. To align all of the posts in between, stretch a line from each corner post to work as your guide.How do you tighten a chain link fence?
How to Stretch a Chainlink Fence- Roll out the chain-link mesh against the fence frame starting at one corner post.
- Hold the tension bar in place along the pole and fasten to the pole with brace bands spaced 1 foot apart.
- Stretch the mesh out between the corner posts with a pulling rod.
- Hook one end of a come-along to a brace band on a corner post.
How do you install chain link gates to wooden posts?
How to Install a Chain Link Gate to an Existing Wood Post- Test fit the gate by positioning it on the gate post.
- Attach the female portions of the hinges to the stile (vertical pipe) on the hinge-side of the gate by spreading the large open rings and placing them around the pipe.
- Align the male-portion of the top hinge to the vertical line and height mark on the gate post.
How do you fill a gap under a fence?
Multiply the length of the gap by the height and width of the gap to determine the cubic feet of the area. Purchase enough rocks or stones to fill the volume. Dump the rocks or stones into the gap beneath the fence. Use a bow rake to spread the rocks or stone over the area.Is chain link fence the cheapest?
Chain link fences are a more inexpensive option that can make them attractive for covering large areas in need of security, like around a business or industrial area. For a 4-foot high, 209-yard fence, materials range in price between $7 and $12 per linear foot.How do you anchor a fence post without concrete?
Procedure:- Find a concrete surface and lightly tamp your digging iron against it.
- Remove the turf and topsoil from the site of the post.
- Dig the hole putting the displaced earth onto the tarp.
- Pour 4 inches of gravel into the hole.
- Place the post in the hole.
- Add another 2 inches of gravel around the base of the post.
How much does 100 feet of chain link fence cost?
To have the fencing professionally installed typically costs around $8 to $14 a linear foot in labor, or around $1,600 to $2,800 in labor for a 200 linear foot fence , making the total cost around $15 to $26 a linear foot or $3,000 to $5,200 for 200 linear feet on average.How deep should metal fence posts be buried?
The depth of the hole should be 1/3-1/2 the post height above ground (i.e., a 6-foot tall fence would require a hole depth of at least 2 feet). Add about 6 inches of QUIKRETE All-Purpose Gravel into the bottom of the hole.How do you install a chain link fence on a hill?
How to Install Chain Link Fencing on a Hill- Measure the placement of your posts.
- Dig holes to plant your fence posts in the spots marked by the stakes.
- Plant your posts, making sure that they stick out of the ground at the same height.
- Fill the holes with dirt and pat them down, checking each time to ensure that the post height is accurate.
