How do you construct a triangle when the three sides are given?

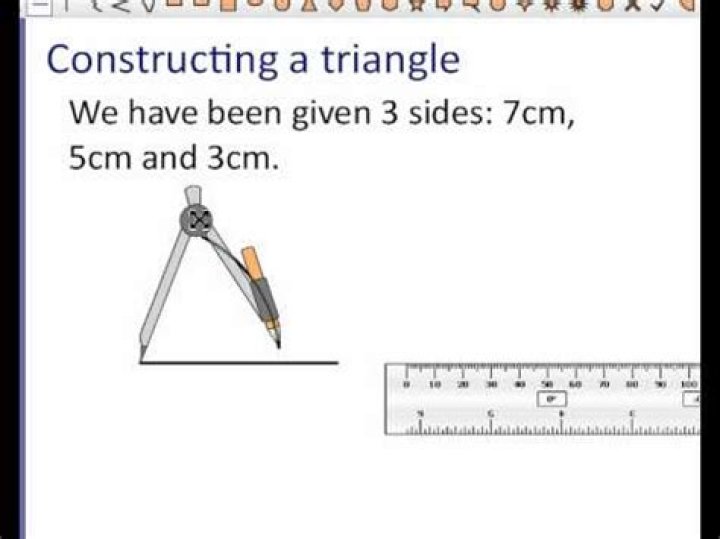

Construction of Triangle When Three Sides are Given - Example

1. Step 1 : Draw a line segment BC = 6cm.
2. Step 2 : With 'B' as centre, draw an arc of radius 4 cm above the line BC.
3. Step 3 : With 'C' as center, draw an arc of 5 cm to intersect the previous arc at 'A'
4. Step 4 : Join AB and AC.
5. Step 1 :
6. Step 2 :
7. Step 3 :
8. Step 4 :

.

In respect to this, how many triangles can be constructed if 3 sides are given?

If this property holds, then one triangle you can form. Each next triangle with the same sides lengths will be congruent to the first triangle by SSS postulate. SSS postulate says: If the three sides of a triangle are congruent to the three sides of another triangle, then the two triangles are congruent.

Additionally, what is a unique triangle? The two angles and any side condition determines a unique triangle. Since the condition has two different arrangements, we separate it into two conditions: the two angles and included side condition and the two angles and the side opposite a given angle condition.

Simply so, how can we construct a triangle?

Constructing triangles given SAS

1. Draw the longest side using a ruler.
2. Use a protractor to measure the 40° angle. Put the centre of the protractor on the point A.
3. Use a ruler to draw a line from A to B so it is 4 cm long.
4. Draw in the third side of the triangle from B to C.

What side lengths Cannot form a triangle?

All you have to do is use the Triangle Inequality Theorem, which states that the sum of two side lengths of a triangle is always greater than the third side. If this is true for all three combinations of added side lengths, then you will have a triangle.

Related Question Answers

How do you draw a triangle with a ruler?

Method 1 Using a Compass

1. Draw a straight line. Lay your ruler on the paper, then trace a pencil along the straight edge.
2. Span the segment with your compass.
3. Trace a quarter-circle arc.
4. Switch the compass around.
5. Draw a second arc.
6. Mark the point where the two arcs cross.
7. Finish the triangle.

What is a perpendicular bisector of a triangle?

The perpendicular bisector of a side of a triangle is a line perpendicular to the side and passing through its midpoint. The three perpendicular bisectors of the sides of a triangle meet in a single point, called the circumcenter .

What is a scalene triangle?

Scalene Triangle. A scalene triangle is a triangle that has three unequal sides, such as those illustrated above. SEE ALSO: Acute Triangle, Equilateral Triangle, Isosceles Triangle, Obtuse Triangle, Triangle. CITE THIS AS: Weisstein, Eric W. "

How do you construct a perpendicular bisector?

The perpendicular bisector of a line segment

1. open the compass more than half of the distance between A and B, and scribe arcs of the same radius centered at A and B.
2. Call the two points where these two arcs meet C and D. Draw the line between C and D.
3. CD is the perpendicular bisector of the line segment AB.
4. Proof.

How many unique triangles are there?

Answer: 15 unique triangles can be made. Step-by-step explanation: Given : A triangle has one angle measures 60° and another angle is an obtuse angle .

How many possible triangles can be formed?

If angle A is acute, and a = h, one possible triangle exists. If angle A is acute, and a > b, one possible triangle exists. If angle A is acute, and h < a < b, two possible triangles exist.

How do you construct a quadrilateral?

1. Construct quadrilaterals when four sides and one diagonal is given.

1. Draw Δ PQR using SSS construction condition.
2. With P as the centre, draw an arc of radius 5.5 cm.
3. With R as the centre, draw an arc of radius 5 cm.
4. S is the point of intersection of the two arcs.
5. PQRS is the required quadrilateral.

How do you construct a rectangle?

For example, here is one way to construct a rectangle:

1. Choose arbitrary points A and B in the plane and draw segment AB.
2. Raise a perpendicular m to AB at A.
3. Raise a perpendicular n to AB at B.
4. Choose an arbitrary point C on line n.
5. Drop a perpendicular from point C to line m.
6. Then quadrilateral ABCD is a rectangle.

Can we construct a triangle with three angles?

A triangle has three sides and three angles. We can construct a triangle when we know some of its measurements, that is, its sides, its angles, or some of its sides and angles.

How do you construct an angle?

45 Degree Angle

1. Construct a perpendicular line.
2. Place compass on intersection point.
3. Adjust compass width to reach start point.
4. Draw an arc that intersects perpendicular line.
5. Place ruler on start point and where arc intersects perpendicular line.
6. Draw 45 Degree Line.

How do you draw a perfect triangle without a compass?

Rotate the ruler until the mark representing the length of the base line touches the perpendicular bisector. If it cannot touch, extend the bisector. Draw the line, then repeat this process to draw the third line. You now have a triangle with three congruent sides and three congruent angles, or an equilateral triangle.

How do you construct a triangle without a protractor?

Bisecting angles without a protractor

1. Place the compass on the vertex of the angle (point B). Draw an arc across each arm of the angle.
2. Place the compass on the point where one arc crosses an arm and draw an arc inside the angle.
3. Use a ruler to join the vertex to the point where the arcs intersect (D).

How do you construct a perpendicular line?

Construct: a line through P perpendicular to given line.

1. STEPS:
2. Place your compass point on P and swing an arc of any size that crosses the line twice.
3. Place the compass point on one of the two locations where the arc crossed the line and make a small arc below the line (on the side where P is not located).
