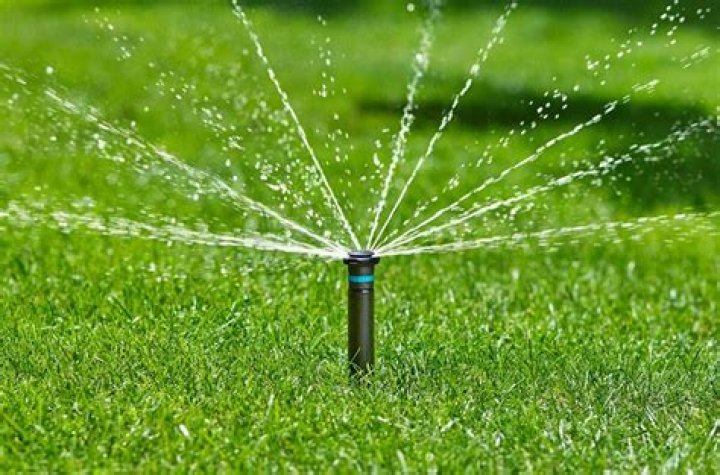

How do you connect a poly pipe to a sprinkler head?

Install a "T" fitting in the poly tubing with the trunk of the "T" pointing up. Cut a short piece of tubing and push it onto the open end of the barbed "T." Push a barbed adapter into the other end of the short piece of tubing and screw the sprinkler head onto the threaded end of the fitting.

.

Besides, can I use poly pipe for sprinkler system?

The standard 1" PVC pipe used for lawn sprinkler systems is rated to withstand 200 PSI. Comparable 1" Poly pipe is rated to withstand 100 PSI. In fact, to achieve the same pressure rating as PVC, the walls of poly would have to be 2 times thicker. Poly pipe uses squeeze clamps or saddle fittings which are unrated.

Additionally, how many sprinklers can I run on one line? At different pressures, the sprinkler head and nozzle will consume different amounts of water. For example, at 35 pounds per square inch (PSI) the 5000 Series Rotor using the 3.0 nozzle will use 3.11 gallons per minute (GPM). If your home's water capacity was 10 GPM, you could place 3 heads per zone.

Subsequently, question is, should I use Teflon tape on sprinkler heads?

For irrigation systems the recommended sealer is PTFE thread seal tape (often called Teflon® tape.) Do not use “pipe dope” (liquid or paste type sealers) on irrigation systems! If it comes in a tube or bottle, don't use it. Look on the bottom of many sprinklers and you will see the warning “Don't use pipe dope”.

How long will poly pipe last underground?

Typical life time for poly pipe is suggested to be 50 – 100 years, depending on use and application.

Related Question Answers

How deep should irrigation lines be?

Basic Depth Requirements In most areas, burying the pipes 8 to 12 inches below the surface is adequate. This measurement is from the top of the pipe to the surface of the soil, which means your trenches must be slightly deeper to accommodate the pipes.

Can you bury poly tubing?

PIPE OR TUBING: The pipe commonly used for drip systems is polyethylene, often called 'poly tubing' . Standard mainline tubing is usually ½ inch (0.600” ID x 0.700 OD). Stick with commercial grade products from irrigation supply stores. This poly supply line can be buried, but more often is laid above ground.

How do you install a sprinkler system yourself?

1. plot types and locations of sprinkler heads. Plan the System.
2. install an anti siphon valve. Access the Water Line.
3. dig the trench for system.
4. attach one end of valve manifold assembly to water.
5. attach risers using 90 degree connectors.
6. level sprinkler heads with soil level.
7. timer controls length and frequency of waterings.

How do I connect the main water line to my sprinkler system?

Connecting a Lawn Irrigation System to a Home Water Supply

1. Tap the outside faucet. Unscrew the outside faucet and install a 1-inch galvanized or copper tee fitting facing down.
2. Tapping the main line. Cut a section out of your main line and install a compression tee fitting.
3. Tapping the basement water meter.

How far can you run funny pipe?

. 612 x 5 feet per second= 3.06 gallons per minute. HUZZAH! The maximum flow from funny pipe not exceeding 5fps is 3.06 gpm!

Where are PVC sprinkler lines?

If you don't immediately hit a pipe, insert your probe rod a few inches to the left and then to the right until you find the pipe. Sprinkler pipes are often 8 inches below the surface, but main supply lines can be up to 18 inches below.

How do you cap a sprinkler head without digging?

Cut the pipe just past the tee fitting leaving enough pipe sticking out of the tee to cap it. Dig up the dirt around the sprinkler you want to remove and unscrew it from the fitting beneath it. The pipe can be abandoned, as it is no longer connected to the irrigation system.

What is the best size pipe for a sprinkler system?

When you install a sprinkler system, you might use PVC or polyethylene piping to deliver water to the sprinkler heads. If you use PVC, the typical diameter of the pipes is between 1/2 inch and 2 inches. The right size pipe depends on the overall capacity of your system.

What is the best pipe for irrigation system?

Polyethylene is the best bet for special situations in areas where sprinkler and irrigation systems require flexibility. Both types of pipe are durable and can withstand many elements in the environments where they excel.

What type of pipe is used for sprinklers?

The two piping types most commonly used for irrigation systems are white PVC (polyvinyl chloride) and “black roll pipe ” (polyethylene).

Which is better PVC or PEX?

When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won't corrode. When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)

Can you use PEX for sprinklers?

Cross-linked polyethylene, or PEX, pipe is another product making its way into the irrigation industry. It has a higher burst pressure, which is great for high-pressure mainlines, Stryker says, and PEX can withstand freezing temperatures so it can be used in any environment.

What is the difference between PVC and polyethylene?

Polyethylene (PE) and polyvinyl chloride (PVC) are the plastic pipes most often used for underground utility construction. PE is more flexible than PVC. A primary difference is the way lengths of pipe are joined together and to other pipe materials. Compressed air or gases ought to not be introduced in to PVC pipes.

Will poly pipe freeze and burst?

Due to its flexibility, PEX has a small margin of expansion under the damaging pressure caused by ice formation. If the weather gets cold enough, PEX pipes can and will freeze like any plumbing. However, PEX may be less likely to rupture as a result of freezing.

What schedule PVC for sprinkler system?

Schedule 40 and Schedule 80 PVC Pipe When it comes to selecting PVC irrigation pipe, both Schedule 40 and Schedule 80 pipe are common types of irrigation PVC pipes. They handle pressure roughly the same, so you won't have to worry about more frequent breaks if you opt for Schedule 40.

Does plumbers tape prevent leaks?

Teflon tape is an absolute essential for most plumbing projects. Its physical composition allows it to fill pipe threads and fitting threads with a sealant that will prevent water from leaking through the thread connection.

Should I use Teflon tape on plastic threads?

Don't use Teflon tape, Teflon paste or pipe dope. Teflon paste and pipe dope, just like Teflon tape, make threaded joints slippery. Their use on PVC fittings can be an invitation to over-torque. When working with threaded plastic fittings do use a proper sealant.

How do you seal plastic threads?

When working with threaded plastic fittings do use a proper sealant. The right sealant for threaded joints is non-hardening, compatible with plastic and doesn't add slipperiness. A non-hardening compound is forced by water pressure into potential points of leakage, thereby performing a true sealing function.

How much does it cost to replace a sprinkler head?

The average cost to repair your sprinkler system is $75 to $250, with most homeowners paying $212. Most sprinkler repairs involve replacing sprinkler heads at $5 to $20 per head, or replacing valves at $20 to $40 per valve, not including the cost of labor of about $75 an hour by a professional plumber.
