How do you clean misting nozzles?

Cleaning Misting Nozzles

1. Remove the clogged nozzle from the system.
2. Remove the O-ring from the misting nozzle.
3. Soak the clogged misting nozzle or misting nozzles in white vinegar or CLR for at least an hour.
4. Rinse the misting nozzle, flush your misting lines and mount the misting nozzles back into your misting system.

.

Also asked, how do you clean brass spray nozzles?

1. Remove the brass misting nozzle from the hose, sprinkler head or water line.
2. Fill a small bowl with vinegar and place the nozzle in it, ensuring that the tip is submerged. Allow it to soak in the vinegar for roughly five minutes.
3. Tip. Vinegar also acts as a powerful brass cleaning and polishing agent.

how far apart should misting nozzles be? Place mist nozzles 24 in. apart for mist lines mounted 8 ft. to 10 ft. above the ground. Nozzle spacing should be shortened if mist line is mounted higher.

In respect to this, how do misting nozzles work?

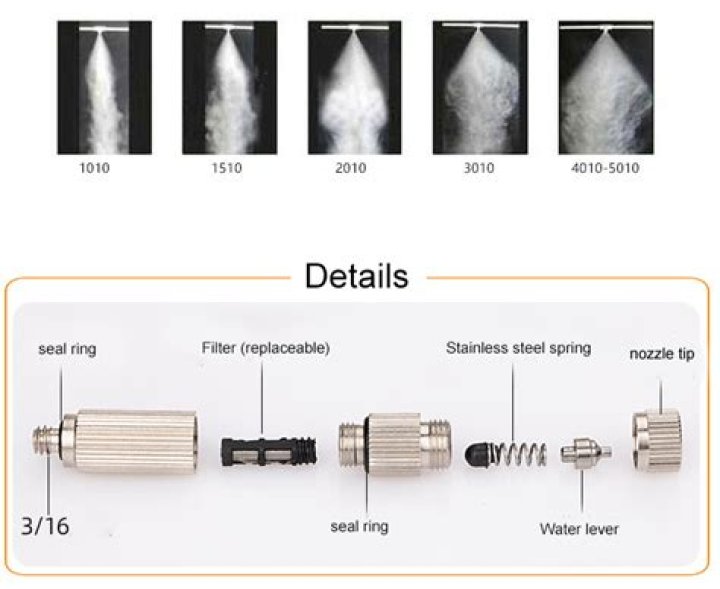

One of the most important components of a cooling system is the misting nozzle. When attached to high-pressure pumps, water is forced through nozzles, forming droplets which evaporate into mist when they reach the outdoor air. This can reduce the temperatures by 35 to 40 degrees Fahrenheit.

How do you clean spray water nozzles?

How to Clean Water Mister Nozzles

1. Remove the nozzle and tap it on a hard surface; this might be enough to dislodge the mineral accumulation.
2. If simply tapping the nozzle fails to remove the deposits, remove the o-ring and soak the nozzle head in a small amount of Aeromist biodegradable nozzle cleaner or white vinegar for about 30 minutes.

Related Question Answers

How do you clean a humidifier?

Fill the water tank with a cup of vinegar and a gallon of water. Plug it in outside and let the humidifier run for an hour. After an hour, pour out the remaining liquid from the tank, rinse it with clean water, then fill it with clean water and run the humidifier for another hour.

Do misters use a lot of water?

Because Koolfog misting systems use water for humidification, cooling and other forms of environmental control, we are often asked “how much water is actually used.” The simple answer is this: approximately one gallon of water per hour per nozzle using a standard misting nozzle.

Do patio misters use a lot of water?

The amount of water used by your cooling misters will depend on a number of factors including the type of nozzle, number of nozzles, and frequency of use. Most residential systems include nozzles that consume between a 0.5 gal and 1.5 gal of water per hour.

How do you install misting nozzles?

Glue the nozzles onto the pipe using PVC glue to coat the end of the PVC pipe. Insert the low pressure misting nozzle over the pipe and gently turn to lock into place. Continue priming and gluing the other nozzles and pipes for the straight run of the misting system.

How much does a misting system cost?

For a high-quality outdoor misting system, expect to pay $1,500 to $3,500 or more. Such a system should include a pump that boosts water pressure to 1,000 psi. If purchased separately, a misting pump costs approximately $500 to $1,500, though high end units could cost upwards of $5,000.

What is mist nozzle?

Misting nozzles function in cooling by atomizing pressurized water into aerosol particles that "flash-evaporate". The smaller the water droplets, the better the cooling. We typically suggest using the . 012" nozzle orifice in dry climates and the .

How much pressure should be in a misting system?

A High Pressure system will give you the maximum cooling of any misting system -- even in areas with high humidity -- without getting anything wet. High pressure, by default is anything over 250 psi / 17 bar. But these systems usually range much higher -- in the neighborhood of 800 - 1200 psi / 55 - 83 bar.

Do you need a pump for a misting system?

While low pressure mister systems operate off your home's natural water pressure, most people will need a pump to make their misting system truly effective, as the small, fine water droplets required for quick evaporation cannot be achieved by low water pressure.

How do you keep your misters from clogging?

Remove the clogged nozzle from the system. Remove the O-ring from the misting nozzle. Soak the clogged misting nozzle or misting nozzles in white vinegar or CLR for at least an hour. Rinse the misting nozzle, flush your misting lines and mount the misting nozzles back into your misting system.

Where do you put misters?

Where to Position a Mist Line

• Since most misting systems are installed after the structure is built, the mist line has to be installed on the exterior of the structure.
• When installing a misting line, be sure to mount it at a proper height and point it into an area with good airflow.

What are the two main types of mist systems?

Mist systems use nozzles that have droplets that are greater than 50 microns in size. The two main nozzle types are pressure jets, whirl-type and deflection nozzles.

Do misting systems work in high humidity?

In essence, a misting fan works seamlessly to cool an area in any sort of an environment. However, there is a common misconception that it does not work well in humid areas. Otherwise, misting fans work best in areas where there is humidity. Since it is a cooling device, it is meant to be used in warm climates.
