How do you clean an engine commutator?

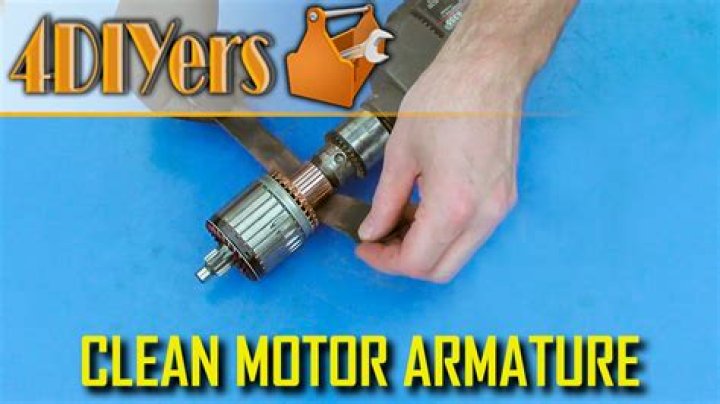

To clean the commutator, use a commutator cleaning brush (fiberglass) and some electric motor cleaner. Never use emery paper because it has metal particles in it that if rubbed off could cause electrical shorts. Remove the brush springs, slide the brush across the commutator hood and spray.

.

Similarly, it is asked, how do you clean electric motor windings?

Originally Answered: How do I wash the winding of an electric motor? Dip the winding in hot fresh water and let it stay there for ~ 20 min to loosen dirt & grease. Repeat if necessary. Air dry and if feasible oven dry thereafter.

Furthermore, how do I stop the commutator from sparking? If there is sparking do following.

1. Clean commutator with CRC 'contact cleaner'.
2. Check that there is no uneven wear out of commutator.
3. Check carbon brush wear by measuring length.
4. Check proper grade of carbon brush.
5. Check commutator shaft bearings for play.
6. Check that motor is not dirty from inside esp.

Besides, can a commutator be repaired?

Mold-type commutators are not repairable and must be replaced if damaged. When a commutator comes in for a repair, units are disassembled and rebuilt with new copper and mica segments using the same quality assurance processes applied to new commutators.

How can you tell if a brush is bad?

Shaking and slapping will not have an effect for power switch issues. If there's a banging sound inside the tool's motor when it runs, then it's probably a brush. It could also be a bad armature, but if that is the case then it's most likely that the brushes will have to be replaced anyway.

Related Question Answers

How do I know if my electric motor brushes are bad?

Similar to a tool that won't start, check your carbon brushes for any heavy wear or signs of damage. If your brushes are clear, there may be damage to your tool's commutator or the rest of the assembly. Discoloration, buildup and even melted insulation are signs that these parts are the root cause.

How does a commutator work?

A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced.

Can an armature be repaired?

Commutators. This fault can usually be repaired without rewinding the armature by turning the commutator brush surface down below the damage and then undercutting the insulation between the commutator segments.

Why should you not use emery cloth for polishing the commutator of an appliance motor?

Answer Expert Verified It is not ideal to use emery clothe to clean commutator because, particles of emery are conductive and they may short circuit the commutator bars. If the commutator becomes black, the best way to clean it is by wiping it with dry, lint free cloth. The motor could also be vacuumed using dry air.

Why is my electric motor sparking?

Sparking is another common problem on electric motors. Sparking can be caused by numerous conditions like motor overload, vibration, high humidity, worn brushes and worn commutators. When checking for sparking or arcing, a good visual inspection of the commutator and brushes will have to be performed.

How do you clean a small electric motor?

Part 2 Cleaning the Components

1. Wipe the dirt off the motor's exterior with a rag. Avoid dampening, since you don't want to get water in the electrical components.
2. Brush dirt off wired areas 220 to 240-grit sandpaper.
3. Clean the inside of the motor with a rag and degreaser.

How do you take apart a motor?

How to Take an Engine Apart

1. Drain the fluids from the engine.
2. Remove the radiator hoses and radiator.
3. Remove all of the external accessories.
4. If the vehicle is carbureted, remove the carburetor from the intake manifold.
5. Disconnect all wires and hoses from the engine.
6. Unbolt the transmission from the engine.
7. Attach the engine hoist to the engine.

How do you clean a motor?

Spray the degreaser over the entire engine and let it soak for the recommended time. Apply additional coats (if needed) to really greasy areas. Then rinse with a water mist, using as little water as possible. An engine degreaser works best when the grease is warm and soft.

Can electric motors get wet?

Mechanical failures, over-current failures and damage due to water are also very common. Moisture affects the performance of electric motors. It greatly contributes in the corrosion of the motor shafts, bearings and rotors. This can lead to an insulation failure also.

How do you maintain an electric motor?

Maintain high insulation resistance at all time and measure the insulation resistance by megger regularly. Keep the bearings lubricated properly and change the bearings at the recommended intervals. Maintain a uniform air gap. Keep the motor clean and dry always.

Can you fix a burnt out electric motor?

If an electric motor operates at too high a voltage, excess current flowing through the windings can cause them to become hot and burn out. While it is normally not practical to repair small, direct current (DC) motors that have burned out, other motors can be repaired by rewinding.

What are the causes of sparking on the commutator?

Sparking and bar burning are usually due to one or more of the following causes:

• Brushes not in the proper position.
• Incorrect spacing of brushes.
• Projecting-bar-edge mica.
• Rough or burned commutator.
• Grooved commutator.
• Poor brush contact.
• Worn brushes replaced by others of wrong size or grade.
• Sticking brushes.

What is a difference between the way in which a motor works and the way a generator works?

The main difference between the two is that the Motor is an electric device which converts electrical energy into mechanical energy. The generator is vice versa of that motor. It converts mechanical energy into electrical energy.

How do you test a motor?

If the shaft turns freely, set the multimeter to its ohms function to check resistance. The windings (all three in a three-phase motor) should read low but not zero ohms.

How does a commutator reverse the current?

Once the coil completes half a turn (just ignore we have a commutator), then the forces on the coil will be opposite. So the coil has a tendency to rotate in the opposite direction. So the commutator reverses the current in every half turn producing a steady torque and the armature coil rotates in a single direction.
