How do you calculate wire AWG?

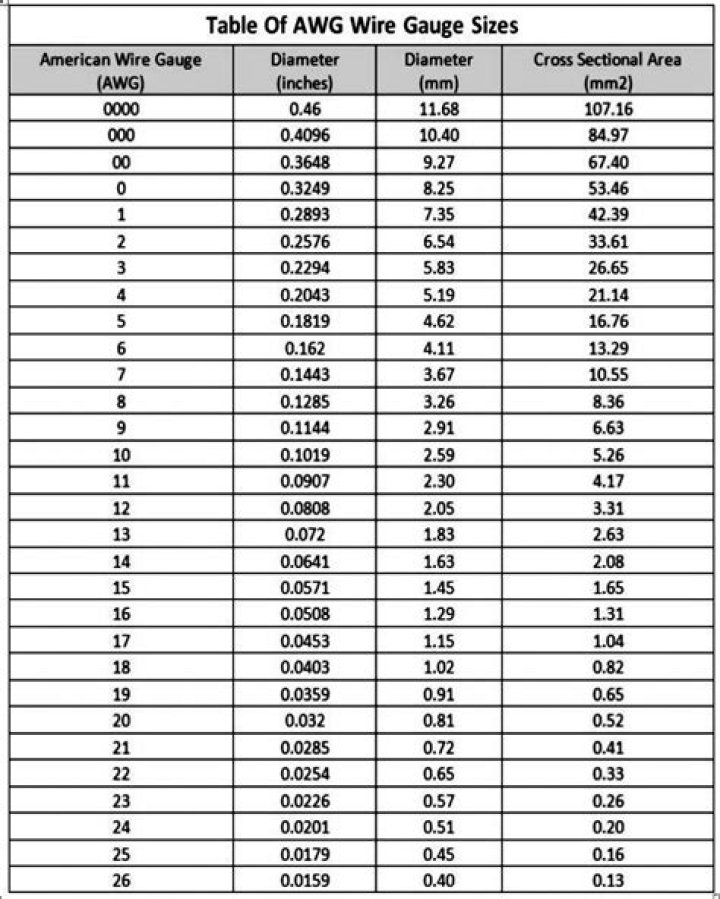

AWG: In the American Wire Gauge (AWG) system, wire size diameters can be calculated by applying the formula D(AWG)=. 005·92⁽⁽³⁶^-^AWG^)/³⁹⁾ inch. For the 00, 000, 0000 etc.

Herein, what is AWG in cable?

Simply stated, AWG or American wire gauge is the standard system that determines a cross section of a wire using a gauge for solid, round electrical wires. The higher the AWG number, the thinner or smaller the wire. Used since 1857, AWG has helped users determine a wire's current-carrying ratings.

Also, how many amps can 2 AWG wire handle? Wire Size & Amp Ratings

Copper	Aluminum
Wire Gauge Size	60°C (140°F) NM-B, UF-B	90°C (194°F) XHHW-2, THHN, THWN-2
14	15	---
12	20	25
10	30	35

Hereof, how do you calculate cable size?

Full Load Current = (KVA · 1000) / (1.732 · Voltage): Full Load Current = (100 · 1000) / (1.732 · 415) = 139 Amp.

Let's select 3.5 core 70 Sq.mm cable for single run.

Current capacity of 70 Sq.mm cable is: 170 Amp,
Total derating current of 70 Sq.mm cable = 170 · 0.93 = 159 Amp.

What gauge wire should I use?

The minimum wire size for a 30-amp, 240-volt circuit is 10-gauge, but to prevent poor performance because of voltage drop, you should consider upgrading to 8-gauge if the outlet is far from the panel. For a 50-amp circuit, you need a 6-gauge wire at a minimum.

What size wire is rated for 60 amps?

As the previous poster said, six gauge is the correct wire for 60 A.

Does stranded wire carry more amps than solid?

Common US AWG wire gauges and amps ratings Because of the small gaps between the strands in a stranded wire, a stranded wire with the same current-carrying capacity and electrical resistance as a solid wire, always have a slightly larger overall diameter. The higher the number - the thinner the wire.

What does 12 AWG wire mean?

American Wire Gauge (AWG) is a U.S. standard set of non-ferrous wire conductor sizes. The "gauge" means the diameter. Typical household wiring is AWG number 12 or 14. Telephone wire is usually 22, 24, or 26. The higher the gauge number, the smaller the diameter and the thinner the wire.

What is AWG in cable size?

American wire gauge (AWG) is a standardized wire gauge system for the diameters of round, solid, nonferrous, electrically conducting wire. The larger the AWG number or wire guage, the smaller the physical size of the wire. The smallest AWG size is 40 and the largest is 0000 (4/0).

Why is wire gauge important?

Wire gauge measures how large a wire's cross sectional area is. Knowing the gauge is important because it determines how much electric current a wire can carry without being damaged—this quantity is called ampacity.

What is 20 AWG wire used for?

Primary wire is commonly used in automotive and general electrical applications. 20 gauge wire from Del City is the ideal choice for a variety of applications include unique projects, original equipment, or replacements.

What is the difference between AWG and gauge?

Yes, AWG refers to the gauge of the conductor without the insulation, whereas the manufacturers using Gauge are referring to just the typical thickness of the wire with the insulation, so they make the insulation thicker.

How do I choose a motor wire size?

Cable size is calculated in a motor by its current rating . Thickness of the cable is directly proportional to the ampere rating.. Just divide the kW by rated supply voltage you can determine the operating current by seeing that we can determine the thickness of the wire..

What size wire do I need for AC?

It's going to completely depend on the unit that's being installed, but commonly it'll be 30-60 amp with 10-4 AWG wire. You're probably looking at a 3.5 ton unit, so you'll be in the 30-40A (10-8 AWG) range.

How many amps can 2.5 mm cable take?

A 2.5mm cable is capable of supplying around 23-25 amps depending on the method of installation, so is fine, safe and compliant on a 20amp circuit breaker.

What size wire do I need for a 100 amp service?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

Which wire is used in AC?

AC Wire Type Choices AC Wiring can be accomplished with a number of materials depending on situation and local code requirements. The most accepted method from the JBOX to the combiner or disconnect switch is 12AWG THHN (Stranded 12 gauge) copper in conduit. You can't really go wrong with that.

How many amps can 6mm cable take?

Single-Core 90°C Thermosetting Insulated Cables, Non-Armoured, with or without Sheath

Current-carrying Capacity (amperes):
Conductor cross-sectional area	Reference Method A (enclosed in conduit in thermally insulating wall etc.)	Reference Method C (clipped direct) Spaced by one cable diameter
1.5	19	25
2.5	26	34
4	35	46

Which wire is used in earthing?

GI wire is the most common material for wire from building mains to earth. Earthing is done by a copper plate burried deep underground at a level where it remains in contact with ground water beneath. A thick GI wire from this plate comes up through a pipe, and goes to the mains panel.

What is XLPE cable?

XLPE stands for cross-linked polyethylene. XLPE Cable has a high chemical resistance and moisture resistance. XLPE Cable can be used at high temperatures and high voltage applications.

Will 8 gauge wire carry 50 amps?

8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable. David, if that cable is NM (Romex) then it actually cannot carry 50 amps.

Can 12 gauge wire handle 30 amps?

A 30-amp breaker does not operate safely with a 12-gauge wire. The minimum wire size that is allowable for use with a 30-amp breaker is 10 gauge. A smaller gauge of wire indicates a larger diameter and the ability to carry more current safely. Twelve-gauge wire is acceptable with 20-amp or smaller circuit breakers.

Can 10 gauge wire handle 35 amps?

your best bet would be to look in the NEC codebook or at the manufacturers spec sheet for the wire. To put it simply though, maybe, depending on insulation type and/or designed operational temperature 10 gauge can handle anywhere from 30 - 40 amperes if it is copper and 25 - 35 amperes if it is aluminum.

Can 10 gauge wire handle 40 amps?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”
