How do you calculate the power output of a transformer?

Input and output power

1. Electrical power is calculated by multiplying voltage (in volts) by current (in amps).
2. If a transformer is 100% efficient, then the input power will equal the output power.
3. V _P is input (primary) voltage.
4. I _p is input (primary) current.
5. V _s is output (secondary) voltage.
6. I _s is output (secondary) current.

.

In this way, how do you calculate the output of a transformer?

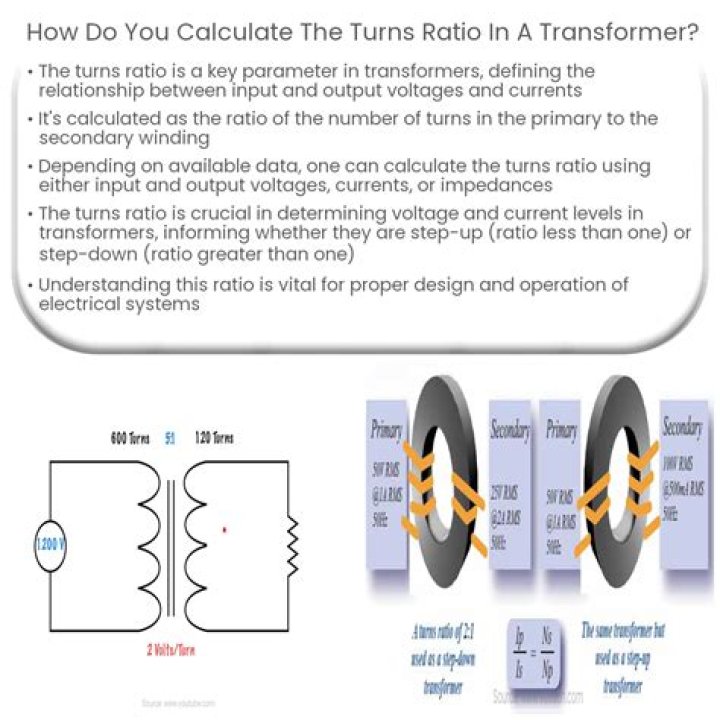

Divide the number of secondary windings by the number of primary windings, and multiply the source voltage by this ratio. This will give you the output voltage.

Furthermore, how do you calculate the maximum current of a transformer? Calculate the current from the voltage/amperage (VA) specification or the power rating designated in watts. Both figures mean basically the same thing. Divide either the VA or wattage rating of the transformer by the voltage. This will give you the current rating.

Simply so, how do you calculate the power rating of a transformer?

Calculate power rating in KVA when you know voltage and output resistance. Use the formula: P(KVA) = (V^2/R)/1000 where R is resistance in ohms. For example, if V is 120 volts and R is 50 ohms, P(KVA) = V^2/R/1000 = (14400/50)/1000 = 288/1000 = 0.288 KVA.

How is AC converted to DC?

A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.

Related Question Answers

Why are transformers rated in KVA?

The transformer does not alter the power factor of its output power. Transformers are rated in kVA because the losses occurring in the transformers are independent of power factor. KVA is the unit of apparent power.

What is meant voltage?

Voltage, also called electromotive force, is a quantitative expression of the potential difference in charge between two points in an electrical field. An example of direct voltage is the potential difference between the terminals of an electrochemical cell.

What is the output of a transformer?

This will give you the output voltage. For example, a voltage source that sends 240 volts through a transformer with 500 primary windings and 100 secondary windings would have an output voltage of 240 * (100/500) = 48 volts.

What is input and output voltage?

Input voltage :- is a voltage supplied to the circuit, input voltage is a supply voltage in the system, Input voltage is refer to the voltage needed to supply to system. Output voltage :- is the receiver part which produce voltage.

What is meant Rectifier?

A rectifier is an electrical device composed of one or more diodes that converts alternating current (AC) to direct current (DC). A diode is like a one-way valve that allows an electrical current to flow in only one direction. This process is called rectification.

How many amps is a 50va transformer?

50 VA means that it can supply 50 volt-amps. At 24 V secondary that means it can supply a little over 2 A.

How do I convert kVA to amps?

To calculate amps from KVA, you need to know the power efficiency and the voltage of the circuit.

1. Multiply the number of KVA by 1,000 to convert to VA.
2. Multiply the VA by the power factor expressed as a decimal.
3. Divide the result by the number of volts of current to calculate the number of amps.

How many kVA is 200 amps?

Generator KVA Rating to Amperage Conversion Chart 80% POWER FACTOR
kV•A	kW	208V
219	175	608
250	200	694
312	250	866

What is the formula of kVA to kW?

The kW to kVA Formula: e.g. 100 kVA x 0.8 = 80 kW. The formula for converting kW into kVA is: Actual power (kW) / power factor (pf) = apparent power (kVA) 1 ton = 200 BTU/minute.

How much load can a 25 kVA transformer handle?

and 1-h variance. For the quick charge, it takes approximately 2 h to complete. It can be seen that with EV charging during the evening peak time, the 25 kVA distribution transformer gets over loaded more than 130% for about one hour.

What is kVA mean?

kilo-volt-ampere

How many amps can a 25 kVA transformer handle?

Three Phase Transformer

KVA	208V	240V
20	56.6	48.2
25	69.5	60.2
30	83.4	72.3
37.5	104	90.3

How much current is in 11kv line?

What is the current value in 11kv, 66kv or high-voltage transmission lines, and also in a domestic supply, like 440/220 volts? Generation is normally 11 KV and Transmission is 66KV, 230KV or 400KV . I= 6000 amps. Distribution transformers are around 10MVA.

How do you determine power factor?

Calculate the apparent power, or Voltage Squared divided by Impedance, as well as True Power, by multiplying Current squared by the resistance in your circuit. The Power Factor is Watts divided by Volt-Amps. Keep reading to see examples of these calculations!

How do I calculate power?

Power is a measure of the amount of work that can be done in a given amount of time. Power equals work (J) divided by time (s). The SI unit for power is the watt (W), which equals 1 joule of work per second (J/s). Power may be measured in a unit called the horsepower.

Does a transformer increase amps?

A transformer can not create power so a step-up in a sense both increases the current and reduces it. If we have 10V ac supply and connect a 10 ohm resistor across it we will have 1 amp flowing in the resistor.

Does a transformer change current?

Transformers change electricity from one voltage level to another. But changing the voltage does not change the power. So when a transformer increases voltage, it decreases current. Likewise, if it decreases voltage, it increases current.

What size breaker do I need for a 75 kva transformer?

ok, in that case you can use a breaker 125% of the rated current of the transformer. That will be a 125 amp breaker since 125% of the rated current of a 3 phase, 75 kva transformer is 112 amps.

How many amps is a 75 kva transformer?

Three Phase Transformers, Full Load Amperes (FLC)
KVA	208V	600V
45	124	43.4
75	208	72
112.5	312	108
