How do you calculate steel in a footing?

For calculating the steel quantity for F1 type footing, you just need to calculate the required steel quantity for one footing of that type and then multiply that quantity by 10. Similarly, for F2 type footing, calculate the steel quantity for one number of footing than multiply that quantity by 5. And so on.

.

People also ask, how do you calculate footings?

How to Calculate Footing Size

1. Determine the width and length of the cement slab in inches.
2. Divide the width by 12 to convert it to feet.
3. Divide the length by 12 to convert it to feet.
4. Determine the depth or thickness that is required for the footing in inches.
5. Multiply the width by the length and then by the depth.

One may also ask, how do you calculate steel quantity for slab footing and column?

1. Get The Number Of Steel Bars: 16 mmØ bar. Number of bars = {(width of footing – 2 × clear cover) ÷ Spacing of bars} + 1.
2. Get The Length Of Bars. 16mmØ bar.
3. Calculating The Weight Of Steel Bars. Weight of steel bars = Length of bars × unit weight.

Also know, how do you calculate rebar in footings?

For example, if your footings are 140 total feet long and your footings are 24 inches wide, then multiply 140 feet times three. You will get 420 feet. This is how much vertical rebar you will need for your 24-inch footers. Because rebar comes in 20-foot pieces, divide 420 by 20 and you get 21 sticks of rebar.

How is footing size determined?

Soil Pressure = the capacity of the soil to resist a load placed on it. Column or Plate Width = The Square size of the Column or Plate that will be in contact with the top of the Footing. Allowable Load on Footings = This is the Total Load that comes down the Column to the top of the Footing.

Related Question Answers

How thick should a footer be?

Frequently a concrete footer is 20, 24 or even 30 inches wide and at least 8-inches thick. More often than not you'll see them 10-inches thick. The average foundation wall is usually only 8-inches thick (wide).

What do you mix footings with?

A concrete mix of 1 part cement : 2 parts sand : 4 parts coarse aggregate (by volume) should be used for footings. Concrete must be placed within half an hour of mixing. Brickwork – Place your concrete into your trench. Work the concrete into awkward places and corners using a shovel.

What is the formula for trapezoidal footing?

Example – Calculation Using Trapezoidal Footing Formula Let a= 0.8 m and b = 0.8m. Hence, A1= A x B = 1.5 x 1.5 = 2.25m. A2 = a x b = 0.8 x 0.8m = .

Why trapezoidal footing is used?

A trapezoidal footing, which may be used to carry two columns of unequal loads when distance outside the column of the heaviest load is limited. trapezoidal footings are used in cases where the loads are unequal. Trapezoidal footings are mostly used for residential houses and buildings.

How many types of footing are there?

There are four types of shallow foundation: Individual footing or isolated footing. Combined footing. Strip foundation.

Do you need rebar for 4 inch slab?

A concrete slab reinforced with rebar or welded wire fabric should have a minimum 1 1/2 inches of clear cover between the reinforcing and the top of the slab. On grade you can get away with welded wire fabric in most instances. Suspended slabs almost always require rebar reinforcing.

Do you put rebar in footings?

Footings with large bearing areas or unstable soil can benefit from adding rebar to prevent cracking. When rebar is placed within a footing, it should be completely encased in concrete by a minimum of 3 inches on all sides. When rebar is allowed to project out of the footings, it is susceptible to more rapid corrosion.

How do you measure a footing for cutting?

Cutting Length of one Footing Main Bar: Length = {Total length – 2(Half diameter of the bar + Clear cover) + 2(Thickness of the slab –Bottom and Top clear cover – Diameter of the bar – Half diameter of the bar)}. Length = 2 m – 2 (0.006 + 0.05) + 2 (0.250 – 0.075 – 0.05 – 0.012 – 0.006).

How long is a ton of steel?

134 pieces of 10mm reinforcement bar will give 1 ton. 93 pieces of 12mm reinforcement bar will give 1 ton. 52 pieces of 16mm reinforcement bar will give 1 ton. 34 pieces of 20mm reinforcement bar will give 1 ton.

How do you calculate bar footing spacing?

Take the total width of the footing and find out the spacing between bars. Divide width of the footing(after subtracting coverage which is generally 40–50 mm) by spacing distance between 2 bars, Result will be the total number of bars.

What is development length?

A development length can be defined as the amount of reinforcement(bar) length needed to be embedded or projected into the column to establish the desired bond strength between the concrete and steel (or any other two types of material). Fig 1: Development length in Footing.

How can calculate percentage?

1. How to calculate percentage of a number. Use the percentage formula: P% * X = Y

1. Convert the problem to an equation using the percentage formula: P% * X = Y.
2. P is 10%, X is 150, so the equation is 10% * 150 = Y.
3. Convert 10% to a decimal by removing the percent sign and dividing by 100: 10/100 = 0.10.

Where should rebar be placed in a slab?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

How do you measure steel?

Rectangular Steel Surface Measure the length and width, in inches, of the rectangular steel sheet. For example, the length might be 135 inches while the width is 50 inches. Multiply the length by the width to obtain the area of the steel in square inches.

What is the formula for weight of steel?

Unit Weight of Steel Bar When Length is in Meter If you put 1-meter length for each diameter of steel bars in the formula then you'll get the unit weight. Let's see. Unit weight of, 10mmø bar = 10² x 1/162 = 0.617 kg/m.

How do you calculate the length of a column cut?

Cutting Length for Circular Stirrup:

1. Considered the column dia as D = 1000mm.
2. Adopting Dia of Bar used for stirrups is d =8mm.
3. Deducting the concrete cover from diameter of column. D = 1000-25-25 = 950mm.
4. Circumference length of Ring = πD = 950 x 3.14 = 2983mm.
5. Total Length of the hook:
6. Total Length of Bends:

How do you calculate RCC?

You need to calculate how much concrete is required to cast the member first. Example: Consider slab area is 400 square meter, thickness of the slab is 150 mm. Concrete quantity required to cast this slab is 400*0.15 = 60 Cubic meter.

1. foundation 80.
2. column. 180.
3. slab. 150.
4. beams 180.

How do you calculate percentage of concrete in steel?

Calculate the percentage of reinforcement with the formula P = 8.33UA/t, where P is the percentage and t is the thickness. For example, the percentage of reinforcement of a 30-inch slab with two layers of No. 6 rebar spaced 4 inches on center is P = 8.33_6_0. 43/30 = 0.72 percent.

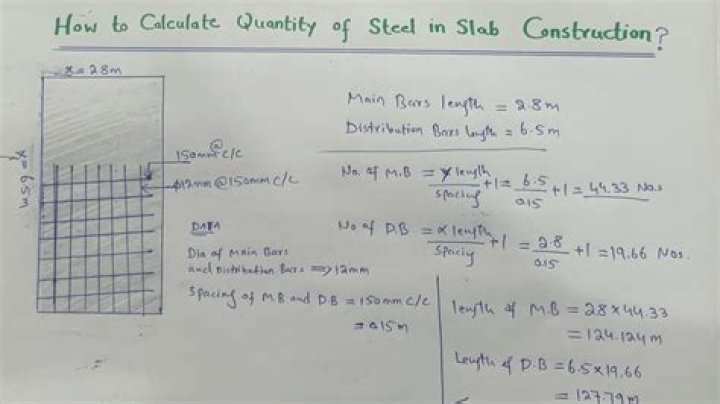

How much steel is required for slab?

Assuming it a normal residential building with light loading conditions, thickness of slab will be 120 mm. Area of slab is 1000 sft means 93 Sqm. 120mm thickness means volume is approx 11.20 cum. So, for normal conditions, steel required is approx 900 kg plus 5%=950 kg.
