The loop-current method (mesh current analysis) based on KVL: - For each of the independent loops in the circuit, define a loop current around the loop in clockwise (or counter clockwise) direction.
- Apply KVL around each of the loops in the same clockwise direction to obtain equations.
.
Simply so, what is Kvl example?
Kirchhoff's Voltage Law (KVL) states that, for any loop in an electrical circuit, the sum of the electrical voltage across the loop is zero. Let's take as example the following circuit. It has two loops, A and B, and two nodes, C and D. With the arrows is defined the positive flow of the electrical current.
Subsequently, question is, what are Kirchhoff's 3 laws? Kirchhoff's Laws are: A hot solid, liquid or gas, under high pressure, gives off a continuous spectrum. A hot gas under low pressure produces a bright-line or emission line spectrum. A dark line or absorption line spectrum is seen when a source of a continuous spectrum is viewed behind a cool gas under pressure.
Besides, can Kvl be applied to open circuit?
If you look at an open circuit as a circuit with an infinite resistance, you can apply KVL without ambiguity. Following polarity at the leaving end of the circuit elements, we have +10 leaving the source and -10 leaving the infinite resistance, which adds to zero and KVL is justified in this circuit.
What is the difference between KVL and KCL?
KVL and KCL are the two laws given by Kirchoff. KVL states that the algebraic sum of all potential differences and EMFs in closed path of electrical network is zero. KCL states that the alagebraic sum of currents at a node of an electrical circuit is zero. The method using KCL is known as nodal analysis.
Related Question Answers
What is Kvl formula?

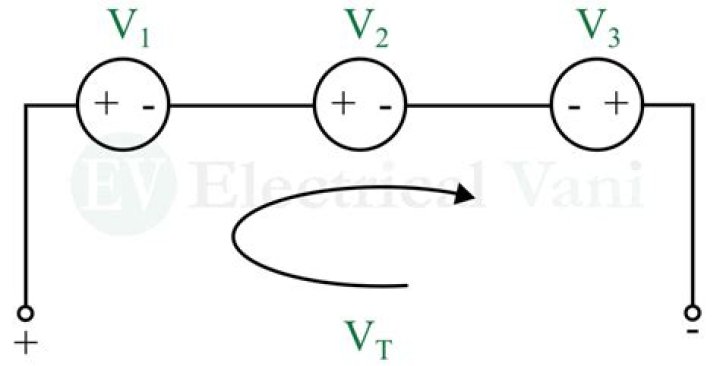

This is called KVL ( Kirchhoff Voltage Law) equation. V = VI + V2 + V3. Applied voltage = sum of all voltage drops. OR. The source voltage is equal to the sum of all voltage drops.Does Kirchhoff's law apply to AC circuits?
In other words, the sum of the total currents flowing towards the node or junction is zero. The Kirchhoff current law is also applicable in AC circuit, provided the summation of the current is done in vector form or using instantaneous value for the circuit consisting of inductors, resistor and capacitors together.What is a series circuit?
Components of an electrical circuit or electronic circuit can be connected in series, parallel, or series-parallel. In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.What is Kirchhoff's first law?
Physics Concept Kirchhoff's current law (1st Law) states that current flowing into a node (or a junction) must be equal to current flowing out of it. This is a consequence of charge conservation. Kirchhoff's voltage law (2nd Law) states that the sum of all voltages around any closed loop in a circuit must equal zero.What is KCL example?
His current law states that for a parallel path the total current entering a circuits junction is exactly equal to the total current leaving the same junction. Lets look at a simple example of Kirchhoff's current law (KCL) when applied to a single junction.What is mean by KVL?
Kirchhoff's Voltage Law (KVL) is Kirchhoff's second law that deals with the conservation of energy around a closed circuit path. His voltage law states that for a closed loop series path the algebraic sum of all the voltages around any closed loop in a circuit is equal to zero.How many Kirchhoff's laws are there?
Kirchhoff's circuit laws in electrical engineering. Kirchhoff's law of thermal radiation. Kirchhoff equations in fluid dynamics. Kirchhoff's three laws of spectroscopy.What are the positive and negative signs in Kvl?
What are the positive and negative signs in KVL? If in loop you are moving along the direction of current than take the product of I and R as positive other wise write IR product as negative. If current divides equally in a parallel circuit, then why does a greater resistor give more voltage?What is the current?
Current is the flow of electrical charge carriers like electrons. Current flows from negative to positive points. One ampere of current is defined as one coulomb of electrical charge moving past a unique point in a second. Electric current is widely used in household and industrial appliances.What is voltage divider rule?
The voltage division rule (voltage divider) is a simple rule which can be used in solving circuits to simplify the solution. Applying the voltage division rule can also solve simple circuits thoroughly. Voltage Division Rule: The voltage is divided between two series resistors in direct proportion to their resistance.Can you have negative voltage?
A negative voltage is a relative excess of electrons compared to some other point. If 0 V is no voltage. Negative voltage is an excess of electrons and positive voltage is a deficiency of electrons.How does Kirchhoff's law work?
Kirchhoffs Voltage Law or KVL, states that “in any closed loop network, the total voltage around the loop is equal to the sum of all the voltage drops within the same loop” which is also equal to zero. In other words the algebraic sum of all voltages within the loop must be equal to zero.What is Loop law?
Kirchhoff's loop rule states that the sum of all the electric potential differences around a loop is zero. It is also sometimes called Kirchhoff's voltage law or Kirchhoff's second law.What is difference between loop and mesh?
Loop: A loop is a closed path in a circuit where two nodes are not traversed twice except the initial point, which is also the final one. But in a loop other paths can be included inside. Mesh: A mesh is a closed path in a circuit with no other paths inside it. In other words, a loop with no other loops inside it.What is meant by voltage drop?
Voltage Drop - Definition. Wires carrying current always have inherent resistance, or impedance, to current flow. Voltage drop is defined as the amount of voltage loss that occurs through all or part of a circuit due to impedance. A common analogy used to explain voltage, current and voltage drop is a garden hose.What is the output of potentiometer?
In a potentiometer, the entire input voltage is applied across the whole length of the resistor, and the output voltage is the voltage drop between the fixed and sliding contact as shown below. A potentiometer has the two terminals of the input source fixed to the end of the resistor.How do you find the voltage between two points?
In most cases the voltage is measured between a particular point and the ground or zero volt line on a circuit. However this does not mean that the voltage cannot be measured between any two points. Voltages are measured simply by placing the digital multimeter across the two points where the voltage is to be measured.What is linear and nonlinear circuit?
As the name tells everything, a linear circuit means linear characteristics in between Current and Voltage, which means, current flowing through a circuit is directly proportional to the applied Voltage. A nonlinear circuit is an electric circuit whose parameters are varied with respect to Current and Voltage.What is a parallel circuit?
A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.
