How do I turn a line into a polyline in AutoCAD?

Converting Line to Polyline Type PE on the command line and press Enter to start polyline edit command, the command line will prompt you to select objects for making changes. Click on the object which you want to change to polyline, you can also select multiple objects by selecting Multiple from the command prompt.

.

In this regard, how do I turn a line into a polyline?

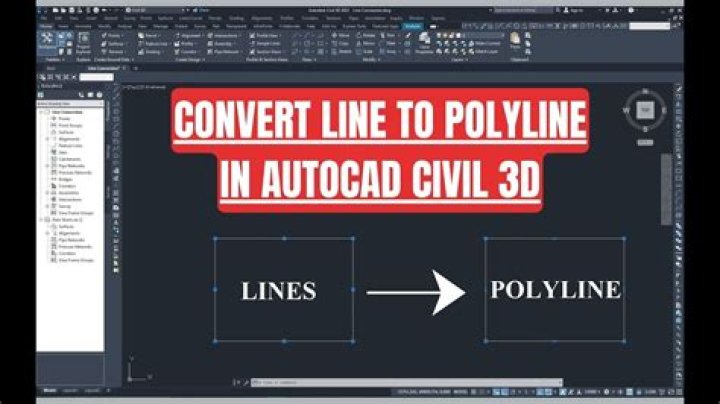

To convert LINE to Polyline, you need to use the PEDIT command, which makes it more complicated than doing the opposite operation.

How to convert LINE to Polyline

1. Type PEDIT and Press ENTER.
2. Type M and Press Enter.
3. Select objects and Press Enter.
4. Press Enter.
5. Type J and Press Enter.
6. Press Enter.
7. Press Esc (Escape)

Furthermore, how do you join lines in Autocad? To merge lines and polylines using Autocad, use Join feature as in below link:

1. Click Home tab > Modify panel > Edit Polyline. Find.
2. Select a polyline,spline, line, or arc to edit.
3. Enter j (Join).
4. Press Enter to end the command.

Simply so, how do I draw a line into a polyline in Autocad?

To Join Polylines, Splines, Lines, and Arcs Into a Single

1. Click Home tab Modify panel Edit Polyline. Find.
2. Select a polyline, spline, line, or arc to edit.
3. Enter j (Join).
4. Select one or more polylines, splines, lines, or arcs that are located end to end.
5. Press Enter to end the command.

How do I turn a spline into a polyline in Autocad?

To Convert a Spline to a Polyline

1. Click Home tab Modify panel Edit Spline. Find.
2. Select the spline to convert.
3. Enter p to convert to Polyline.
4. Specify a precision value or press Enter to end the command.

Related Question Answers

What command allows you to edit a polyline?

PEDIT

What is the difference between line and polyline?

The first, it's important to note the difference between a line or line segment, and a polyline. A line is simply a separate line or segment that is not joined to another line. While a Polyline indicates two or more lines have been joined.

How do I convert an arc to a line in AutoCAD?

To Convert Tessellated Feature Lines to Arcs

1. Click Modify tab Edit Geometry panel Fit Curve Find.
2. Select the feature line or other object.
3. Do one of the following: Move your mouse over the feature line. Arcs appear where they can be inserted. Click your mouse to insert an arc. Enter Points (P).

What is polyline in AutoCAD?

A polyline is an object in AutoCAD that consists of one or more line (or arc) segments. A rectangle is an example of a polyline that you are already familiar with. As you've seen, it is one object that can be modified and worked with easier than four separate lines.

How do you close a gap in AutoCAD?

Start the PEDIT command and at the first prompt, choose the Multiple option and select both objects. Then use the Join option. At the Enter fuzz distance or [Jointype] <5.0000>: prompt, enter a number larger than the gap to close it, and end the command. Use the Jointype suboption to specify how the gap is closed.

How do you merge shapes in AutoCAD?

To Join Objects

1. Click Home tab Modify panel Join. Find.
2. Select a source object or select multiple objects to join together.
3. Valid objects include lines, arcs, elliptical arcs, polylines, 3D polylines, and splines.

What is fuzz distance?

FUZZ DISTANCE is a distance. you can input to say join any lines. whose endpoints are this (FUZZ) far. apart.

What's the opposite of explode in AutoCAD?

The opposite of explode is still implode.

What is the use of Pedit in AutoCAD?

Common uses for PEDIT include joining 2D polylines, converting lines and arcs into 2D polylines, and converting polylines into curves that approximate B-splines (spline-fit polylines). Different prompts are displayed, depending on the type of object you select to edit.

How do you draw a perpendicular line in AutoCAD?

To Create Perpendicular Lines

1. Click Home tab Draw panel Line drop-down Create Line Perpendicular From Point Find.
2. Select the arc or line object to extend the line from.
3. Specify the point on the object where the line will extend from.
4. Specify a distance by either clicking in the drawing or entering a distance.

What is osnap AutoCAD?

The Object Snaps (Osnaps for short) are drawing aids which are used in conjunction with other commands to help you draw accurately. Osnaps allow you to snap onto a specific object location when you are picking a point. Osnaps in AutoCAD are so important that you cannot draw accurately without them.

How do you hatch in AutoCAD?

To Hatch or Fill an Object or an Area

1. Click Home tab Draw panel Hatch.
2. On the Properties panel Hatch Type list, select the type of hatch that you want to use.
3. On the Pattern panel, click a hatch pattern or fill.
4. On the Boundaries panel, specify the how the pattern boundary is selected:

How do you scale in AutoCAD?

How to Use the Scale Command in AutoCAD

1. Window select the object(s) in AutoCAD, type SCALE, and then specify a number between 0 and 1. Hit Enter. The size of the object(s) will SCALE DOWN by that factor.
2. Window select the object(s), type SCALE, and then specify a number larger than 1. Hit Enter.

What is the difference between spline and polyline?

Splines curves are curves that are represented by a special class of mathematics. Polylines on the other hand are line segments strung together. In VisualMill all splines are converted to polylines using the tolerance specified in the machining operations before the toolpath is created.

How do you explode a spline?

A spline is a single object unless or until you convert it into a polyline. If you want to do that you can use the PEDIT command and select the spline. Choose a precision value and enter. Now you will end up with an object you can explode.

What do you mean by spline?

In computer graphics, a spline is a curve that connects two or more specific points, or that is defined by two or more points. The term can also refer to the mathematical equation that defines such a curve.

How do you simplify a polyline in AutoCAD?

To simplify a polygon or polyline: Select the polygon and/or polyline to simplify. Select Modify > Drafting Aids > Simplify Polys. The Simplify Polys dialog box opens.

What is a spline in AutoCAD?

Creates a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. Find. SPLINE creates curves called nonuniform rational B-splines (NURBS), referred to as splines for simplicity. Splines are defined either with fit points, or with control vertices.

How do you convert an arc to a polyline?

If you just want to convert an arc to a polyline, there's no need to adjust any coordinate systems. Just convert the arc. In addition to MPEDIT, you can also just use the PEDIT command. If you select a line or an arc, PEDIT will ask you if you want to convert it to a polyline.
