How do I trace an image in SketchUp?

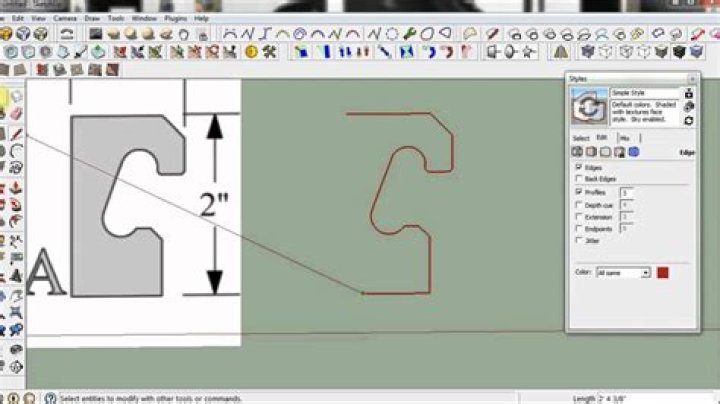

Tracing an Image

Import your image into SketchUp by selecting File > Import.
In the Use Image As area, make sure the Image radio button is selected and click Import.
Click where you want to place the top-left corner of the image, and click again to place the lower-right corner, which scales the image.

Also asked, how do I match an image in SketchUp?

When you're ready, follow these steps:

Select File > Open and select the model you want to open in the drawing area.
Select Camera > Match New Photo.
In the Select Background Image File dialog box that appears, navigate to your image file and click Open.

Subsequently, question is, how can I trace a picture without tracing paper? Place a sheet of graphite transfer paper graphite-side down atop the project surface, then place the original image atop the graphite paper. Trace the details of the image with a ball-point pen or dull pencil. Graphite from the transfer paper rubs off onto the project surface and can be erased, if necessary.

Additionally, can you import a floor plan into SketchUp?

1 Answer. On Mac SketchUp can directly import PDF's as well as raster images, but Windows can't import PDF's. In the past I've used programs such as Adobe Illustrator to convert PDF'S to DWG or DXF files.

How do you trace a picture onto paper?

Tape the corners of your image down, and layer your drawing paper on top of the image. Secure the drawing paper with tape as well, and turn the light on. Assuming your drawing paper isn't too thick, you should be able to see the image through your drawing paper. Trace the outline of your image.

Is tracing art cheating?

Tracing as part of your own work is valid use of a tool, to develop a finer quality finished drawing, to copy your own drawing, or to incorporate studies into another work. Tracing has value on it's own, it's not cheating in that sense. But it is cheating when you copy someone else's work.

How do you vectorize an image?

How to Vectorize an Image in Illustrator

Open the image in Illustrator and make sure it's selected.
Navigate to the “Live Trace” option on the control panel.
Browse the existing preset options and select one to vectorize the image.
In order to create a separate path for each color click “Expand” under the options menu.

Is there an app for tracing pictures?

SketchAR is the latest iteration of the augmented reality drawing concept that hit the App Store yesterday, and will soon be coming to Android Tango and Microsoft HoloLens. The app comes preloaded with sketches you can draw, or you can convert photos from your camera roll into easily traceable images.

Can you upload pictures to SketchUp?

Technically speaking, SketchUp enables you to import images that are already on your hard drive. When you import images from your hard drive (select File > Import to see the Open dialog box, shown in the figure), you can import the image as an image, a texture, or a matched photo.

How do I use the camera in SketchUp?

To create a camera using ACT:

Select View > Tool Palettes > Advanced Camera Tools (Mac OS X) or View > Toolbars > Advanced Camera Tools (Microsoft Windows).
Select Tools > Advanced Camera Tools > Select Camera Type > categories > camera.
Click Create Camera ( ).
Type a name of the camera in the Name field.
Click Done.

Can you Google Photos?

The Chrome browser app for iOS and Android also supports a reverse image search workaround. When you have the image you want to search, hold your finger on it until a pop-up menu appears; pick "Search Google for This Image" at the bottom. If for some reason this doesn't work, you can also select Open Image in New Tab.

How do you use SketchUp?

SketchUp is an intuitive 3D modeling application that lets you create and edit 2D and 3D models with a patented “Push and Pull” method. The Push and Pull tool allows designers to extrude any flat surface into 3D shapes. All you have to do is click an object and then start pulling it until you like what you see.

How do you add a background in SketchUp?

Here's how it works:

Select Window > Styles.
In the Styles panel, select the Edit tab and then click the Watermark Settings icon ( ).
Click the Add Watermark icon ( ).
In the Choose Watermark dialog box that appears, navigate to the image you want to use as a background.

How do you extrude an image in SketchUp?

Import your image into SketchUp by selecting File > Import. Then navigate to and select the image you want to import. If you don't see the image you're looking for, make sure the correct file type is selected (such as JPG or PNG). Tip: Alternately, you can also drag and drop importable files into the drawing area.

How do I make a 3d model from a picture?

How To Make a 3D Model from Photos in 5 Easy Steps

Step 1: Capture the object through Digital Photos.
Step 2: Create a 3D Model from Photos: Upload your images to Autodesk 123D Catch.
Step 3: Review and clean up your 3D model.
Step 4 (Bonus!): Edit your 3D Model and Tap into Your Creative Spark.
Step 5: 3D Printing Based on your Images: Print your 3D Model with i.

How do I convert a JPEG to SketchUp?

By default, the image file has the same name as your SketchUp model. From the Export Type drop-down list, select a raster file type. The raster options are JPEG, PNG, TIFF, or BMP. (Optional) Click the Options button to open the options dialog box for your selected file type.

How do you scale in Sketchup?

Here's how the process works, using a cabinet as an example:

With the Select tool ( ), select the geometry you want to scale.
Select the Scale tool ( ) or press the S key.
Click an edge or face grip (not a corner grip).
Move the cursor to scale the entity.
Click to set your selection's new scale.

How do you make a 2d image 3d in SketchUp?

How to Take Your SketchUp Model from 2D to 3D

Choose Camera→Perspective. This turns on SketchUp's perspective engine, meaning that now you can see things more realistically — the way people really see things in 3D.
Choose Camera→Standard→Iso.
Choose Camera→Zoom Extents.
Choose Camera→Field of View, type 45, and press Enter.

What files can you import into SketchUp?

Using SketchUp Data with Other Modeling Programs or Tools

File Type	File Extension(s)	SketchUp Pro and Shop Only?
CAD files	.dwg , .dxf	PRO and SHOP only
Image files	.jpg , .png , .tif , .bmp , .psd , .tga , .epx , .pdf , .eps	Some file types are PRO and SHOP only
STL files	.stl
COLLADA files	.dae

How do you convert floor plan measurements?

To draw a floor plan, start by measuring the length of the longest wall in the room. Then, scale down the measurement so you can draw the wall on a piece of graph paper. To scale down the measurement, decide how many feet each square on the graph paper will equal.

Can Sketchup import PDF?

Currently, you cannot import a PDF directly into Sketchup on the Windows version so the usual way to import something at least is to convert the PDF file into a raster image. In this SketchUp tutorial, we'll introduce a free tool that you can use to convert PDF's to DXF files, which you can import into Sketchup Pro.

How do you draw a floor plan in Sketchup?

Use Sketchup to Create a Floor Plan

Step 1 – Measure the Room. So just grab a piece of paper, a tape measure and maybe a helper to hold the other end of the tape.
Step 2 – Recreate the Floor Plan in Sketchup.
Step 3 – Calculate Area.

How do you draw an accurate floor plan?

To create an accurate floor plan, start by measuring a room: Measure along the baseboard the length of one wall, from one corner of the room to another. For accuracy, measure to the nearest 1/4 inch. Record this number on your rough floor plan and in your notebook.

Is Google Sketchup free?

Sketchup Make (formerly SketchUp for Home and Personal Use), introduced in May 2013, is a free-of-charge version for home, personal and educational use. It begins with a 30-day trial of SketchUp Pro. After that time, users can agree to the Terms of Service and continue to use SketchUp Make for free.
