How do I test my amp remote wire?

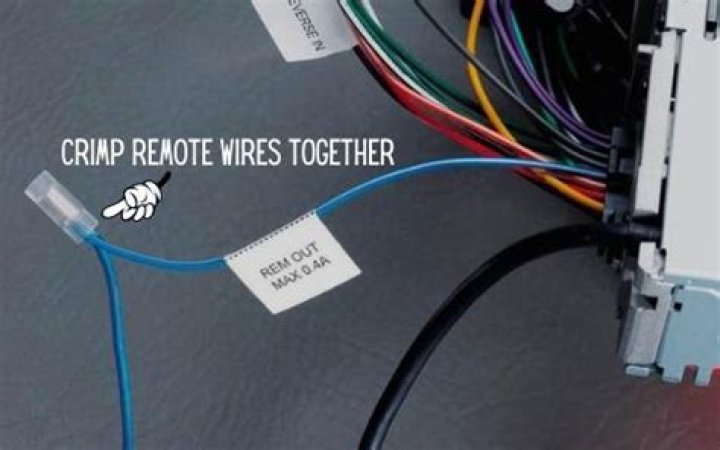

TESTING YOUR REMOTE TURN ON WIRE Just like you would test power and ground, you can test your remote turn on wire. With the ignition in the OFF position, place the positive lead of the multimeter on the end of the remote turn on wire and place the negative lead of the multimeter to a grounding point.
.
In respect to this, how do I know if my amp remote wire is bad?
Bypass your current remote wire in the car. That will tell you if there's something wrong with the amp or the wire. If it doesn't power the amp, then it is defective. That remote terminal on the amp is not suppose to draw no more than 20ma.
Furthermore, how many amps does a remote wire draw? 0.5 amps
Furthermore, do I need a remote wire for my amp?
If the head unit has an antenna drive or amp remote but the amp doesn't, then use the remote signal to operate a 12v coil relay and use the relay contacts to switch the amp on and off. If neither unit has a remote line then you can still use a relay to control power to the amp, but you may need to be a little sneaky.
Will amp turn on with bad ground?
If the ground connection is poor, or it isn't connected at all, the amp may fail to turn on or not work very well.
Related Question AnswersWhat will a bad ground do to an amp?
A bad ground will result in unstable system performance. The amp may not always work, or it may play at low levels and then shut off when turned up loud. Remember, the bad ground prevents the amp from netting enough power. Since an amp cannot make power if it's starved for power, then it cannot get hot.Why does my amp go into protection mode when I turn up the volume?
Solution: This can be caused by too low of an impedance from the way the speakers are wired, and sometimes a poor charging system (if the amp goes into protect when the volume is turned up). Otherwise, it's likely that the output transistors failed. That's the most common cause for an amplifier to go into protection.What causes an amp to cut out?
Another possible cause could be improper speaker connection and/or a set of speakers that do not match the amp impedance limit. Another probable cause could be “clipping” a form of distortion that will eventually blow the loudspeaker coils and after the amp end stage. Or when the amp has Clipping protection circuit.How do you troubleshoot a car amplifier?
Car Amplifier Troubleshooting Guide- Check the remote turn on wire and power wires voltage.
- Check continuity on ground wire.
- Remote wire needs at least 5 volts to trigger the amp.
- Power wire should be at around 12 volts with the car off, 14.4 volts with the car on.
- If these are all correct, check the fuses on the amp and the in-line fuse.
Does remote wire size matter?
no. it does not matter what size.Can you run remote wire to battery?
No, run the remote wire to the remote out on the back of the headunit. You can then install a switch on the remote wire to turn it on or off, but if you run it directly to the battery you will have problems because the amps will always be on, and you will kill your battery.What gauge wire should I use for remote wire?
18 gauge power wires are generally used as remote lead turn-on wire for all amplifiers. It is often referred to as car audio primary wire/cable.Can you use any wire for remote wire?
you can use speaker wire for that. Just run the remote wire off your other amp. any copper wire will work it doesnt matter how old or new it is. just find some old copper wire and use it.What color is the remote wire?
Wiring Harness Color Standards| Wire Color | Wire Function |
|---|---|
| Red | Switch / Accessory |
| Black | Ground |
| Blue | Antenna Remote |
| Blue with White Stripe | Amplifier Remote Turn-on |
