How do I debug Arduino in Atmel Studio?

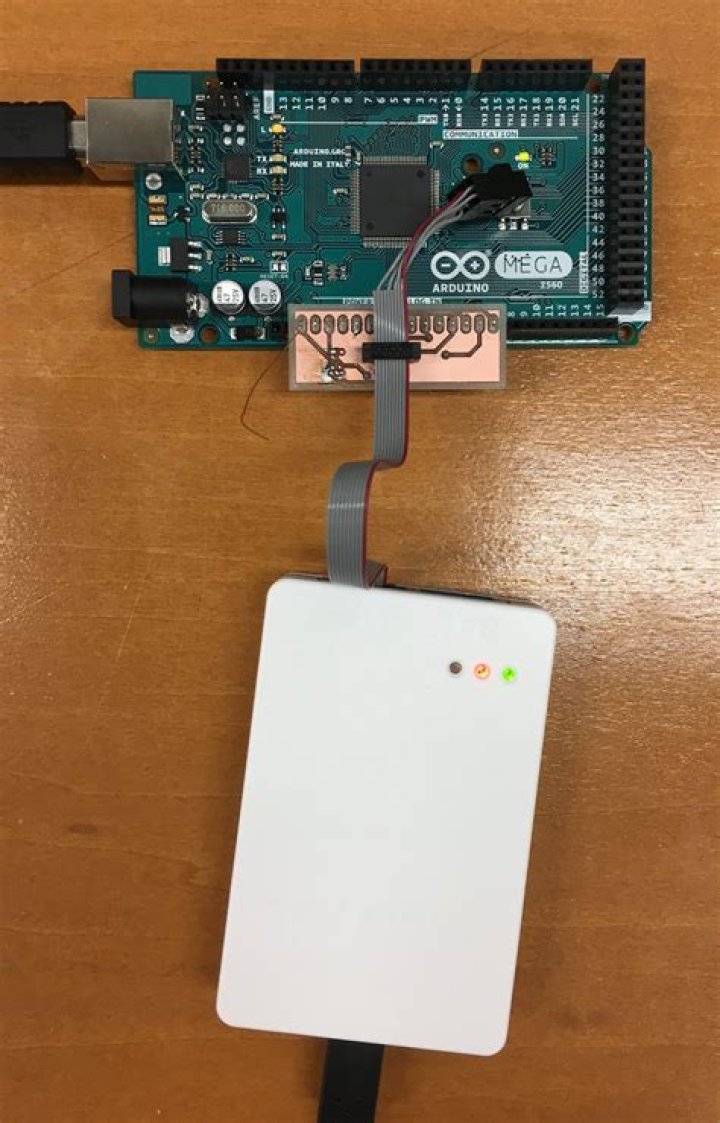

To debug the program you need to configure the Atmel-ICE to operate in debugWIRE mode. Select the Project pull down menu and at the bottom select “ Projectname Properties…” (or click alt-F7). Select the debugger/programmer tool (Atmel-ICE) and select debugWIRE from the Interface options.

.

Similarly one may ask, how do I debug Arduino program?

Debug your Arduino code with Visual Studio Code

1. assuming developers have been using Arduino Extension for Visual Studio Code for developing Arduino code.
2. open a *.
3. follow this screen to add Arduino debugging configuration (F5)
4. Switch back to the *.
5. Click the “start” button or press F5 to start the debugging session.

Also, how do I use Arduino with Atmel Studio?

1. Step 1: Download and install ATMEL Studio 7. Go to the ATMEL website and download ATMEL studio 7.
2. Step 2: Configure ATMEL Studio to use the AVRdude program. The second step to program Arduino using ATMEL Studio 7 is to add AVRdude as an external tool.
3. Step 3: Write, compile and upload program to Arduino Microcontrolller.

Furthermore, how do I use Atmel ICE debugger?

Read more about this here.

1. Step 1: Atmel-ICE Connections. 1.1 Connect the Atmel-ICE to the Target Microcontroller.
2. Step 2: Start a Debug Session.
3. Step 3: Debugging a Project with the ICE.
4. Step 4: Leaving Debugging Mode.

What is Atmel start?

Atmel START is an innovative online tool for intuitive, graphical configuration of embedded software projects. When you are done with your configuration, you can download it for use together with your preferred integrated development environment (IDE), including Atmel Studio, Keil or IAR, and continue development.

Related Question Answers

What is Atmel studio used for?

Atmel Studio 7. Studio 7 is the integrated development platform (IDP) for developing and debugging all AVR® and SAM microcontroller applications. The Atmel Studio 7 IDP gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code.

How do I change frequency in Atmel Studio?

Just click the arrow on the “ISP Frequency” input, select the frequency you want to use, and then click “Apply Settings” to apply the settings to the device. The Atmel Studio Setting column above shows the frequency you should select in Atmel Studio if you are using Atmel Studio to program.

How do I use Atmel Studio 6?

STEP-1: DOWNLOAD ATMEL STUDIO 6

1. DOWNLOAD ATMEL STUDIO 6. STEP-2: OPEN ATMEL STUDIO. Installation process is very easy.
2. OPEN ATMEL STUDIO. STEP-3: CREATE A NEW PROJECT.
3. DEVICE SELECTION. STEP-5: WRITE A PROGRAM.
4. WRITE A PROGRAM. STEP-6: COMPILE THE CODE.
5. COMPILE THE CODE. STEP-7: SELECT PROGRAMMER.

Is there a debugger for Arduino?

Most programs will use a debugger to help the programmer locate bugs and address them. Yet Arduino has no such debugging system. Arduino Debugging is one of the more challenging tasks of managing an Arduino project. Unlike most other IDEs, there is no official Arduino debugging feature onboard the Arduino IDE.

What code is used for Arduino?

C++

Can you step through Arduino code?

No there is no way to step through the code on your Arduino in the Arduino environment. You can use the analog pins as digital I/O on the Arduino though, which gives you a total of 20 digital I/O pins, 18 if you want to use serial. So you should even need an expander board for this project.

How do you troubleshoot an Arduino code?

Take these steps:

1. Power off the board completely (remove the USB cable).
2. Hold down the Reset button, and keep it held down (or, run a jumper wire from the RESET pin to the GND pin).
3. Still holding down Reset, reconnect the USB cable.
4. Start uploading a sketch that does not have this problem (eg.

Where are Arduino sketches?

You can see the sketches in the Sketchbook folder by going to File > Sketchbook. The default name of the Sketchbook folder is “Arduino” and the default location of the Sketchbook folder is in the “My Documents” folder (or just “Documents” for Mac users).

What is serial print in Arduino?

Prints data to the serial port as human-readable ASCII text. This command can take many forms. Numbers are printed using an ASCII character for each digit. Floats are similarly printed as ASCII digits, defaulting to two decimal places. Bytes are sent as a single character.

How do I test an Arduino?

Testing the Arduino Uno Board

1. Connect one end of the wire to A0 port.
2. Connect the other end to GND port.
3. Analog0 in the Serial Monitor should now read 0.0 volts.
4. Remove the wire from GND and connect it to 5V.
5. Analog0 should now read approximately 5.0 volts.
6. Remove the wire from 5V and connect it to 3.3V.

What is program debugging?

Debugging is the routine process of locating and removing computer program bugs, errors or abnormalities, which is methodically handled by software programmers via debugging tools. Debugging checks, detects and corrects errors or bugs to allow proper program operation according to set specifications.

What is Atmel ice?

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
