How do I connect PuTTY to xming?

Using PuTTY and Xming

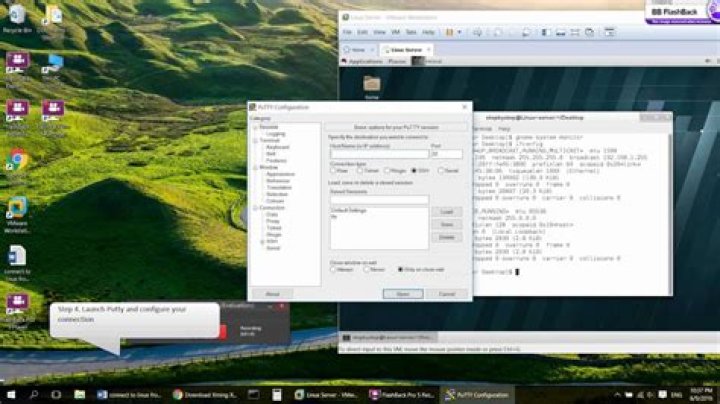

1. Double-click the Xming desktop icon to start the X-windows server.
2. Double-click the public/private key desktop icon to start Pageant.
3. Double-click the PuTTY desktop icon to start PuTTY and display the PuTTY Configuration window.

.

Then, how do I forward x11 using PuTTY?

Configure PuTTY

1. Start PuTTY.
2. In the PuTTY Configuration section, on the left panel, select Connection → SSH → X11.
3. On the right panel, click on the Enable X11 forwarding checkbox.
4. Set the X display location as :0.0.
5. Click on Session option on the left panel.
6. Enter the hostname or IP address in the Host Name textbox.

how do I export a screen in PuTTY? Re: How to export display to putty tool Start putty, but don't open a connection yet. If you have a pre-defined session, load it but don't click "Open" yet. 3.) In Putty configuration, select Connection -> SSH -> X11 -> Enable X11 Forwarding.

Also to know, how do I use XLaunch?

XLaunch - Start program

1. Force run. Force the program to run on an existing server, if there is one, if not start it and run.
2. Run Local. Start the chosen or entered program (with parameters as required) on the local machine.
3. Run Remote. As above but the program will be run on a remote machine.

How do I use xming on Windows 10?

Download and install it on your Windows 10 PC to get started. You can just use the default settings and it'll work fine. Launch Xming and it will appear in your system tray, running in the background and waiting for you to launch a graphical Linux program.

Related Question Answers

How do you exceed with PuTTY?

Basic configuration of Exceed and puTTY

1. Select 'Security' and check the No Host Access box.
2. Select "Display and Video", and in the window that pops up make sure that the window mode is set to "single".
3. Now "Launch exceed with the current settings"
4. Launch puTTY;
5. In the left pane, expand the 'SSH' tab and click on 'X11';
6. In the left pane, select "Data";

How do I quit SSH?

Two ways:

1. closing the shell session, e.g. with exit followed by Enter , or Ctrl - d usually allows you to exit the ssh session normally,
2. in the case where you have a bad connection and the shell is unresponsive, hit the Enter key, then type ~. and ssh should immediately close and return you to your command prompt.

What is SSH in networking?

Secure Shell (SSH) is a cryptographic network protocol for operating network services securely over an unsecured network. The standard TCP port for SSH is 22. SSH is generally used to access Unix-like operating systems, but it can also be used on Microsoft Windows. Windows 10 uses OpenSSH as its default SSH client.

How do I configure x11?

Steps

1. Press the keys ctrl-alt-f1 and log in as root when the virtual terminal is open.
2. Run the command "Xorg -configure"
3. A new file has been created in /etc/X11/ called xorg.
4. If the XServer did not start, or you do not like the configuration, read on.
5. Open the file "/etc/X11/xorg.conf"

How does SSH tunnel work?

Basically, a SSH Tunnel is a tunnel that can be used to pass (tunnel) data from one place to another, encrypted. It is also commonly used to route traffic (via a tunnel, think wormhole) to somewhere else, which allows for things such as tunnelling through a firewall or redirecting traffic (encrypted port forwarding).

What is X11UseLocalhost?

X11UseLocalhost. Specifies whether sshd should bind the X11 forwarding server to the loopback address or to the wildcard address. By default, sshd binds the forwarding server to the loopback address and sets the hostname part of the DISPLAY environment variable to ``localhost''.

How do I run PuTTY from Dbca?

download and install xming onto your local pc. then start xming before you start your putty session. to check if you x is working, try running the command 'xclock' is this appears then you will be able to run DBCA.

What is XMing with PuTTY?

XMing is a free X window server for Microsoft Windows. It allows one to use Linux graphical applications remotely. You have successfully installed Putty with XMing!

How do I run xwindows on Windows?

Starting an X Windows session with SSH X11 Tunneling

1. Click the Start button.
2. Select All Programs >> PuTTY >> PUTTY.
3. Select an X11 enabled session and click "Load"
4. Login.

What is x11 forwarding?

X11 forwarding is a mechanism that allows a user to start up remote applications but forward the application display to your local Windows machine.

Why xming is used?

Xming is a program that runs an XWindows server to run on Windows OS computers. It allows GUI programs from Linux/UNIX computers to display on your Windows laptop. On its, own, Xming serves no purpose on a Windows PC. But, when Xming is used in conjunction with the Windows program Putty, Xming is very useful.

How do I use PuTTY with XWindows?

To use SSH with X forwarding in PuTTY for Windows: Launch your X server application (for example, Xming). Make sure your connection settings for the remote system have Enable X11 forwarding selected; in the "PuTTY Configuration" window, see Connection > SSH > X11. Log in normally with your IU username and passphrase.

What is x11 protocol?

X11 is a network protocol designed for Unix and similar operating systems to enable remote graphical access to applications. The original X windowing system was announced in 1984 and developed at MIT. A machine running an X windowing system can launch a program on a remote computer.

Who makes PuTTY?

Simon Tatham

How use xming Linux?

Use SSH and XMing to Display X Programs From a Linux Computer on a Windows Computer

1. Step 1: Set Up Your SSH Client.
2. Step 2: Install XMing, the X Server for Windows.
3. Step 3: Make Sure That OpenSSH Is Installed on Linux.
4. Step 4: Add an Automatic "DISPLAY" Variable for the Linux Computer.
5. Step 5: Start Your SSH Client.

How do I use xmanager on Windows?

Method-1

1. Run Xmanager- passive mode on your windows system.
2. Open Putty --> In Connection select ssh and expand it -> now click on X11 -> On right hand side you will get an option.
3. Again click on session and enter the ip of RHEL6 system.
4. This will open login shell .
5. After login into system try to run any application.

What does export display do?

Explicitly setting DISPLAY=:0 is usually a way to access a machine's local display from outside the local session, such as over a remote access or from a cron job. It's an environment variable that is passed just to that program, rather than the shell as a whole.

What is Xlaunch?

Xming is the leading X Window System Server for Microsoft Windows®. It is fully featured, lean, fast, simple to install and because it is standalone native Windows, easily made portable (not needing a machine-specific installation or access to the Windows registry).

How do I export a screen from MobaXterm?

Open MobaXterm and Connect to your Linux Desktop/Server:

1. Enable the X Server Button on the top toolbar.
2. Go to Sessions tab on the left sidebar.
3. Right-Click Saved sessions and create a new session.
4. Click the SSH tab and fill in: Host and username.
5. Make sure X11-Forwarding is Checked and click OK.
