How do I communicate with Raspberry Pi and Arduino?

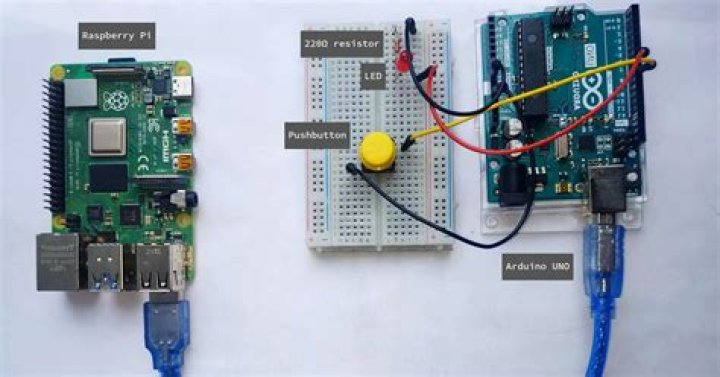

In common, the connections are fairly easy. Just connect Arduino USB Plug to Raspberry PI with USB cable and check the connection between Arduino and Raspberry pi by type "ls /dev/tty*" in Raspberry Pi terminal, the result should be content "/dev/ttyACM0" and you are good to go.

Moreover, can a Raspberry Pi control an Arduino?

Arduino is a micro-controller which is very popular because of its ability to control the hardware. Raspberry PI have 26 GPIO pins and if you require more input/output pins then the Arduino will come in handy for you. The Arduino also have the built-in ADC which means that you can get the analog inputs with it.

Subsequently, question is, how do I connect Raspberry Pi to Arduino? There are four basic ways to connect Arduino to Raspberry Pi:

Buy an add-on board like the Gertboard which has an Arduino compatible IC on it.
Plug a standard Arduino like an Uno or Nano into the USB port of the RPi.
Use a USB to Serial adapter with a cheaper/smaller Arduino like a Pro Mini or a self-made Shrimp.

Simply so, how do you communicate with a Raspberry Pi?

First you need a network connection between your laptop and your router and between your RPi and your router. Next find the IP address of your RPi. The benefit of TCP/IP or UDP/IP over serial is that you can easily use 802.11x WiFi rather than being tethered with serial wires or Cat5 cables.

How does Arduino communicate with computer?

As you might know, the arduino board can be connected to the computer with through a usb port. This is the way you upload the sketches and make them run by the Arduino IDE. But also is a way of communication once your sketch is already running. So we can send information to the board in order to do fun stuff.

What is the difference between Arduino and Raspberry?

The main difference between them is Arduino is microcontroller board while raspberry pi is a mini computer. Thus Arduino is just a part of raspberry pi. Raspberry Pi is good at software applications, while Arduino makes hardware projects simple. Below table gives you some differences between them.

Which one is better Raspberry Pi or Arduino?

The Raspberry Pi is 40 times faster than an Arduino when it comes to clock speed. It might sound like Raspberry Pi is superior to Arduino, but that's only when it comes to software applications. Arduino's simplicity makes it a much better bet for pure hardware projects.

What is a Raspberry Pi computer?

The Raspberry Pi is a low cost, credit-card sized computer that plugs into a computer monitor or TV, and uses a standard keyboard and mouse. It is a capable little device that enables people of all ages to explore computing, and to learn how to program in languages like Scratch and Python.

How many Arduinos can be connected to a Raspberry Pi?

How do I download Arduino on Raspberry Pi?

Install Arduino IDE on your Raspberry Pi Alternatively, open Chrome on your Raspberry Pi, head to and click the Linux ARM link under 'Download the IDE'. Extract the file to your /opt directory , then open a Terminal and run the install.sh script to install.

How do I start using Raspberry Pi?

Set up your Raspberry Pi

Insert the microSD card into the card slot on the underside of the Raspberry Pi.
Plug the USB keyboard into one of the USB ports.
Plug the USB mouse into one of the USB ports.
Turn on your monitor or TV set and make sure it is set to the proper input (e.g. HDMI 1 or Component)

What does Arduino mean?

Definition - What does Arduino mean? Arduino refers to an open-source electronics platform or board and the software used to program it. Arduino is designed to make electronics more accessible to artists, designers, hobbyists and ayone interested in creating interactive objects or environments.

What is a serial port in Arduino?

Serial is used for communication between the Arduino board and a computer or other devices. All Arduino boards have at least one serial port (also known as a UART or USART): Serial. It communicates on digital pins 0 (RX) and 1 (TX) as well as with the computer via USB.

What do you mean by serial port?

In computing, a serial port is a serial communication interface through which information transfers in or out sequentially one bit at a time. Throughout most of the history of personal computers, data was transferred through serial ports to devices such as modems, terminals, and various peripherals.

What is meant by serial communication?

In telecommunication and data transmission, serial communication is the process of sending data one bit at a time, sequentially, over a communication channel or computer bus. This is in contrast to parallel communication, where several bits are sent as a whole, on a link with several parallel channels.

How does Arduino serial communication work?

When you do a Serial. print , the data you are trying to print is placed in an internal "transmit" buffer. Then, as each byte is transmitted by the hardware an interrupt is called (the "USART, Data Register Empty" interrupt) and the interrupt routine sends the next byte from the buffer out of the serial port.

What is PWM in Arduino?

PWM. Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means. Digital control is used to create a square wave, a signal switched between on and off.

What is TTL in Arduino?

All Arduino boards have at least one serial port (also known as a UART or USART), and some have several. Serial communication on pins TX/RX uses TTL logic levels (5V or 3.3V depending on the board).
