How do I change my cursor color in AutoCAD 2018?

Re: change the cursor color in the commandline In OPTIONS, go to the DRAFTING tab. Inthe AutoSnap Settings category, click the COLORSbutton. In the Drawings Window Colors, select CommandLine in Context box and then choose Active Prompt Text inthe Interface Element box. Then select yourcolor.

.

Moreover, how do I change the color of my cursor in AutoCAD?

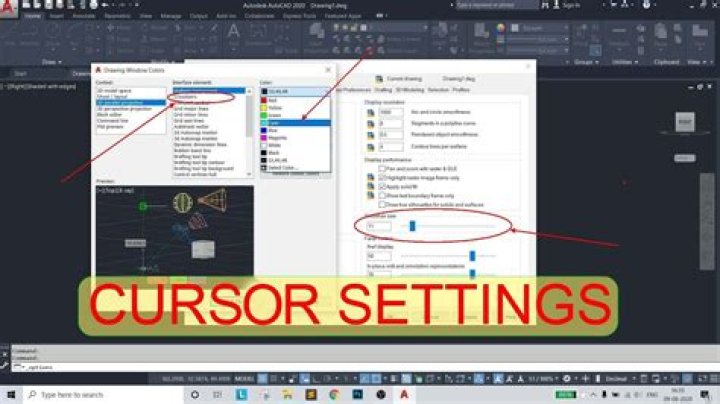

To change the color of the pointer,use the method below that corresponds to your version ofAutoCAD®. In the Options dialog box, click the Displaytab. On the Display tab, under Window Elements, clickColors. In the Drawing Window Colors dialog box,under Context, select 2D Model Space from the drop-downlist.

Secondly, how do I change aperture size in AutoCAD? The Aperture slider is on the Options >Drafting tab, whereas Pickbox slider is on the Options >Selection tab. To test, turn the Aperture display on (APBOX= 1) then with OSMODE something other than 0 enter a command thatexpects the user to specify a point, ie LINE command.

Consequently, how do I change mouse settings in AutoCAD?

To Customize a Mouse Button Combination

1. Click Manage tab Customization panel User Interface.
2. In the Customize tab, Customizations In <file name> pane,click the plus sign (+) next to the Mouse Buttons node to expandthe list.
3. Right-click a mouse button section.

How do I change the crosshair angle in AutoCAD?

Start AutoCAD and click the "Command" line at thebottom of the window. Type "SNAPDRAG" and press "Enter." The"Command" line changes to "Enter new value for SNAPANG :," where"x" is the current number setting for the crosshairs.Enter "0" and press "Enter" to rotate the crosshairs to thenormal position.

Related Question Answers

How do I change the color of a line in AutoCAD?

Help

1. Select the objects whose color you want to change.
2. Right-click in the drawing area, and choose Properties.
3. In the Properties palette, click Color, and then click the downarrow. From the drop-down list, choose the color that you want toassign to the objects.
4. Press Esc to remove the selection.

How do I change my mouse right click in AutoCAD?

Turn on Time-sensitive Right-click Behavior

1. Click Application menu Options.
2. In the Options dialog box, User Preferences tab, under WindowsStandard Behavior, click Right-Click Customization.
3. In the Right-Click Customization dialog box, select Turn onTime-Sensitive Right-Click.
4. Click Apply & Close.

How do I assign mouse buttons in AutoCAD?

Drag a command to a mouse button combination toassign a command. Create additional buttons bydragging commands to a node under Mouse Buttons. Thefollowing table shows the Click mouse button properties asthey appear in the Properties pane of the Customize User Interface(CUI) Editor.

What does Pan mean in AutoCAD?

AutoCAD For Dummies, 17th Edition Of course, the viewpoint is moving, not the objects.Both panning and zooming change the view — the currentlocation and magnification of the AutoCAD depiction of thedrawing. Every time you zoom or pan, you establish a newview.

How do I move around in AutoCAD?

Help

1. Click Home tab Modify panel 3D Move. Find.
2. Select the objects and subobjects you want to move using thefollowing methods:
3. When you have selected all objects, press Enter.
4. Do one of the following:
5. To move the selection, drag and release, or enter a distancewhile holding the mouse button.

How do I pan in AutoCAD?

Position the cursor at the start location and press theleft mouse button down. Drag the cursor to the new location. Youcan also press the mouse scroll wheel or middle button down anddrag the cursor to pan.

How do I change my mouse wheel to pan in AutoCAD?

Turn on AutoScroll in the system

1. In the Windows control panel, double-click the Mouse icon toopen the Mouse Properties dialog window.
2. Click the Buttons tab.
3. In the Wheel button drop-down list, select AutoScroll, andclick Apply.
4. Click OK.

What is Aperture AutoCAD?

The number of pixels you enter using APERTUREcontrols the size of the object snap box. The higher the number,the larger the target box. APERTURE controls the object snaptarget box, not the pickbox displayed at the Select Objectsprompt.

How do I change a selection box in AutoCAD?

To Change Object Selection Settings

1. Right-click in the drawing area, and choose Options.
2. On the Selection tab, choose the settings you want. Among othersettings, you can set. Whether objects to be selected are previewedduring selection. Whether selected objects are highlighted.
