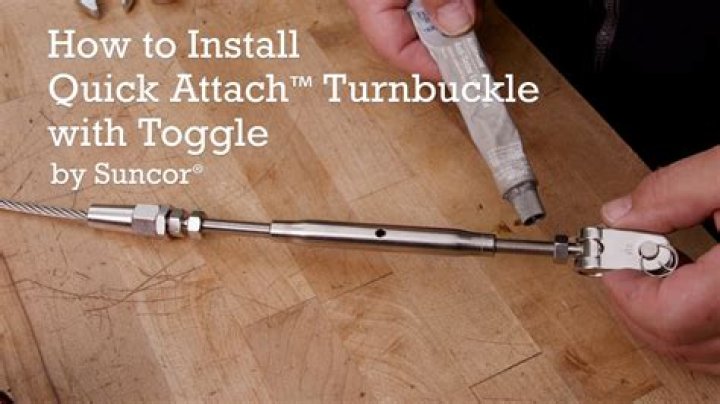

How do I attach a wire to a turnbuckle?

A typical tensioned cable hardware installation follows these basic steps:

Install the corner hardware.
Install the cable guides.
Use connection hardware to fasten the cable to the corner hardware.
Thread the cable through the cable guides.
Fasten the cable to the turnbuckle eyelets.

Similarly, you may ask, how do you use a turnbuckle hook?

For pipe style turnbuckles, a small screw driver or other small diameter type rod can be used to tighten the turnbuckle. Insert it into the hole in the body of the turnbuckle and turn to the desired tension.

how do you use wire rope clips? Put first clip one saddle width from seized “dead end” (Figure 1). Seat “live end” (load carrying) of the wire rope in saddle and position U-bolt over “dead end.” Tighten nuts evenly to proper torque. Put the second clip as near the loop or thimble as possible (Figure 2).

Also question is, how much weight can a turnbuckle hold?

MULTI-APPLICATION - This galvanized turnbuckle has a body opening that measures 18 inches, and a working load limit of 3,500lbs. You can use this to tension a zipline, fix a seat, straighten a tree, create a gate for your hunting cabin, or at home.

How do turnbuckles work?

A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.

How do you use a wire strainer?

Near the end of the chain, attach a hook of the strainer handle to the chain. Shift the right hand so it is firmly gripping the handle end, pulling the chain and short wire up firm. With the left hand reach as far as possible along the fence wire and pull it towards the wire strainer.

What is a rope thimble?

Thimbles are used to protect the eyes of cable, and rope slings from abrasion by providing a solid steel barrier between the fragile cable strands and the other rigging fitting used in the connection. Thimbles come in two different duty grades, Light Duty and Heavy Duty.

How is a turnbuckle measured?

Use a straight ruler to measure the length of the inside of the take-up. The take-up is what is turned to loosen or tighten the turnbuckle. The inside of the take-up is the rectangle inside the frame through which the threaded rods can be seen. Measure end to end of the inside of the frame.

How do you use a cable thimble?

How to Use a Cable Thimble

Thread your jewelry wire through a crimp bead or tube.
Bend the wire along the curve of the thimble and back through the other side.
String the loop of your clasp along the wire and center the clasp on the cable thimble.
Slide the crimp up to the cable thimble so that they are close, but not touching.

How does a cable tensioner work?

Most tensioners work by holding your winch cable down against the drum, using a spring loaded bar or plate to push against the rope on the drum uniformly. What's not shown are the springs that pull the bar or plate against the drum.

What is a turnbuckle in WWE?

Like boxing rings, wrestling rings are also known by the poetic name of the "squared circle". Unlike a boxing ring, the ring ropes in a wrestling ring are not tethered together. These ropes are held up and tensioned by turnbuckles, which, in turn, hang on steel ring posts, which also support the frame.

What is catenary wire made of?

The Hard-Drawn stranded Copper conductor is constructed of 19 single wires, each wire being 3.20mm in diameter and having a nominal cross-sectional areas of 150mm². The Bronze II stranded conductor has a total of 19 wires, 2 of which are bronze with the others constructed of Copper Magnesium.

Is a catenary a parabola?

The catenary curve has a U-like shape, superficially similar in appearance to a parabolic arch, but it is not a parabola. The catenary is also called the alysoid, chainette, or, particularly in the materials sciences, funicular. Mathematically, the catenary curve is the graph of the hyperbolic cosine function.

What shape does a hanging string make?

Catenary

How do you put tension wire in curtains?

Thread the loose end of the cable through the free end of the turnbuckle, pull the cable taut, and secure it with wire rope clips, as before. Trim any excess cable with the wire cutters. Tighten the turnbuckle to create the desired level of tension on the cable.

How tight should cable railing?

I would suggest that if you're building your own cable railings, you'll want to aim for 200 to 300 pounds of force. That's tight enough to prevent your cables from being deflected without stressing the frames–whatever they're made of.

How strong is aircraft cable?

Aircraft cable sizes range from 1/32" to 3/8", with breaking strengths (tensile strengths) ranging from 120 pounds to 14,400 pounds.

How do you tie a wire together?

It's generally used to tie off a broken wire inside your wire strainer without losing tension, so it's an excellent knot for fence repairs. Step 1 - Twist a wire end into a large, loose loop. Step 2 - Twist the loop end around several times to close off. Step 3 - Bend the 2nd piece of wire to form a hook.
