How do I activate Gpio on Raspberry Pi?

VIDEO

.

Likewise, people ask, how does Raspberry Pi GPIO work?

The Raspberry Pi's GPIO Pins GPIO stands for General Purpose Input Output. It is a way the Raspberry Pi can control and monitor the outside world by being connected to electronic circuits. The Raspberry Pi is able to control LEDs, turning them on or off, or motors, or many other things.

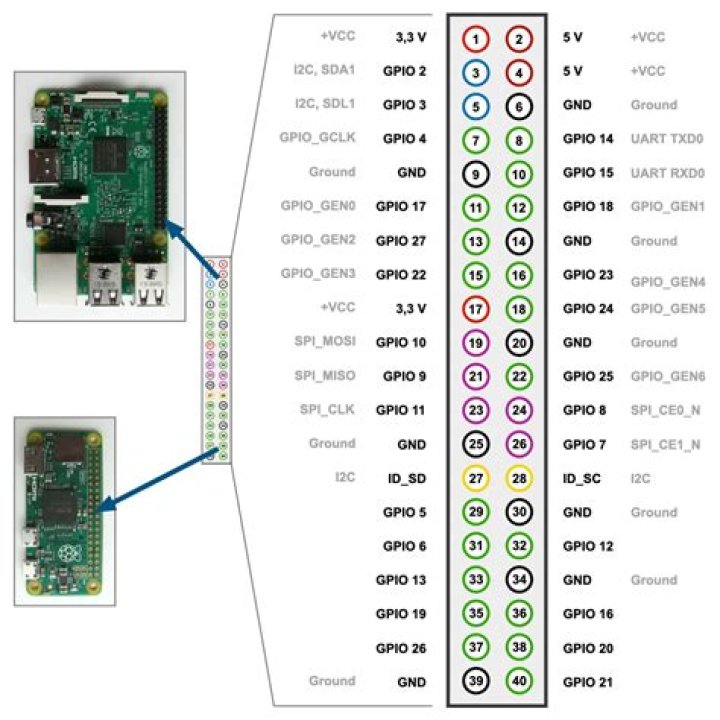

Also, how many GPIO pins Raspberry Pi? 40 pins

Then, what are the GPIO pins used for on the Raspberry Pi?

GPIO is your standard pins that can be used to turn devices on and off. For example, a LED. I2C (Inter-Integrated Circuit) pins allow you to connect and talk to hardware modules that support this protocol (I2C Protocol). This protocol will typically take up two pins.

Are GPIO pins analog or digital?

While all GPIO pins offer only digital input or output, PWM can be used (with very little external circuitry - a low-pass-filter) to at least output analog signals. The Pi has two dedicated hardware PWM pins and may further use the other GPIO pins for software PWM.

Related Question Answers

How does a Raspberry Pi breadboard work?

Electrical components are connected by pushing them into the holes in a breadboard. If you push a wire, or a different component, into one hole in a strip, and another wire into the hole next to it, it's as if you'd physically joined (or soldered) the two wires. Get a free Raspberry Pi with a subscription to The MagPi.

What is Pigpiod?

pigpiod is a utility which launches the pigpio library as a daemon. The pigpiod utility requires sudo privileges to launch the library but thereafter the pipe and socket commands may be issued by normal users.

What is a Raspberry Pi breakout board?

Breakout Board. A breakout board is used to connect a ribbon cable to a breadboard, allowing larger circuits to be prototyped more easily. If you do not have a breakout board, it is possible to plug wires and components directly into the Pi's GPIO pins.

Does Raspberry Pi have analog inputs?

The Raspberry Pi computer does not have a way to read analog inputs. Analog inputs are handy because many sensors are analog outputs, so we need a way to make the Pi analog-friendly. We'll do that by wiring up an MCP3008 chip to it. The MCP3008 acts like a "bridge" between digital and analog.

How do I interact with my Raspberry Pi?

Plug in your wifi dongle to a USB port on the Raspberry Pi. Connect your ethernet cable to your computer and to the Raspberry Pi. Plug in the wall power adapter into the Raspberry Pi, and then plug it into the wall to turn the power on. Once the power is connected to the wall, the Raspberry Pi will be on.

How does a GPIO work?

GPIO. Stands for "General Purpose Input/Output." GPIO is a type of pin found on an integrated circuit that does not have a specific function. While most pins have a dedicated purpose, such as sending a signal to a certain component, the function of a GPIO pin is customizable and can be controlled by software.

What is Raspberry Pi used for?

The Raspberry Pi is a low cost, credit-card sized computer that plugs into a computer monitor or TV, and uses a standard keyboard and mouse. It is a capable little device that enables people of all ages to explore computing, and to learn how to program in languages like Scratch and Python.

What are Gpio used for?

GPIO stands for General Purpose Input/Output. It's a standard interface used to connect microcontrollers to other electronic devices. For example, it can be used with sensors, diodes, displays, and System-on-Chip modules.

What function is used to set a PIN to a value?

Inputs. If a pin is configured as an input, you can use the GPIO. input([pin]) function to read its value. The input() function will return either a True or False indicating whether the pin is HIGH or LOW.

How many LEDs can a Raspberry Pi control?

The array pin_led_states holds the settings for each GPIO for each of the six LEDs. If the value is 0, the pin is low; 1 means high and -1 means set to be an input. Using 4 pins, we can have 16, 4, or 12 LEDs, whereas 10 pins would give you a massive 90 LEDs.

Can Raspberry Pi be powered by GPIO?

A more technical (and dangerous) way to power the Raspberry Pi is via the GPIO pins. The 5V GPIO pins on a Raspberry Pi are connected to the 5V rail. So you can hook up the GPIO 5V pins to a 5V source and feed energy directly to the board. Connect a 5V source to Pin #2 (5V).

Which interface is present in Raspberry Pi?

serial interface

Are all Raspberry Pi pinouts the same?

All GPIO's are the same, but each of them can have up-to 6 alternative functions. some software might re-assign functional blocks of the PI to GPIO's, for example hardware PWM used for analog sound can be assigned to some of the GPIO's.

Can Raspberry Pi read analog input?

The only electronic function it's not capable of doing is reading electrical signals and data from an analog device. Although the RPi has a multitude of GPIO pins, HDMI, an audio jack, LCD, and camera connectors, it's not capable of reading analog signals because it lacks an ADC (Analog to Digital Converter) circuit.

What programming language does Raspberry Pi use?

Python

What are the features of Raspberry Pi?

The full specs for the Raspberry Pi 3 include:

• CPU: Quad-core 64-bit ARM Cortex A53 clocked at 1.2 GHz.
• GPU: 400MHz VideoCore IV multimedia.
• Memory: 1GB LPDDR2-900 SDRAM (i.e. 900MHz)
• USB ports: 4.
• Video outputs: HDMI, composite video (PAL and NTSC) via 3.5 mm jack.
• Network: 10/100Mbps Ethernet and 802.11n Wireless LAN.

What voltage level is associated with high on the GPIO of the Raspberry Pi?

On Raspberry Pi, all GPIO banks are supplied from 3.3V. Connection of a GPIO to a voltage higher than 3.3V will likely destroy the GPIO block within the SoC.

What is a GPIO port?

A general-purpose input/output (GPIO) is an uncommitted digital signal pin on an integrated circuit or electronic circuit board whose behavior—including whether it acts as input or output—is controllable by the user at run time. GPIOs have no predefined purpose and are unused by default.

How do I turn off the LED on my Raspberry Pi?

If you want to turn off the LED on the Pi Zero completely, run the following two commands: # Set the Pi Zero ACT LED trigger to 'none'. # Turn off the Pi Zero ACT LED. To make these settings permanent, add the following lines to your Pi's /boot/config.
