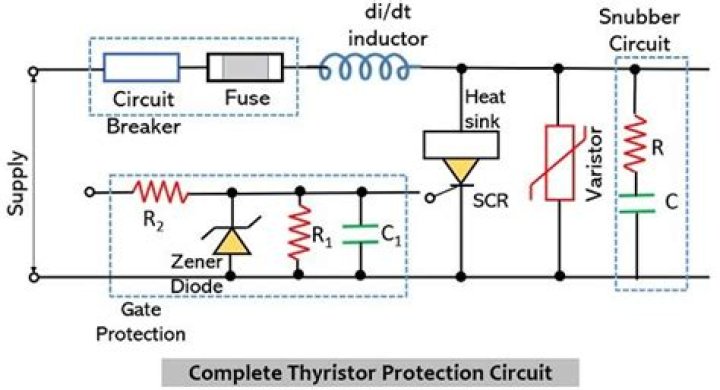

How can thyristor be protected from the over voltage?

The Thyristor or SCR, Silicon ControlledRectifier can be used to provide overvoltageprotection in a power supply circuit. By detecting the highvoltage, the circuit can fire the thyristor toplace a short circuit or crowbar across the voltage railto ensure it does not rise to high involtage.

.

In this manner, how can you prevent over voltage?

5 Ways You Can Prevent Over Voltage

1. Take note of your appliances' voltage requirements.
2. Use transformers properly.
3. Be careful when dealing with insulators.
4. Stop using appliances when there is a storm.
5. Consult with experts regularly.

Likewise, what is over voltage protection? Over voltage protection is a power supply featurewhich shuts down the supply, or clamps the output, when thevoltage exceeds a preset level. Most power supplies use anover-voltage protection circuit to prevent damage tothe electronic components.

Besides, how do I protect my home appliances from High Voltage?

Steps

1. Use surge protecting power strips in your home.
2. Install a whole-house surge protector in your electricalpanel.
3. Contact your electricity provider about meter-mounted surgeprotection.
4. Install GFCI outlets throughout your home.
5. Protect appliances from power outages using an uninterruptiblepower supply (UPS).

What is thyristor protection?

A thyristor is a solid-state component used toswitch and control electric current flow. Because of thischaracteristic and a wide protection rating range,thyristors are used as current controllers. Protectionthyristors are used for overvoltageprotection.

Related Question Answers

What means over voltage?

Definition of overvoltage. 1 : the excesspotential required for the discharge of an ion at an electrodeover and above the equilibrium potential of theelectrode. 2 : voltage in excess of the normaloperating voltage of a device or circuit.

What causes overvoltage?

The following are the top five causes of overvoltage.

• Power system surges. Due to poor regulation of the power sourceor power utility company, voltage fluctuations either over or undermay occur.
• Insulation Failure.
• Arcing Ground.
• Resonance.
• External causes.

How does overvoltage work?

A fixed OVP makes it possible to set a fixed voltagethreshold, either manually or programmed remotely. It's a fixedvalue such that when the power-supply output voltage exceeds thisvalue, the OVP circuit trips and the power supply tries to pulldown the overvoltage on its output.

What is an overvoltage relay?

Definition of overvoltage relay. Relaythat serves primarily the same purpose as an overcurrentrelay except that it is connected in the line by a potentialtransformer which measures the voltage across the line. When anovervoltage exists the relay operates and opens thecircuit breaker.

What are the switching over voltages?

Switching over voltages or Transient overoperation voltages of high frequency: This is caused whenswitching operation is carried out under normal conditionsor when fault occurs in the network.

Which type of resistor is used for overvoltage protection?

Varistor Summary Varistors are a type of resistor with anon-linear, non-ohmic current voltage characteristic and are areliable and economical means of providing protectionagainst over voltage transients and surges. They areavailable in many values for specific voltageranges.

What is switching overvoltage in power system?

Introduction. 1.1. Switching Overvoltages. Theoperation of switching devices can join or separate parts ofa power system. After a closing operation, transientcurrents will flow through the system, while after anopening operation a transient recovery voltage will appear acrossthe terminals of the interrupting

What is switching surge?

As the name suggests, switching means the suddeninterruption in any circuit and surges means the overcurrentspykes that are caused in the circuit. switching period. Asthe magnetic field about the inductive conductor collapses, a briefvery high voltage can be generated at that point.

Can high voltage damage home appliances?

Voltage Too High, Too Low. Voltagethat is too high can cause premature failure ofelectrical and electronic components (e.g. circuit boards) dueto overheating. The damage caused by overheating iscumulative and irreversible.

Will high voltage damage appliances?

If the voltage is too high, thiswill cause appliances to run 'too fast and toohigh' which will shorten their service life. Leads,cables, cords and power lines are not at risk. Voltage andcurrent strength are two different things!

What is the cause of voltage fluctuation?

Voltage fluctuations are generally causedby loose or corroded connections at either the house or on thepower lines, and are often noticed by flickering lights. This canbe caused by overloading on the network, loose connectionsor the conductor wire carrying power to your house being toosmall.

What is the normal house voltage?

These days, almost every residential customer can get120 volts from their wall outlet. However, power is typicallydelivered into your home at a nominal voltage of 240volts.

What is the cause of High Voltage?

The main cause of these voltage surges inpower system are due to lightning impulses and switching impulsesof the system. But over voltage in the power system may alsobe caused by, insulation failure, arcing ground and resonance etc.But over voltages occur in the power system due to lightningis very high.

How do you protect against voltage spikes?

True surge protectors work by keeping voltagespikes from reaching the electronics they protect. Whena spike reaches a surge protector, the device redirectselectricity to the ground wire, which then directs the electricityto the ground, away from the circuit.

How do you protect against power surges?

To protect against a power surge fromlightning, you can install lightning arresters and surgeprotectors in your home and unplug appliances such as computers andtelevisions during storms. It's also worth looking into surgeprotection programs in order to safeguard yourselfagainst potential damage.

Does MCB protect from High Voltage?

MCB is mainly used to protect your devicefrom an overload current in case of some internal short circuitfault in your device. Fuse is also designed for machineprotection and will trip only if the current exceedsthe fuse rating. Explanation: MCB offers protectionagainst overload.

What happens if overvoltage?

Overvoltage occurs when the supply voltage risesabove the rated voltage of the equipment or motor.Overvoltage can be caused by poor regulation of a powersource from a utility company, oversized transformers, uneven orvarying circuit loading, wiring errors, and electrical insulationor isolation failures.

What's the highest voltage ever recorded anywhere?

A tandem at Oak Ridge National Laboratory produced thehighest ever at 25.5MV (a megavolt is 1 millionvolts).

What is hydrogen over voltage?

The over voltage can be defined as “Thedifference between the potential of the electrode when gasevolution is actually observed and the theoretical reversiblepotential of the involved galvanic cell.” In case ofevolution of hydrogen Gas the Over voltage is calledas Hydrogen Over Voltage.
