How are carbon film resistors made?
The carbon film resistor is made by placing the carbon film or carbon layer on a ceramic substrate. The carbon film acts as the resistive material to the electric current. Hence, the carbon film blocks some amount of electric current. The ceramic substrate acts as the insulating material to the heat or electricity.
.
Just so, how are carbon resistors made?
They are made out of fine carbon particles mixed with a binder (for example clay). After baking it has a solid form. Although carbon composition resistors are widely applied in circuits, the majority of resistors are nowadays made by deposition of a metal or carbon film over a ceramic carrier.
Additionally, what's the difference between metal film and carbon film resistors? Metal film produces less thermal noise than carbon. Metal film resistors also typically have a much lower inductance/capacitance than carbon so they(metal film) work better at higher frequencies. Carbon has no real advantage except that they are cheaper.
Hereof, are carbon film resistors inductive?
Most resistors are created in this same manner but with different materials. For example, film based resistors are using film instead of wire which has proved to be more precise. Ceramic and carbon composition, not to be confused with carbon film, are naturally non-inductive because they don't have any windings.
What are the 4 types of resistors?
Types of Fixed resistors.
- Carbon Composition Resistors.
- Wire Wound Resistors.
- Thin Film Resistors.
- Thick Film Resistors.
What are the 2 types of resistors?
There are many types of resistors and they can be divided into two groups namely fixed resistor and adjustable resistor (variable resistor). The main function of the resistor is to resist the flow of electric current and regulate the flow of electrons. This is done by the material from which they are composed.Are metal film resistors inductive?
Helical wire wound resistors are especially prone to having significant parasitic inductances, because of their coil shape. Resistors designed specifically for use at high frequencies are made of metal film, to avoid creating the coil shape and reduce the parasitic inductance.Do resistors change value over time?
Resistor materials show little oxidation effects at temperatures lower than a threshold temperature. At temperatures higher than this temperature, oxidation effects typically translate into a positive change in resistance over time.What are carbon resistors?
Carbon resistor is one of the most common types of electronics used. They are made from a solid cylindrical resistive element with embedded wire leads or metal end caps. Carbon resistors come in different physical sizes with power dissipation limits commonly from 1 watt down to 1/8 watt.Does carbon resistor obey Ohm's law?
The resistors used above are likely made of carbon, which is a pretty good conductor and, although its resistance has some dependence on temperature, the resistors obey Ohm's Law. A general class of materials that do not obey Ohm's law all that well are semiconductors, of which silicon is one example.What are the types of resistance?
Different Types of Resistors and Its Color Code Calculation in Electronics- Different types of Resistors.
- Wire wound Resistors.
- Metal film Resistor.
- Thick film and Thin film Resistors.
- Surface mount Resistors.
- Network Resistors.
- Variable Resistors.
- Light-dependent Resistors.
Is a battery a resistor?
A battery can be thought of as a perfect voltage source with a small resistor (called internal resistance) in series. The electric energy density produced by the chemistry of the battery is called emf, but the amount of voltage available from the battery is called terminal voltage.Can I use a higher ohm resistor?
In general, no. Resistor values are carefully selected by the circuit designer to allow the circuit to work correctly. While there is some allowable tolerance, it won't usually be as much as a different value in the series. Resistors can be bought on eBay for a few cents.What is inside a resistor?
Resistor Composition Most common, modern resistors are made out of either a carbon, metal, or metal-oxide film. Inside the resistor, a carbon film is wrapped around an insulator. More wraps means a higher resistance.What is resistor wattage?
The Resistor Power Rating is sometimes called the Resistors Wattage Rating and is defined as the amount of heat that a resistive element can dissipate for an indefinite period of time without degrading its performance.What is MFR resistor?
Metal film resistors are axial resistors with a thin metal film as resistive element. The thin film is deposited on usually a ceramic body.What is non inductive resistance?
A non-inductive resistance is a resistance which has no inductance (no opposition to changes in current flowing through it). That is why for higher frequencies we need to use resistors whose resistive element is placed either as a straight line, or is “wound” in such a way that its inductance cancels itself out.What is an example of a resistor?
Resistors are used for many purposes. A few examples include delimit electric current, voltage division, heat generation, matching and loading circuits, control gain, and fix time constants. They are commercially available with resistance values over a range of more than nine orders of magnitude.What is the shape of a carbon film resistor?

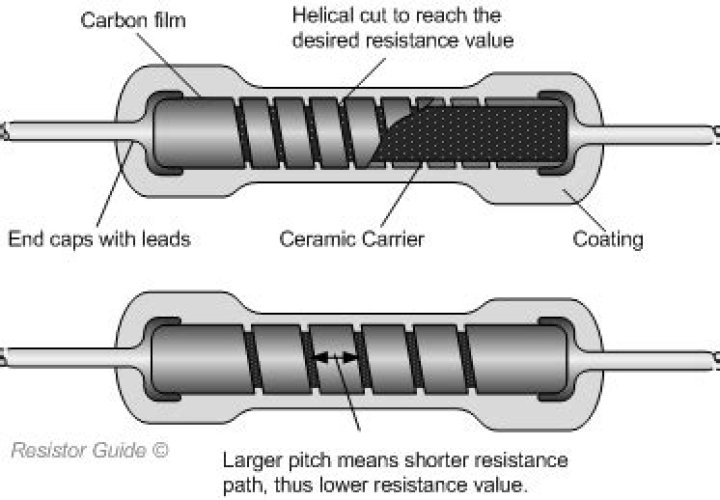

Carbon film resistors are those type of fixed resistors in which a carbon film is used for its resistive operation. Here deposition process is used for the construction and the carbon film which is usually cut in helical shape, is deposited on a ceramic substrate.What is the difference between inductive and non inductive resistors?
INDUCTIVE RESISTOR: Any circuit in which change in current is accompanied by change in flux and therefore by induced emf is said to be inductive. Hence no emf is induced in coil and coil has zero inductance. A non-inductive resistor can be used to replace an inductive resistor, but that might not be a realistic goal.What is the advantage of a wire wound resistor?
Therefore, the wire wound resistor provides high resistance to the electric current. On the other hand, a metal wire with low resistance blocks small amount of electric current. Therefore, the wire wound resistor provides low resistance to the electric current.What is the best type of resistor?
Carbon composition resistors used to be the most common type of resistors because of their relatively low cost and their great reliability. Carbon composition resistors use a solid block of material made from carbon powder, an insulating ceramic, and a binder material.What are the best resistors?
The best resistors you can get- The Bourns CRT series resistor. Vishay Precision Group offers a number of precision resistors (way too many, I would think).
- The Vishay Precision group Z-Series resistor.
- The Caddock through-hole precision resistor.
