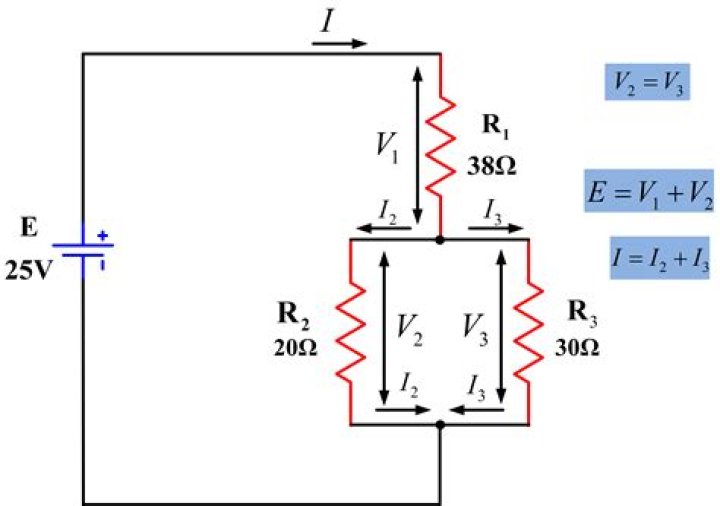

Does voltage drop in a parallel circuit?

In parallel circuits, the electric potential difference across each resistor (ΔV) is the same. In a parallel circuit, the voltage drops across each of the branches is the same as the voltage gain in the battery. Thus, the voltage drop is the same across each of these resistors.

.

Moreover, how do you calculate voltage drop in a parallel circuit?

Multiply the current by the total resistance to get the voltage drop, according to Ohm's Law _V = IR. This equals the voltage drop across the entire parallel circuit and each resistor in the parallel circuit. For this example, the voltage drop is given V = 5 A x 15/7 Ω = 75/7 V.

Subsequently, question is, how does voltage behave in a parallel circuit? A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.

Also, does voltage drop in a series circuit?

Voltage applied to a series circuit is equal to the sum of the individual voltage drops. The voltage drop across a resistor in a series circuit is directly proportional to the size of the resistor. If the circuit is broken at any point, no current will flow.

Why is voltage constant in a parallel circuit?

The voltage is the same in all parallel components because by definition you have connected them together with wires that are assumed to have negligible resistance. The voltage at each end of a wire is the same (ideally), So all the components have to have the same voltage.

Related Question Answers

Is voltage constant in parallel?

In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents flowing through each component.

What is the formula for voltage drop?

Equation 2: Calculating the Wire Size in circular mils CM = 2 x K x L x Amps/Acceptable Voltage Drop Alternatively, you can algebraically manipulate Equation 1 to: R410002Acceptable Voltage Drop/1.732 x L x Amps and then look up the wire size according to its AC resistance.

Why does resistance decrease in parallel?

Resistors in parallel In a parallel circuit, the net resistance decreases as more components are added, because there are more paths for the current to pass through. The two resistors have the same potential difference across them. The total current in the circuit is the sum of the currents through each branch.

How can you tell if a circuit is series or parallel?

In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.

What is an example of a parallel circuit?

An example of a parallel circuit is the wiring system of a house. A single electric power source supplies all the lights and appliances with the same voltage. If one of the lights burns out, current can still flow through the rest of the lights and appliances. The first circuits were very simple DC circuits.

What causes a voltage drop in a circuit?

Causes of Voltage Drop Excessive dropping is due to increased resistance in a circuit, typically caused by an increased load, or energy used to power electric lights, in the form of extra connections, components, or high-resistance conductors.

How do you drop voltage?

To reduce voltage in half, we simply form a voltage divider circuit between 2 resistors of equal value (for example, 2 10KΩ) resistors. To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors.

What happens if one bulb burns out in a parallel circuit?

Circuit Example If the light bulbs are connected in parallel, the current flowing through the light bulbs combine to form the current flowing in the battery, while the voltage drop is 6.0 V across each bulb and they all glow. One bulb burning out in a series circuit breaks the circuit.

What is constant in parallel circuit?

Each resistor in parallel has the same voltage of the source applied to it (voltage is constant in a parallel circuit). Parallel resistors do not each get the total current; they divide it (current is dependent on the value of each resistor and the number of total resistors in a circuit).

Can I use a resistor to lower ac voltage?

To drop AC voltage, you'd need at least two resistors, or a step down transformer. What are you using the lower voltage for? If you use series resistors to drop the voltage, you need to know the current draw of the device to calculate the size and power ratings of the resistor.

Do you add current in parallel?

Three Rules of Parallel Circuits In summary, a parallel circuit is defined as one where all components are connected between the same set of electrically common points. All components share the same voltage. Resistances diminish to equal a smaller, total resistance. Branch currents add to equal a larger, total current.

Is it better to wire speakers in series or parallel?

Series - When you wire (hook-up) speakers in Series, the speakers resistance (as measured in ohms) is additive - i.e. putting two 8 ohm speakers in Series results in a 16-ohm load. Parallel - When wiring in parallel, the resistance of the speakers decreases.

How does current change in parallel circuits?

Answers: As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases. Adding more resistors in parallel is equivalent to providing more branches through which charge can flow.

What happens to the voltage in a parallel circuit when more bulbs are added?

If light bulbs are connected in parallel to a voltage source, the brightness of the individual bulbs remains more-or-less constant as more and more bulbs are added to the “ladder”. The current increases as more bulbs are added to the circuit and the overall resistance decreases.

Does voltage change in series or parallel?

While the current through each of the components in a series circuit is the same, the voltage across the series circuit is the sum of the voltages across each component. However, the situation is different in parallel circuits. There, the voltage across each of the components is the same.

What happens if two different voltage sources are connected in parallel?

You will probably be doing damage to the internals of your power supply. If you put the 5V and 12V in parallel, the voltage would be somewhere in between depending on the internal resistance of each source. If both sources have equal internal resistance then the resultant voltage would be 8.5V.

What happens to the voltage in a series circuit?

The same current flows through each part of a series circuit. Voltage applied to a series circuit is equal to the sum of the individual voltage drops. The voltage drop across a resistor in a series circuit is directly proportional to the size of the resistor. If the circuit is broken at any point, no current will flow.

How do you find the voltage in a circuit?

Ohms Law and Power

1. To find the Voltage, ( V ) [ V = I x R ] V (volts) = I (amps) x R (Ω)
2. To find the Current, ( I ) [ I = V ÷ R ] I (amps) = V (volts) ÷ R (Ω)
3. To find the Resistance, ( R ) [ R = V ÷ I ] R (Ω) = V (volts) ÷ I (amps)
4. To find the Power (P) [ P = V x I ] P (watts) = V (volts) x I (amps)

Do voltages add in parallel?

Ideal voltage sources can be connected together in both parallel or series the same as for any circuit element. Series voltages add together while parallel voltages have the same value. Note that unequal ideal voltage sources cannot be connected directly together in parallel.
