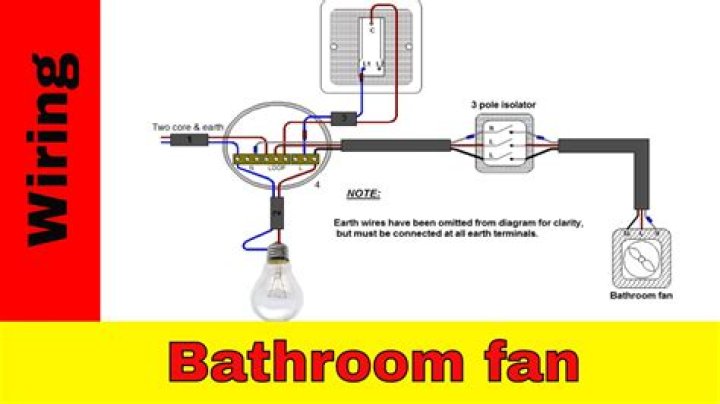

Bathroom Circuits If the vent fan has a built-in heater, it must have its own 20-amp circuit. This is called a "dedicated" circuit because it serves only one appliance or fixture. Heat lamps, wall heaters, and other built-in heating appliances may also require dedicated circuits..
Also, does a bathroom need to be on its own circuit?
Bathroom-circuit receptacles. A The main rule of Section 210-11(c)(3) requires a 20A circuit that is dedicated to bathroom receptacle outlets. It does not require a separate circuit for each bathroom. One circuit may supply multiple bathrooms as long as only bathroom receptacles are supplied.
Similarly, does a ceiling fan need its own circuit? Ceiling Fans are Typically Wired on a Shared Circuit with Other Lights and Outlets. Due to the small amount of amperage a ceiling fan does not require a dedicated circuit. The incoming power source is connected to the switch which controls the ceiling fan.
In this manner, can the outlets in a bathroom be on the same circuit as the lights?
If it's not, the answer is no. You want to avoid wiring the fixtures and the receptacles on the same electrical circuit. ZenFixIt says this changes when a 20A circuit powers a single bathroom. “Outlets for other equipment within the same bathroom” can then work on that same circuit.
How many circuits are required in a bathroom?
The minimum requirement for outlet receptacles in a bathroom is one GFCI-protected receptacle served by a 20-amp circuit. This is a bare minimum, however, and most bathrooms will have at least two receptacles, and often as many of four or five.
Related Question Answers
Can a bathroom fan and light be on the same switch?
Bathroom exhaust fans with built-in light fixtures are fairly common. If you have one of these, you may have wired the fan and light to separate switches. Now, you'd like to operate both of them from the same switch. The wires are already where you need them to be, so you don't have to run new ones.Can I wire lights and outlets on the same circuit?
An option for you if you don't want two switches is just to use a blank face plate (check this question). Basic answer to your question of can a mixture of lights and receptacles be installed on a single circuit is yes. The neutral will be white but some switches are wired up with a white wire that is not a neutral.Do bathroom lights need to be on GFCI?
The NEC has no requirement for GFCI protection of lighting in a bathroom. If your fan is not inside the shower it does not require GFCI protection. You stated your bath lighting is on a lighting circuit outside the bathroom with receptacles.How do you wire a bathroom fan and light on separate switches?
A separate cable will need to be installed from the wall switch box to the junction location where the wiring is located for the exhaust fan and the light. The wiring will need to be reconfiguration to allow routing the power through the new switch and then to the device to be switched separately.Can you mix 12 gauge and 14 gauge wire?
mixing 14-gauge NM and 12-gauge. both 14 and 12 gauge will be protected by a 15A breaker. Code states that 14Ga will be protected by an overcurrent device of not more than 15A and 12GA by 20A. 14 and 12 are both ok behind a 15amp breaker, but you must use one or the other and not both.How many outlets can be on a 15 amp circuit?
10 outlets
Can I wire a light off an outlet?
Answer: The answer to this depends on how the existing circuit is wired. The problem is when the power comes to the switch, and then from the switch to the light outlet (or lights), and only on a 2-wire cable. In this case, you must change the cable from the switch to the light outlet from a 2-wire to a 3-wire cable.How many outlets can be on a breaker?
By rule of thumb you would stick with 8 to 10 outlets and or lights per breaker. Now this is of course they are 120 volts 60 Hz (USA or Canada).How high should bathroom outlets be?
A typical bathroom counter is 32 to 36 inches above the floor. A bathroom counter usually has a 4-inch backsplash, where the counter surface turns up the wall. Backsplashes prevent water from running behind a countertop. An electrical outlet receptacle is usually placed 2 to 3 inches above the top of the backsplash.How many ceiling fans can be on a 15 amp circuit?
1 Answer. There should be no problem running 4 ceiling fans on a single 15 ampere circuit, though it will depend on what else is on the circuit. Say a 52" fan is 90-100 watts (at high speed), plus three 60 watt bulbs. That puts each fixture at 280 watts or so.How many outlets can be put on a 20 amp circuit?
One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.Can lights be on a 20 amp circuit?
There is no rule that states lighting circuits have to be on 15A circuits, unless it is a local rule. Lighting fixtures can be put on any 20 amp circuit except those that are required by code not to have lighting fixtures (washer, kitchen small applicance, and dedicated equipment circuits).Where does the green wire go on a ceiling fan?
Black wire is for the fan. Blue wire is for the light, if light is included with the fan. White wire is neutral. Green wire is for the ground.Can a bathroom be on one circuit?
Does the Code say one bathroom per circuit? A The main rule of Section 210-11(c)(3) requires a 20A circuit that is dedicated to bathroom receptacle outlets. It does not require a separate circuit for each bathroom. One circuit may supply multiple bathrooms as long as only bathroom receptacles are supplied.
