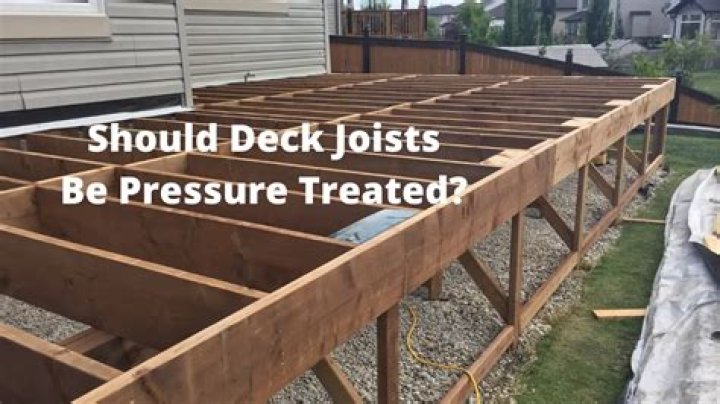

Do floor joists need to be treated?
Generally, building codes requirepressure-treated or naturally durable wood for the followingapplications: Joists or the bottom of structuralfloors without joists that are within 18″ ofexposed soil. Beams or girders closer than 12″ to exposedsoil.
.
Similarly one may ask, do floor joists need cross bracing?
Residential building code requires the use of crossbracing or blocking for floor joists exceeding 2 inchesby 12 inches, but many homes, especially older ones, have creaky,uneven floors because floor joists are notbraced.
Also Know, how much does it cost to replace floor joists? Repairing a floor joist The repair typically costs $250 to $300,according to experts who've done this type ofwork.
In this way, how far can a 2x10 floor joist span without support?
A live load of 60 pounds per square foot demands moresupport and shorter spans. Spaced at 12 inches, thejoist may only span 16 feet 8 inches. At 16 inchspacing, 15 feet 2 inches and 13 feet 3 inches at 24 inchspacing.
What size wood do you use for floor joists?
The wood boards used as floorjoists generally range in size from no smaller than2-by-4 inches to no larger than 2-by-12 inches. Two-by-6 inches isa joist size frequently used in both indoorfloors and as deck joists.
Related Question AnswersDo floor joists need bridging?
Proper bridging distributes the load on thefloor to other joists and over time preventsfloors from sagging and squeaking do to floorjoists twisting and warping. If it is wood it is nailed to theupper top of the side of the floor joist before thefloor or sub-floor is installed on thejoists.How do you stabilize floor joists?
Fix bouncy floors by adding bridging, adding alayer of plywood or adding a wall or beam. We'll show you threeways to stiffen up your bouncy floor—by addingbridging, installing plywood along the joists and adding awall or beam under the floor. Any one of the three can solveyour problem, depending on your situation.How much should floor joists overlap?
3 inches is IRC minimum overlap. that doeswork. it is what i would do. of course if you buy 14's anduse 6" or so overlap you then have the blocking parts,assuming joists on 16" or less centers. much morethan 6 inches overlap is not required orneeded.What is the purpose of bridging between floor joists?
Nail bridging on all joists Bridging allows each joist to shareweight with its neighbors and can cut“deflection”—how much the joistsflex—by half. Even if your floor already has a row ofbridging running down the center, you can stiffen itsubstantially by adding two more rows.What is the purpose of a floor joist?
Joist. A joist is a horizontal structuralmember used in framing to span an open space, often between beamsthat subsequently transfer loads to vertical members. Whenincorporated into a floor framing system, joistsserve to provide stiffness to the subfloor sheathing, allowing itto function as a horizontal diaphragm.Is blocking required for floor joists?
By 2003 International Building Code (IBC), in additionto having to install blocking where joists overlapover a center beam, blocking is also required every 8feet for 2x10 and taller joists. As long as blockingmeets this requirement, it does not necessarily have to becentered over the length of the floor joists.Are squeaky floors a structural problem?
There's no need to panic. In real life, a squeakis no big deal—that is, they don't signal structuraldamage, like termites, that could cause your floor or joistto collapse. And fixing squeaky wood floors is fairlysimple. Although any floor can squeak, hardwoodfloors and staircases are the common culprits.Do I joists need bridging?
Bridging is often required in floors orroofs when solid-sawn lumber joists are used. Our codereport (ICC ESR-1153) specifically states that bridging isnot required for floor and roof TJI joistapplications.Can I use 2x6 for floor joists?
2x6 joists should only be used on ground-leveldecks that do not require, and will not provide for,any guards.What is the maximum span for a 2x8 floor joist?
Max. Live Load 30 lbs/ft2 (1436 N/m2)| Maximum Span (ft - in) | ||
|---|---|---|
| Nominal Size (inches) | Joist Spacing Center to Center (inches) | Lumber Grade |
| 2 x 8 | 12 | 15' - 7" |
| 16 | 14' - 1" | |
| 24 | 11' - 6" | |
How much weight can a 2x10 support?
In fact, each 2x10 will support 1,200 lbs. To beclear, spans are measured as "clear spans".How far can you cantilever a 2x6 joist?
According to the new span tables and IRC provisions,cantilevers can extend up to one-fourth the backspanof the joist. This means that joists, such assouthern pine 2x10s at 16 inches on-center, spanning 12 feet areallowed to cantilever up to an additional 3 feet (seeillustration, below).How much weight can a 2x12 floor joist support?
One 2x12 can support about 180 lbs. per foot orabout 2,100 lbs. total for a 12' span.How do you set floor joists?
Brief steps to framing a floor for your storage shed orhouse.- Square The Sill Plate Layout On The Foundation.
- Cut, Drill And Attach The Sill Plates.
- Build Basement Bearing Walls, Where Necessary.
- Layout The Joist Spacing On The Sill Plates.
- Attach The Rim Joists.
- Cut And Install The Floor Joists Between The Rim Joists.
How thick is a second story floor?
In a typical home, the entire structure between levelscan be about 12 to 14 inches thick, depending on the type ofjoists used and the finish materials for the floor andceiling.How big of a hole can be drilled in a floor joist?
The hole cannot be larger than one-third thedepth of the joist, so the maximum hole size for a2×12 joist (actual size 1-1/2 x 11-1/4 in.) is 3-3/4in. diameter—plenty big enough for running cable! Youcan drill the holes anywhere along the length of thejoist (first photo).How much are 2x10?
Last Update: 10/20/2011 01:46 PM PST| 8' | 10' | |
|---|---|---|
| 2x6 | $3.36 | $4.27 |
| 2x8 | $5.08 | $6.35 |
| 2x10 | $6.21 | $9.24 |
| 2x12 | $7.58 | $9.40 |
