Do dimmer switches require special wiring?

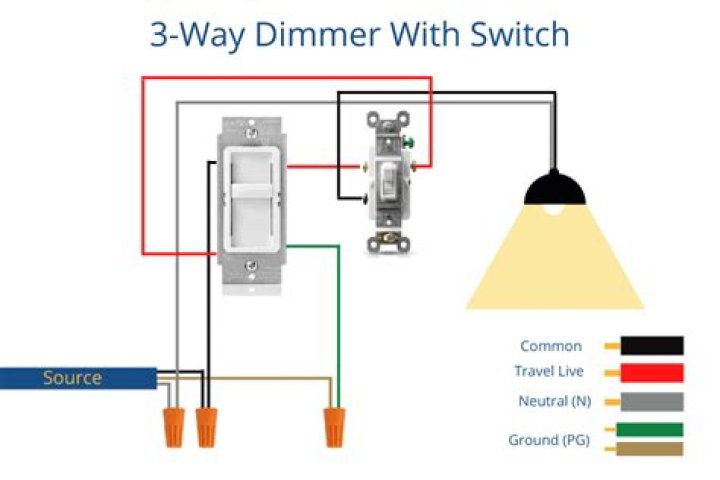

Most dimmers are designed to fit a standard wall box opening, which makes it easy to replace the switch for any incandescent or halogen light with a dimmer. Dimmers come in two basic wiring configurations: standard single-pole dimmers and three-way dimmers. You will need a three-way dimmer and a three-way switch.

.

Similarly, you may ask, what wire do I use for a dimmer switch?

New dimmers have either a green grounding wire or a green ground screw that you'll have to connect to a grounding source if one is available. Houses wired with plastic-sheathed cable almost always have bare copper ground wires that you'll connect to the toggle dimmer switch.

Likewise, do you have to use a special dimmer switch for LED lights? Because of their circuitry, LEDs are not always compatible with traditional dimming switches. If you'd like your LED to be dimmable, you need to do one of two things: find LED bulbs compatible with traditional dimmers, or replace your current dimming switch with a leading-edge (LED-compatible) dimmer.

Keeping this in view, where does the red wire go on a dimmer switch?

Red is the switched lead (or a traveler in a 3-way installation), and is attached to the switched hot going to the light. Red with white is a traveler, used for 3-way installations. In your situation, you'll just cap this one off. Green is ground, and is attached to the grounding conductor.

How hard is it to install dimmer switch?

1. Introduction. Installing a dimmer switch is just as easy as installing a single-pole switch, and adjustable overhead lighting is a great improvement that adds appeal to any home.
2. Turn Off Power. Turn off the power to the circuit at the circuit breaker or fuse box.
3. Remove the Wires From the Old Switch.

Related Question Answers

Why does my light switch have 3 wires?

The switch in question is a single pole. From it, there is 3 wire cable that leads to a light which then connects to other lights controlled by their own switches. There's no three way set up and this isn't a switch loop either. Plus, The two black wires are using the same terminal.

Are dimmer switches dangerous?

There shouldn't be any dangers if you use a dimmer that's designed for LED lights. Basically, most modern dimmers rapidly modulate between on/off and is safe for long term use in a low state. A side effect however, is that it may generate RF interference or even an audible humming sound.

Does a dimmer switch reduce voltage?

Dimmers are devices connected to a light fixture and used to lower the brightness of light. By changing the voltage waveform applied to the lamp, it is possible to lower the intensity of the light output. Modern dimmers are built from semiconductors instead of variable resistors, because they have higher efficiency.

Do dimmer switches need a neutral?

There are dimmable smart switches on the market that can be installed without a neutral wire. The key is the dimming feature, which turns the flow of power between the light and the switch down to a slight trickle. Here are two switches that don't require a neutral wire.

How much does it cost to install a dimmer switch?

Dimmer Switch Prices - $100-$200 Dimmers average $10-$25 each, though there are styles that cost up to $50. Installing new or upgrading to this type will range from $100-$200. With these, light can be adjusted to soft or bright according to the needs of the homeowner.

What does the dimmer wire connect to?

The Dimmer wire puts out between 0v and +12v depending on the brightness you have the headlight **** turned to. This allows the radio to dim with the rest of the indicator lights. You don't need to connect it, but you might as well, it's just one more wire.

Why does my light switch not have a neutral wire?

There's a reason why almost every smart switch needs a neutral wire attached: it needs to stay powered all the time. This is because the neutral wire for the circuit is actually in the junction box that holds the light fixture, and the two wires coming down to the switch are the "hot" leg that will power the light.

How do old dimmer switches work?

The Old Way. Early dimmer switches had a pretty straightforward solution to adjusting light levels -- a variable resistor. When you put a resistor in a series circuit, the resistor's energy consumption causes a voltage drop in the circuit, decreasing the energy available to other loads (the light bulb, for example).

How do you wire a 3 wire light switch?

Either way, complete these five steps for 3 way light switch wiring:

1. Turn off the correct circuit at your electrical panel.
2. Add an electrical box for the second three-way switch in the basement.
3. Feed a length of 14-3 type NM cable (or 12-3, if you're connecting to 12-gauge wire) between the two boxes.

How does a dimmer switch work diagram?

The diagram below shows this sixtieth-of-a-second cycle. A modern dimmer switch "chops up" the sine wave. If the dimmer is turned to a brighter setting, it will switch on very quickly after cutting off. The circuit is turned on for most of the cycle, so it supplies more energy per second to the light bulb.

Why is my dimmer switch not working?

Overlamping a dimmer switch is the most common reason a dimmer switch fails. When a dimmer switch fails, the lights might not go out but remain on, burning up electricity and requiring a change out of the dimmer switch. A power surge can also take down your dimmer.

How do I adjust a dimmer switch?

Just follow these steps:

1. Switch the light on and set to the minimum brightness.
2. Turn the light off and on three times, leaving a second in between each press.
3. The lights will go up and down in brightness to show the dimmer is in configuration mode before going off.
4. Turn the dimmer fully clockwise.
5. Use as normal.

How do you change a dimmer switch to a regular light switch?

How to Replace a Light Switch with a Dimmer

1. Turn off the power to the switch at the circuit or fuse panel.
2. Unscrew and remove the switch plate; then use a voltage tester to make sure that the circuit is dead.
3. Unscrew the switch from the electrical box and pull it out with the wires still attached.
4. Remove the wires from the old switch.

What makes a light dimmable?

So a dimmable LED light fixtures must have the ability to}: Deal with a wide range of source voltage including part-formed sine waves, which is not easy for the control logic. Detect from the source voltage the light level that an individual wants, and then give that light level.

How do you wire a 2 way dimmer switch?

Remove the plate that covers the switch and then unscrew the rest from the wall box. Gently pull the switch to expose the wires. Use a voltage tester or turn the switch on and off to ensure that there is no power. Next, set up the three-way dimmer switch wiring.

How do you wire two dimmer switches in the same box?

1. Choose a dual dimmer control style.
2. Cut off the power supply running through the circuit that feeds the box.
3. Remove the existing switch.
4. Identify and mark the hot wire.
5. Unscrew the terminals and remove the wires from the old switch.
6. Install the wires on the dual switch.

Can I connect red wire to black wire?

Red Electrical Wires Like black wires, they can be used in some types of switch legs. They are also used to connect hardwired smoke detectors to the home's power system. It's possible to link two red wires together or a red wire to a black wire.

What color wire goes where on a light switch?

The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.

Which wire is live red or black?

You can clearly see that red is connected to the new brown (live), black is connected to the new blue (neutral) and the green and yellow earth stays the same.
