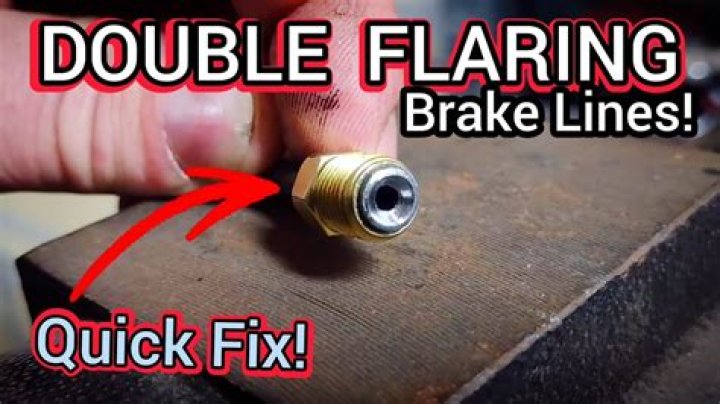

Do brake lines have to be double flared?

A single flare is just as it sounds, the line is flared out just once in a conical shape. Single flares are not acceptable for brake lines and tend to crack and leak quite easily. 2. A double flare is one of the most common flares found on vehicles.

Keeping this in consideration, do you have to flare brake lines?

Flaring brake lines ensures a leak-proof connection without extra materials or sealants. If the brake lines aren't properly flared, you can lose fluid that will cause your brakes to fail. This article will explain how to flare your brake lines using single and double flares.

Additionally, can you double flare stainless steel brake lines? Stainless does not get double flared, the end of the flare will split and break (if you don't break the flare tool first) you need AN 37-degree fittings.

Keeping this in consideration, what is a double flare?

A single flare is exactly what the name suggests. The tubing is just flared at the end. A double flare is made by the end of the tubing. being rolled/folded inside itself, then the double. layer is flared.

Can copper be used for brake lines?

As for the regular copper tubing used for brake lines, sure, it's better than a rust-perforated steel line. But if you're going to trust your brakes to stop you from high speeds or in the mountains (unlikely in Newfoundland) then it had better be more than straight copper.

What is the best brake line flaring tool?

Our 10 Picks of best brake line flaring tool

RIDGID 83037 Model 458R Precision Ratcheting Flaring Tool.
OTC 4503 Stinger Double Flaring Tool Kit.
ABN Bubble Flare Tool & Double Flaring Kit.
Neiko 20656A Auto Double Flaring.
K-Tool International KTI-70081 Brake Line Flaring Tool.
Yellow Jacket 60295 Flaring Tool.

What is the difference between double flare and bubble flare?

It looks similar to a single flare but it is much stronger and acceptable for the high pressure found in a brake system. Double flares are found on most all US manufactured cars through the 80's. 3. DIN/ISO or “Bubble Flares” are common on many import vehicles especially European vehicles.

What is a double flare used for?

The first is the inverted double flare, used by most domestic production cars and trucks. It uses a 45* double flare to seal, which has tubing that is folded over into itself before flaring outward. On the right, is a 37* single flared line with a tube sleeve and coupler that allows you to adapt to AN fittings.

What is a bubble flare?

If your brake line looks like a tiny funnel going into the ID of the tubing, and the back side of the flare is at a 45 degree angle, then it is the SAE flare. DIN/ISO Bubble Flare. If the end of the tubing looks like a button, and the back side angle of the flare is 90 degrees, than it is the DIN flare.

Can you use compression fittings on brake lines?

Because of the unreliability of compression fittings on brake lines, the use of compression fittings is not widely recommended. If you are repairing the brake lines in a vehicle that is not a passenger car used for everyday road travel and transportation, compression fittings are an acceptable brake line repair.

Can you double flare copper tubing?

If you use copper tubing with a flare fitting, standard flare will be perfectly acceptable. Propane pressure is only slight (around 10" water, or 0.36 psi). Double flare is used for high pressure applications, such as hydraulic lines and automotive brake lines.

Why do you flare copper tubing?

During assembly, the flared end of the copper pipe is secured to the tapered fitting by the flare nut. It allows for leak-tight and pressure resistant seal.

What is an inverted flare?

Inverted Flare Hydraulic Tube Fittings Recommended or use in hydraulic brake, power steering, fuel lines and transmission cooler lines. Inverted flare fittings are inexpensive and reusable. Inverted flare provides excellent vibration resistance. Seats and threads are internal and protected.

What is a single flare plug?

Single Flare vs Double Flare Plugs. The flare of a plug is a raised lip that prevents the plug from sliding in or out of a piercing. A single flare plug only has this lip at one end. The other end is straight, so it is easy to fit into a piercing.

Can you flare stainless steel tubing?

How to Correctly Flare Stainless Steel Tubing for either 37° Single Flare and 45° Double Flare. We recommend that you start by cutting the stainless steel tubing with a 32 tooth per inch saw (See Figure 1). A tubing cutter or die-grinder, will "work harden/heat treat" the material and make it brittle and prone to crack

Do you have to flare brake lines?

Most of the brake lines you buy at an auto parts store will already be flared at the ends. However, those brake lines may not be the length you need, so you'll likely have to cut them and then add your own flare, at least on one end. In fact, most auto parts stores sell flaring kits that contain everything you'll need.

Is double flaring necessary on steel tubing?

All auto lines require a 45-degree double flare, regardless of stainless of mild steel brake lines. ALL OE brake and fuel line parts (wheel cylinders, master cylinders, fuel fittings) use a 45-degree double flare.

How do you flare brakes?

Steps

Measure the length of brake line needed with measuring tape.
Don hand and eye protection.
Cut brake tubing to the desired length with tubing cutters or a hacksaw.
Use a flaring tool or a double flare tool to form the tubing's flare.
Put the cone of the tool over the end of the tubing.
