Can you vent a gas water heater and furnace together?

Many homes are built with the water heater and furnace sharing the same combustion-gases exhaust vent. This practice is common with standard efficiency (80%) furnaces. When installed correctly, this venting arrangement works with an 80% gas furnace (or lower than 80%) + gas water heater.

.

Consequently, can furnace and water heater share PVC vent?

Category IV Appliances are mainly high-efficiency water heaters and furnaces that use plastic vent pipes. These appliances also operate with positive vent pressure and cannot share a common vent with a gravity-vented water heater. Inspectors should not confuse fan-assisted furnaces with those that are power-vented.

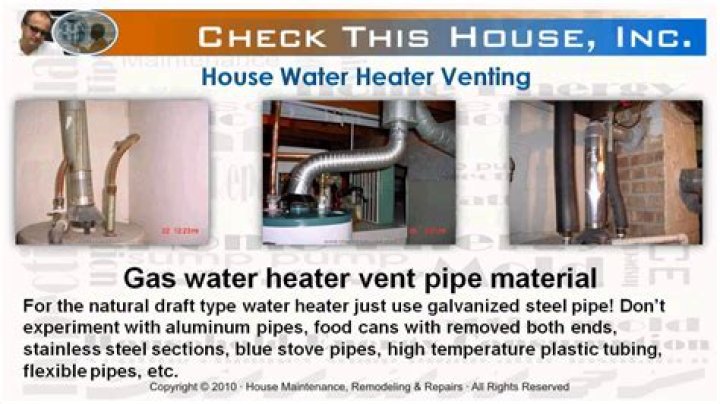

Furthermore, how do I vent my furnace and water heater? Standard practice is to have the vents from furnaces and hot water heaters attach from the appliance to a solid single wall pipe, and then connect to a solid double wall pipe. The double wall pipe then vents through to the exterior.

Accordingly, can you vent two water heaters together?

Venting dual gas water heaters. Double the size of a single vent. Both heating water at the same time. Likely hood is they will, regardless of how the two tanks are connected, in series or parallel.

Can you vent a gas water heater through the wall?

All natural gas water heaters must be vented to the outdoors to remove the byproducts of combustion. The vents go directly through an outside wall, and can also bring in combustion air to the gas burner. Most of these units require zero-clearance at the sides and rear, which allows them to be installed in a small area.

Related Question Answers

Does a gas water heater need to be vented?

All water heaters that burn natural gas or liquid propane (LP) gas require a venting system. The water heater's ventilation system removes these byproducts from the home, making it a critical safety feature. In most cases, the type of ventilation system depends on the type of water heater.

Can you put a power vent on a regular water heater?

Natural gas or propane hot water heaters are generally less expensive to operate than electric heaters, but installing a standard vent in a house without an existing chimney is expensive. It's easier to run the vent if you install a “power-vented” type of natural gas (or propane) water heater.

How do you remove a furnace vent pipe?

Access the furnace through the door on the furnace closet. Loosen the clamp where the lower end of the vent attaches to the furnace using the screwdriver or nut driver. Pull off the end of the pipe from the flange. Tap the pipe with the hammer, if necessary, to dislodge it and pull it off the flange.

Can you put two flues one chimney?

A single chimney can safely have multiple flues inside the chimney, each flue venting an appliance, fireplace, or other device, provided that the chimney was properly constructed, including the necessary spacing or sealant between the individual flues.

Can a wood stove and furnace same chimney?

A wood-fired heating appliance may be vented into the same chimney flue as an oil-fired heating appliance provided that they are on the same floor - in some jurisdictions. More common, the wood fire might be burning down low and no longer providing enough heat, requiring the oil burner to turn on.

How do you size a flue pipe?

The Right Size Flue Pipe Measure the hole where the furnace vents. The pipe you purchase should match the inside diameter of the hole. It can be larger but must never be smaller or leaks will result. The average stove and furnace today requires a 3 inch diameter pipe, but can go as large as 8 inches.

What is a Category 1 furnace?

Gas appliances are divided into four venting categories based on vent operating pressure and whether they are condensing or non-condensing. Category I is negative pressure, non-condensing. Category II is negative pressure, condensing. Category III is positive pressure, non-condensing.

Does the furnace affect the water heater?

Indirect water heaters can be powered by gas, electric, oil, or propane, and operate like direct water heaters. However, instead of having a heating mechanism inside the tank, it uses the heat from your furnace or boiler. Your furnace or boiler will have a pipe attached to the water heater.

How do you vent a furnace through a wall?

Direct Venting uses a power ventilating blower or fan (and in some models a heat exchanger plenum to cool outgoing gases passing through the building wall (sidewall direct exhaust) or roof or through an existing unused chimney through which a vent pipe is passed (vertical direct exhaust).

How do you exhaust a gas furnace?

The furnace uses an exhaust vent motor that pushes the exhaust gas through the vent pipe, creating a positive static pressure in the vent. The condensing furnace produces condensed exhaust gases that contain water and carbon dioxide, which together form carbonic acid that results in a corrosive condensate.

How far does a water heater have to be from a furnace?

An unobstructed working space not less than 30 inches wide and not less than 30 inches high shall be provided along the control side of the equipment when the door of the furnace room is open3" side and back and top with the total width of the enclosing space being at least 12" wider than the furnace.

What is a direct vent furnace?

What are direct vent heaters? Direct vent fireplaces and furnaces are heating systems that do not require exhaust chimneys in order to work. Conventional furnaces and fireplaces must draw air into them from inside a home and then exhaust the fumes to the outside.

Do you need a chimney for a gas furnace?

Most homeowners are aware of the need for chimney cleaning and inspection if they own a wood-burning stove or regularly use their fireplace. But many don't realize that a gas heating appliance – whether it is a furnace, boiler or even a water heater – relies on the chimney for proper venting of the exhaust.

How do you vent a gas tank?

How to Properly Vent a Gas Tank

1. Elevate the back end of the car by using a jack and jack stands.
2. Use the hand vacuum gauge to test that the canister is still sealed tightly.
3. Replace the charcoal canister if any damage is located during the inspection.

Do hot water heaters need fresh air?

The air that your gas furnace (and water heater, and boiler) needs in order to burn safely is called combustion air. If your furnace has two PVC pipes going to the outside, then one of those pipes is taking the flue gases out and one is bringing fresh air in for combustion.

Why are direct vent water heaters so expensive?

When using a direct vent water heater, water is heated by the heat of fuel combustion. A direct vent system typically results in lower water heating costs, because the exhaust gases are vented vertically, with no extra power required as is the case with the power vent water heater.

Can you get carbon monoxide poisoning from a hot water heater?

A gas water heater that has been neglected, improperly installed or poorly vented could leak carbon monoxide, which can be downright deadly. Headache, dizziness, weakness and upset stomach are the most common signs of carbon monoxide poisoning.

Can you vent a gas hot water heater with PVC?

PVC is fine. As Jason mentioned, plastic (PVC or ABS) is ok to use as a venting material on powervented hot water heaters. They work by sending a huge amount of air in with the flue gases that it decreases the temperature of the exhaust going through the vent enough that it will not comprimise the vent.

Is gas water heater exhaust dangerous?

Gas fired water heaters may not produce any visible smoke, however it will produce lots of fumes. If the fumes are allowed back into the room then this can create carbon monoxide which will be very dangerous.
