Can you use PVC for air line?

The use of PVC pipe is common but NOT RECOMMENDED for use with compressed air. However, as with many plastics, PVC gets brittle over time and can crack, break, or even shatter. The presence of air compressor oils in the line and heat from the compressed air accelerates the degradation of PVC.

.

Also, can you use PEX for air lines?

PEX is designed for liquids and shouldn't be used for air lines. The tubing is "likely" ok, but the fittings are not, AFAIK. There is a similar product out there, however, that is designed for air.

Similarly, can you use Schedule 40 PVC for airlines? PVC is not rated for compressed gases. It is rated for liquids under pressure only. Using PVC for compressed air whether schedule 40 or 80 is used is very dangerous.

what type of pipe is used for compressed air?

Black pipe is the most commonly used pipe recommended for compressed air systems. It is readily available, it is strong and durable and most people are familiar with how to install it.

Are sharkbite fittings good for air?

Sharkbite fittings are rated to 200 PSI. Sharkbite should be air tight - It is water tight.

Related Question Answers

Will PEX hold air pressure?

PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing).

Does PEX need insulation?

Pipe insulation is a prudent step to take. Not only does insulation promote energy efficiency, but it can also reduce potential problems with moisture and condensation. That's because PEX pipes—basically a type of plastic—are physically different from other common piping materials.

What PSI is PEX piping rated for?

160 psi

Is PEX measured by ID or OD?

PEX tubing sizes are denoted by CTS (copper tubing size), not OD (Outside Diameter) or ID (Inside Diameter). OD of PEX, copper and CPVC pipe with the same size (CTS) is the same. This is why push fittings can be used with all of these pipes.

How much psi can a PVC pipe hold?

Most consumer air compressors compress air to 125-175 psi, which does not sound like much. Most smaller sizes of PVC pipe are rated for between 300-600 psi, but that is only if the pipes are new and the system is perfectly sealed. As we mentioned before, it is extremely difficult to make a PVC system airtight.

Does PVC shatter?

PVC pipe is a popular construction material for its low cost and durability. PVC pipe can be used for most any drain, water, or ventilation application. PVC can become brittle and crack when placed in a few scenarios for prolonged periods of time. PVC pipe has found uses in everything from duct work to sink drains.

Are PVC ball valves airtight?

In short, it transports liquids in one direction. It is not recommended for gases, as the ball valve does not always create an airtight seal.

What PSI can schedule 40 PVC handle?

PVC Schedule 40 Pressure/DWV Pipe (drain, waste and vent)

Trade Size	Part Number	Pressure Rating (psi)
1/2	5405010P	600
3/4	5407510P	480
1	5410010P	450
1-1/4	5412510P	370

Can PVC hold pressure?

PVC pipe often gets a bad rap because it cannot handle as much pressure as various types of metal pipe. However, smaller sizes of PVC pipe, especially schedule 80, can handle plenty of pressure for most home and business uses. Unlike tensile strength, burst pressure decreases as pipe size increases.

Can you glue Schedule 40 and 80 PVC?

Because schedule 40 PVC and schedule 80 PVC pipe have the same outer diameter, you can use schedule 40 PVC fittings with schedule 80 PVC pipe and vice versa. If you're using the PVC pipe and fittings for industrial or chemical applications, you probably need to use schedule 80 PVC.

Can I use CPVC pipe for compressed air?

No, PVC and CPVC pipe should not be used for compressed air lines. Here is what the manufacture has to say about it. WARNING! The use of plastic piping with compressed air or gasses can result in severe bodily injury or death.

What is the difference between Schedule 40 and Schedule 80 PVC?

Schedule 40 and Schedule 80 pipes have the main difference of sizing and diameter. A schedule 80 pipe has a thicker wall even though its exterior diameter is similar to a schedule 40 pipe. Having the same outside diameter is possible because the extra thickness of a schedule 80 PVC is inside the pipe.

Can I use copper pipe for compressed air?

Copper pipe Copper piping is recommended for clean air and works well but is expensive. Soldering of joints and using compression fittings is time consuming and requires skill. Any water in the compressed air does not cause corrosion in copper therefore the air delivered is clean and free of particles.

What is pneumatic piping?

Pneumatic tubes (or capsule pipelines; also known as pneumatic tube transport or PTT) are systems that propel cylindrical containers through networks of tubes by compressed air or by partial vacuum. They are used for transporting solid objects, as opposed to conventional pipelines, which transport fluids.

What is an air pipe?

Air pipe. A pipe provided to equalize the tank pressure with the atmospheric one while the tank is being emptied or filled. Air pipes terminating on the open deck shall be fitted with approved air pipe heads.

What is black pipe?

Black pipes for gas transportation Black steel pipe refers to ordinary iron pipe and are mainly used for gas lines, it is also used to connect appliances to their supply lines. It is the pipe that is used by businesses and residential homes to convey their supply of natural or propane gas.

What is Schedule 80 PVC pipe rated for pressure?

PVC can operate at temperatures up to 140°F (60°C) Various Pressure ratings (120 PSI to 1230 PSI)

What is the pressure rating of Schedule 40 pipe?

Standard Wrought Steel Pipes - STD - Schedule 40

Pipe Dimension (inches)	Standard - STD - Sch. 40
	Bursting Pressure (psi)	Working Pressure (psi)
1/2	10380	1300
3/4	8610	1080
1	8090	1010

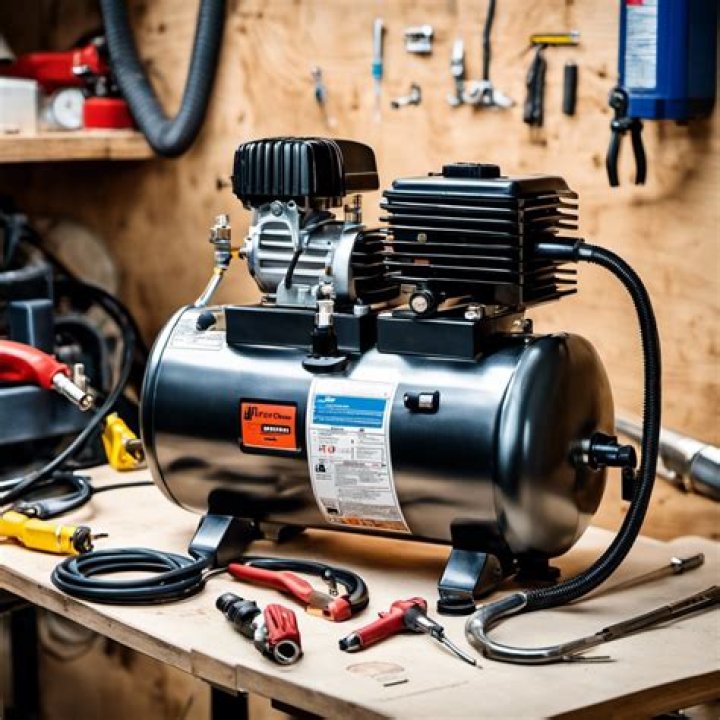

How do I set up an air compressor?

How to Install an Air Compressor in Your Garage

1. Select an area for the compressor to stand.
2. Determine how much room will be needed for work and tool applications.
3. Select sufficient hose lengths and fittings for the attachments.
4. Set the compressor on isolator pads to stabilize and lower noise from vibrations.
5. Power the compressor from a nearby outlet.
