Spot welding of very dissimilar metals, such as aluminum and steel, is generally not possible because of different melting characteristics and conductivities. Aluminum, tin, zinc and terne-coated steels are also spot weldable with special precautions and welding equipment..
Also know, how do you spot weld metal?

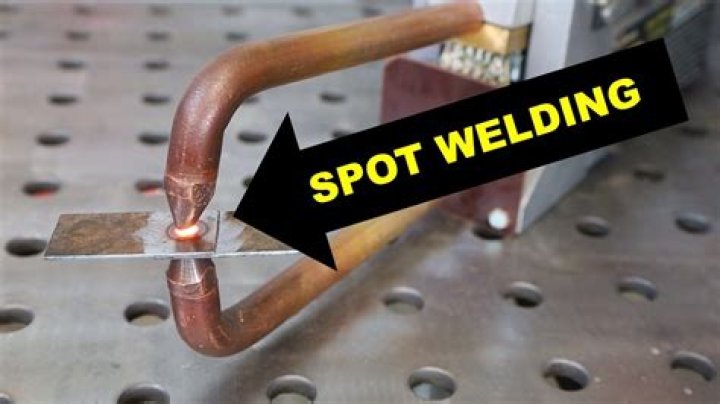

Spot welding involves three stages; the first of which involves the electrodes being brought to the surface of the metal and applying a slight amount of pressure. The current from the electrodes is then applied briefly after which the current is removed but the electrodes remain in place for the material to cool.
Furthermore, how thick of metal can you spot weld? 3 mm
Keeping this in consideration, can tin be welded?
Welding a tin can is not possible, but brazing it together will work. A tin can is either made from aluminum or steel with a tin coating (plating) on the outside. The metal is very thin and does not withstand the heat from welding. Brace tin cans together using a soldering iron and solder.
What materials can you spot weld?
Other materials commonly spot welded include stainless steels (in particular austenitic and ferritic grades), nickel alloys and titanium. Although aluminium has a thermal conductivity and electrical resistance close to that of copper, the melting point for aluminium is lower, which means welding is possible.
Related Question Answers
Can a spot welder shock you?
In spot welding current is very high but voltage is very low. So you don't get shock. In all other manual welding machine, power source is designed in a way by considering 70–80 v as their upper limit for safety consideration.Can you spot weld with an arc welder?
Re: Using a arc welder as a spot welder A cheap transformer type arc welder can be used to make a spot welder for steels. A capacitive discharge spotwelder is needed for nonferrous metals. The basic requirements for a spot welder are (1) heat, (2) pressure, and (3) time.Is spot welding hard?
Spot welding requires enough space to get the job completed the right way. It is very hard to complete in confined and small spaces.What is the difference between spot welding and projection welding?
Projection welding is actually a modification of spot welding, the pioneer resistance welding process. Projection welding is generally used for projects with thicker materials (around 0.035” and thicker). While it can be also used to join thinner metal pieces together, that tends to be a job left for spot welding.What is meant by spot welding?
Spot Welding. Simply defined, spot welding is "the welding of overlapping pieces of metal at small points by application of pressure and electric current." Spot Welding occurs in three stages: Electrodes seated in a weld head are brought to the surface of the parts to be joined and force (pressure) is applied.Does solder stick to tin?
4 Answers. Regular solder is a mixture of lead and tin, so chances are that, yeah it would stick to actual tin. Pure tin will melt at a higher temperature than solder, since the alloy has a lower melting point than any of the individual components, so the joint should actually be a solder joint and not a weld.Can you weld tin with a MIG welder?
Welding Process For instance, nickel and chrome-plated steels can be welded together without much trouble, but alloys involving aluminum, tin or zinc will pose more problems, even for MIG welding, and should only be mixed with like alloys.Can you solder aluminum cans?
Hold a piece of aluminum solder against the seam where the two cans meet, then touch the soldering iron onto the exact area where the solder meets the cans. This will cause the solder to melt and to adhere to the can.Can Aluminium be spot welded?
Spot welding is a process in which two metal surfaces are melted together to form a weld. Aluminum spot welding is becoming more common as aluminum replaces steel in many applications where weight is important, such as automobiles. Use three-phase electrical power to spot-weld aluminum.Can you spot weld stainless steel?
Spot welding is a popular way of joining two sheets of thin metal, such as stainless steel. The sheets are placed between the two welding electrodes, to which pressure is applied. Position the stainless steel sheets to be joined, between the electrodes.How many amps does a spot welder use?
Amperage needed for spot welding. I looked through my various buckets and found I have enough parts to make a 5 volt 5000 amp DC power supply. (5000 amps is short circuit, so 2.5V at 2500A across the metal is the maximum power delivery, so about 6kVA).How far apart should spot welds be?
It is recommended that distance between two spot welds should be a minimum of 10 times the material thickness.What is spot welder used for?
spot welding (or resistance spot welding) is a type of electric resistance welding used to weld various sheet metal products, through a process in which contacting metal surface points are joined by the heat obtained from resistance to electric current.How are the metals to be welded connected to each other in spot welding?
How are the metals to be welded connected to each other in spot welding? Explanation: In spot welding process, the metal or the alloy parts which are to be welded, are heated in their in their zones. To bring these parts in contact with one another, mechanical pressure is applied, causing them to connect.How thick can you spot weld?
Spot welding is primarily used for joining parts that are normally up to 3 mm in thickness. Thickness of the parts to be welded should be equal or the ratio of thickness should be less than 3:1. The strength of the joint depends on the number and size of the welds. Spot-weld diameters range from 3 mm to 12.5 mm.What is the principle of spot welding?
Spot welding machines are developed on a principle of when two surfaces join with pressure, the resistance to electric current produces heat then that heat with pressure at to the surface lead on to welding or joining.
