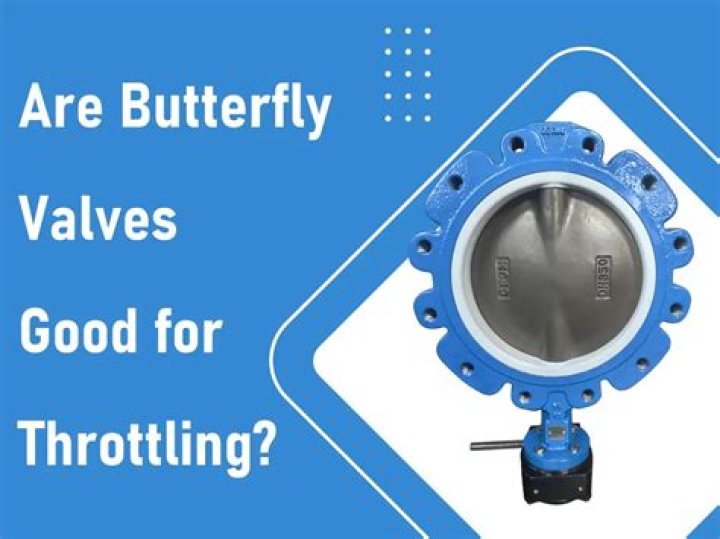

Are butterfly valves good for throttling?

Butterfly valves have minimal turbulence and pressure drop. They are good for on − off and throttling service and perform well when controlling large flow amounts of liquids and gases.

.

Moreover, can you use a butterfly valve for throttling?

BUTTERFLY VALVES They are generally used for handling large flows of gases or liquids, including slurries, but should not be used for throttling for extended periods of time. They are also very compact relative to flanged gate and ball valves.

Furthermore, what is butterfly valve used for? The Butterfly valve is used to regulate and control, throttle the flow. They are featured by a fast operation and low-pressure drop. To make an open position from the closed, it requires only a quarter turn. Wafer, lug, Single-Flange, Flange are the regular types of butterfly valves.

Also know, which valve is used for throttling?

globe valve

Is a butterfly valve An isolation valve?

There are many different valves that fall under the category of Isolation gate valves. In a rotary movement valve, the part that obstructs fluid flow rotates about an axis so it is perpendicular to the fluid when the valve is closed. Ball valves and butterfly valves are examples of rotary movement valves.

Related Question Answers

Which valve is best used for throttling?

Among the most common valves, the butterfly valve is the most suitable for throttling. A full quarter turn can open or close the valve.

Do Butterfly Valves have a flow direction?

The butterfly valves are bi-directional but do have a preferred flow direction. It's however strongly recommended to install the valves in the preferred flow direction, as it will extend the valve's life span and will also lower the operating torque.

Can you use a gate valve for throttling?

A gate valve can be used for throttling only when the valve is in an almost shut position, where most of the flow reduction occurs. Nevertheless, a gate valve is excellent for service that requires either full or no flow. It has essentially no flow restriction when fully open.

Do butterfly valves need gaskets?

Most butterfly valves do not require extra gaskets. All the butterfly valves available on pvcfittingsonline.com for example have built in seals that sit against your flanges and prevent leakage.

What is meant by throttling process?

A throttling process is defined as a process in which there is no change in enthalpy from state one to state two, h1 = h2; no work is done, W = 0; and the process is adiabatic, Q = 0. An example of a throttling process is an ideal gas flowing through a valve in mid position.

How can pressure and flow rate be controlled?

For every pressure, the pump will only deliver one specific flow rate. Therefore, to control the flow of a centrifugal pump, simply set the output pressure to the point on the P-V diagram that allows the pump to deliver the desired flow rate. The output pressure of the pump is set using a back pressure regulator.

What is a high recovery valve?

high recovery valve: A valve design that dissipates relatively little flow stream energy due to streamlined internal contours and minimal flow turbulence. Therefore, pressure down stretch of the valve vena contracta recovers to a high percentage of its inlet value.

Can globe valve be used for throttling?

Globe valves. Conventional Globe valves may be used for isolation and throttling services. Although these valves exhibit slightly higher pressure drops than straight=through valves (e.g., gate, plug, ball, etc.), they may be used where the pressure drop through the valve is not a controlling factor.

Does a flow control valve reduce pressure?

Acting as a pressure reducing valve, the compensator ensures that the main control orifice sees a constant pressure drop. When the pressure drop is constant, the flow remains constant. The amplifier provides time controlled opening and closing of the orifice.

What does a throttling device do?

Throttling device is the generic name of any device or process that simply dissipates pressure energy m ˙ p v by irreversibly converting it into thermal energy. Unlike nozzles and diffusers, throttling devices provide no form of useful energy recovery.

What are different types of valves?

Different types of valves are available: gate, globe, plug, ball, butterfly, check, diaphragm, pinch, pressure relief, control valves etc. Each of these types has a number of models, each with different features and functional capabilities.

How do you adjust a solenoid valve?

To change pres- sure setting, turn the adjusting screw clockwise to increase pressure, counter-clockwise to decrease pressure. There should be flow through valve during outlet pressure adjustments. When the desired setting has been made, tighten jam nut and replace cover.

What is the difference between a ball valve and a butterfly valve?

Generally speaking, a ball valve is a ball with a hole through it. A butterfly valve generally consists of a disk mounted on a rotating shaft. When using a ball valve, turning the valve handle moves the hole in the ball to either block, partially block or open the flow of gas or liquid through the valve.

How do you adjust a flow control valve?

Loosen, or unlock the adjustment retaining lock on a flow control valve. Use the required key for some locking valves. Turn the locking nut on others by hand or with an adjustable wrench. Turn flow control valves in the clockwise direction to reduce the flow going through.

What are the types of butterfly valves?

There are 3 main categories of butterfly valves: Rubber-lined, Plastic-lined, and Metal.

Welded

• Used for very-high-pressure applications.
• Because most plastic lined valves are limited to PN10/16 (150#) flanges, this type is rarely seen with plastic-lined valves.
• Garlock does not offer this type of valve.

How many types of check valves are there?

Three types of check valves are available to achieve this checking effect. A hinged disc assembly is suspended from the body to allow it to move freely.

Who invented the butterfly valve?

James Watt

Which valve is best for flow control?

Continue reading to learn more about each of these types of flow control valves and their functions.

1. Gate Valves. Gate valves are general service valves primarily used for on/off, non-throttling service.
2. Globe Valves.
3. Pinch Valves.
4. Diaphragm Valves.
5. Needle Valves.

What is a high performance butterfly valve?

What is A High Performance Butterfly Valve. High performance butterfly valves can be used for shutoff and throttling control. They are designed to handle everything from general applications to viscous and corrosive liquids; corrosive gases and steam.
